Gauges - Testing & Troubleshooting (Except Hybrid)
>>

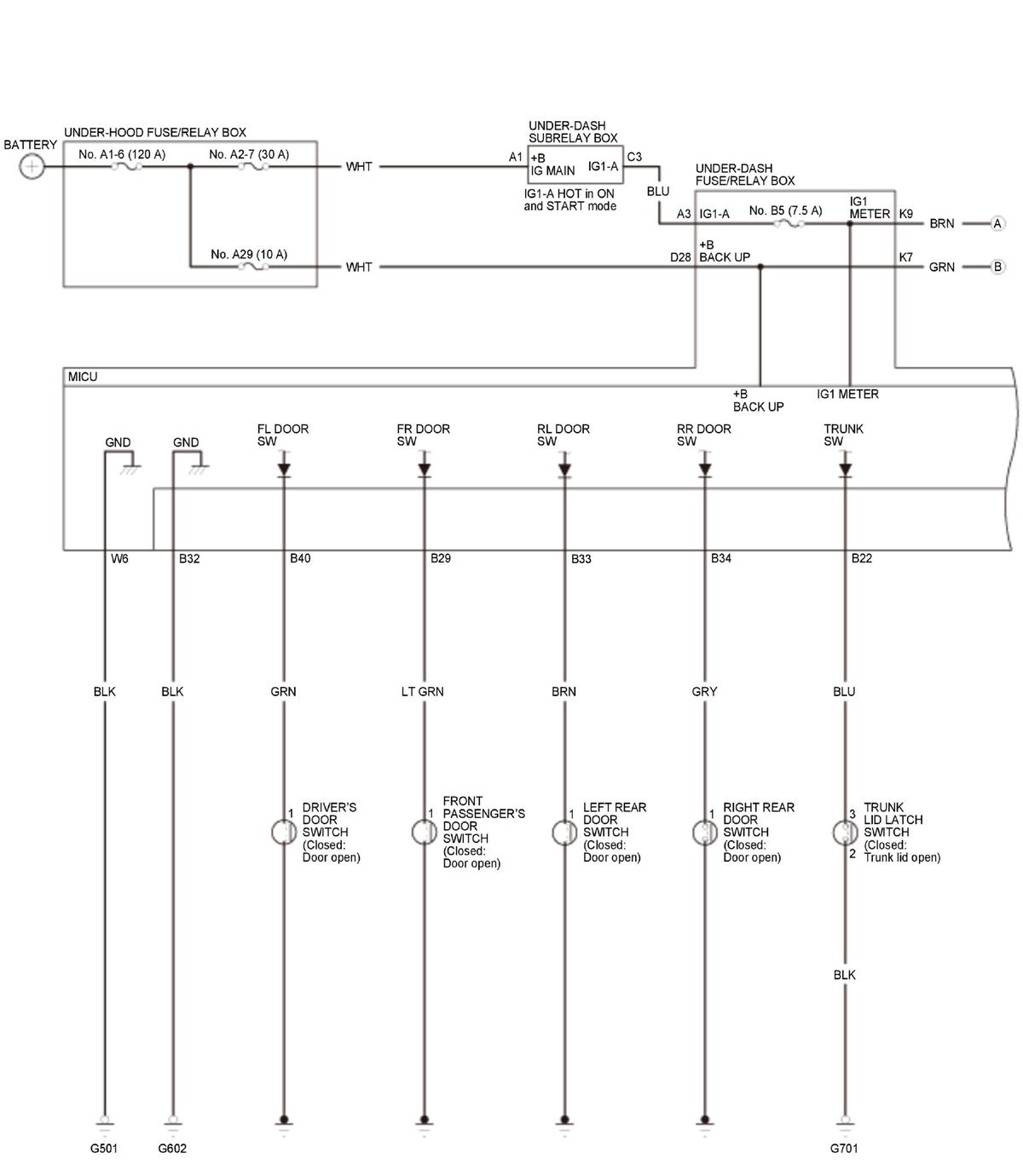

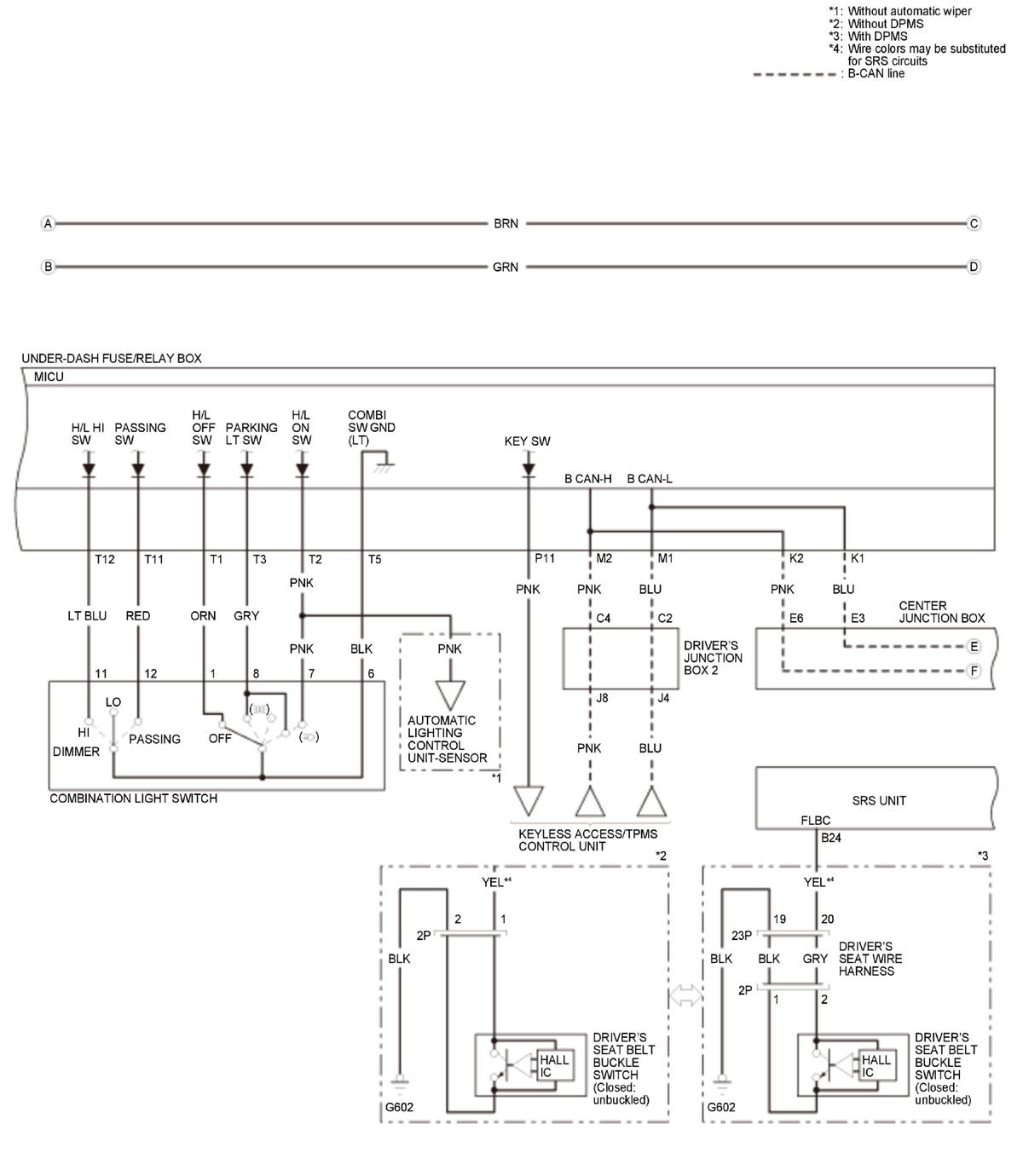

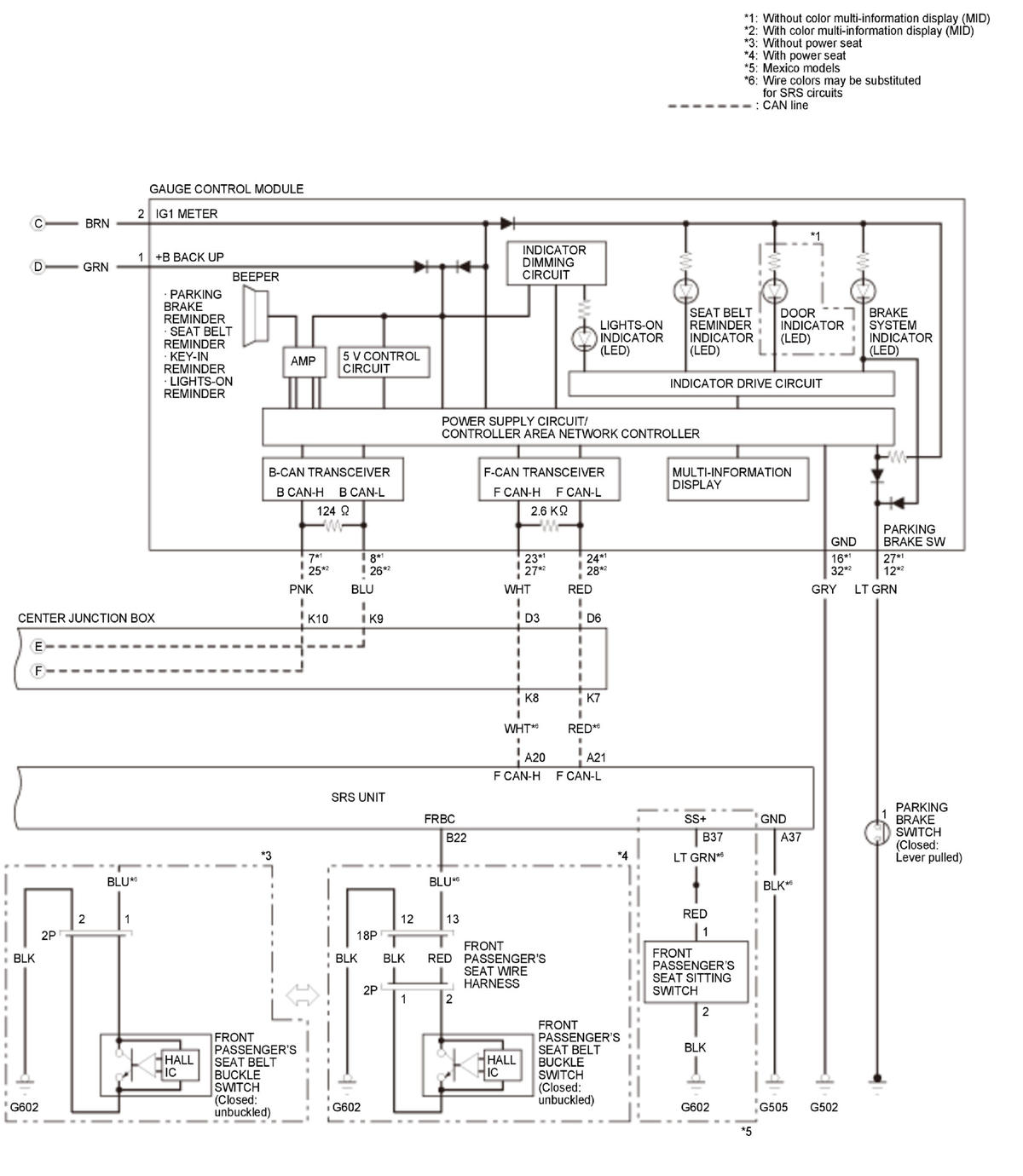

Circuit Diagram
>>
Reminder Systems (2016)
Reminder Systems (2016)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
