Select/Reset/Information Switch Removal and Installation: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Select/Reset/Information Switch - Install

   Courtesy of HONDA, U.S.A., INC.

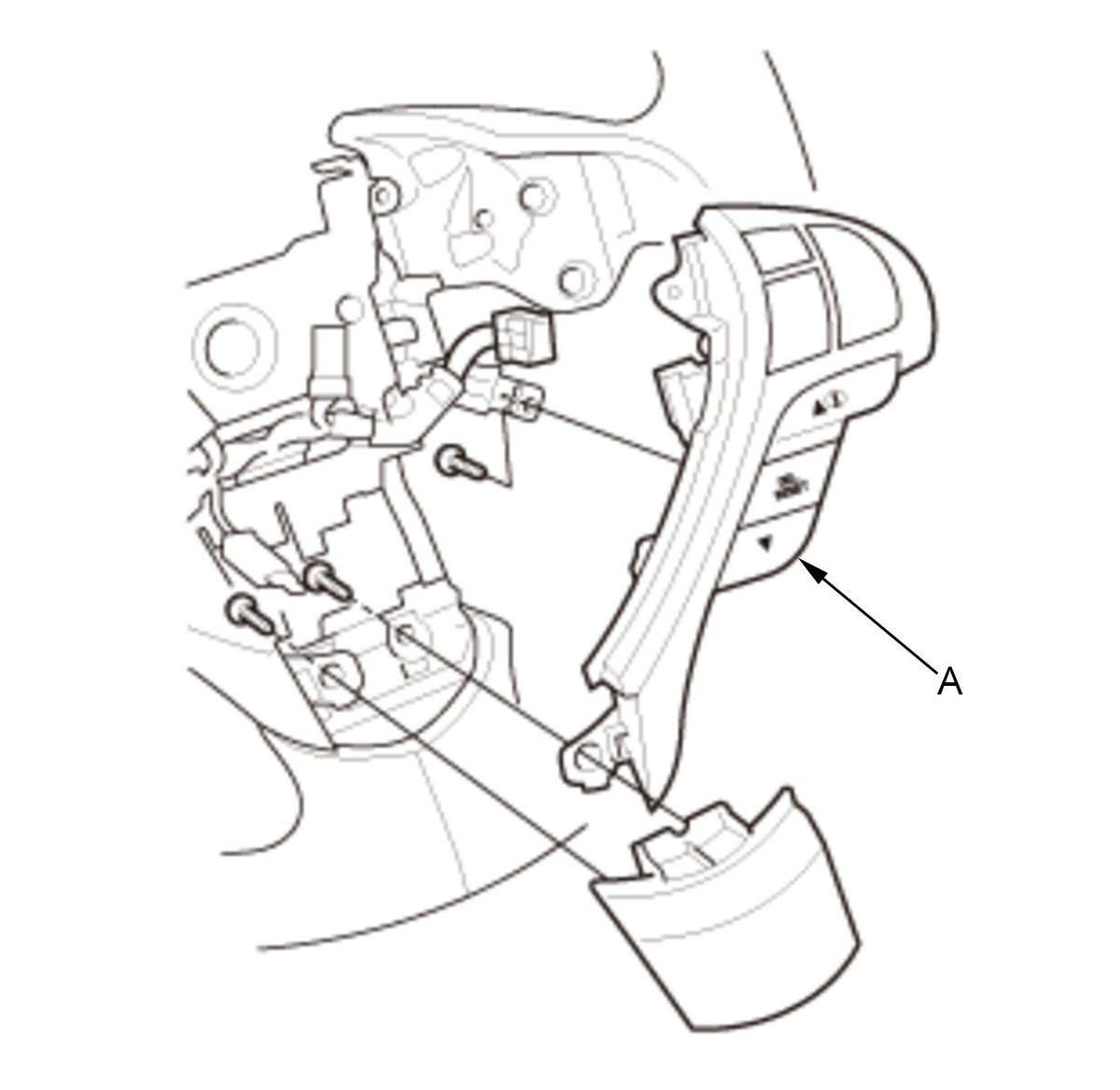

   1. Install the select/reset/information switch (A). 2. Connect the select/reset/information switch connector.

2. Paddle Shifter - Install

   1. Install the right side paddle shifter .

3. Steering Wheel - Install

   1. Install the steering wheel .
