Gauge Control Module Removal and Installation: Installation

NOTE:  After replacing the gauge control module, rewrite the ODO data to the gauge control module with the HDS .

1. Gauge Control Module - Install

   Courtesy of HONDA, U.S.A., INC.

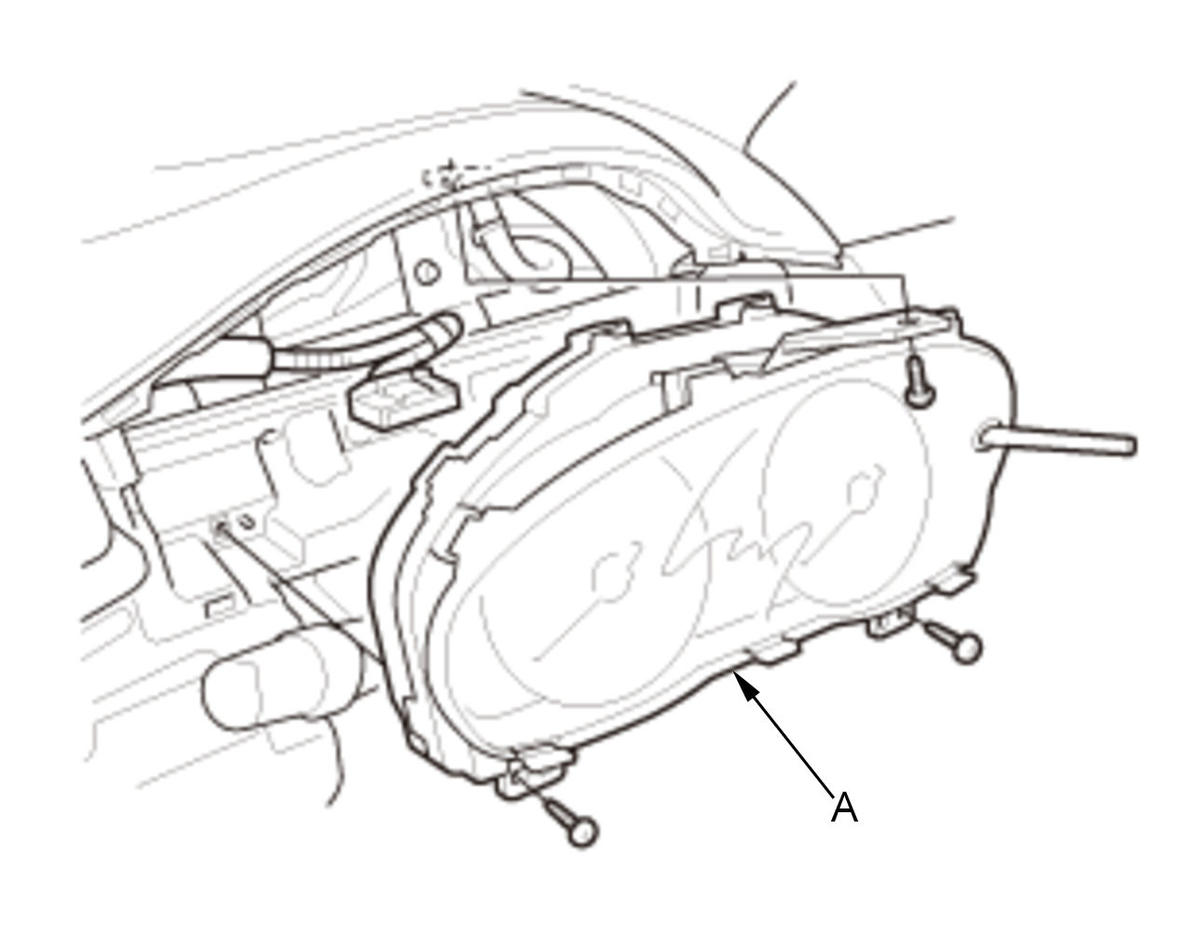

   1. Connect the gauge control module connector. 2. Install the gauge control module (A).

2. Dashboard Meter Visor - Install

   1. Install the dashboard meter visor .

3. Gauge Control Module - Rewrite

   1. Select WRITE DATA and following the instructions on the HDS display, install the ODO value and smart maintenance data onto a new gauge control module. If the data transfer fails, refer to the instructions below to release the locked ODO value .
