Circuit Diagram
>>

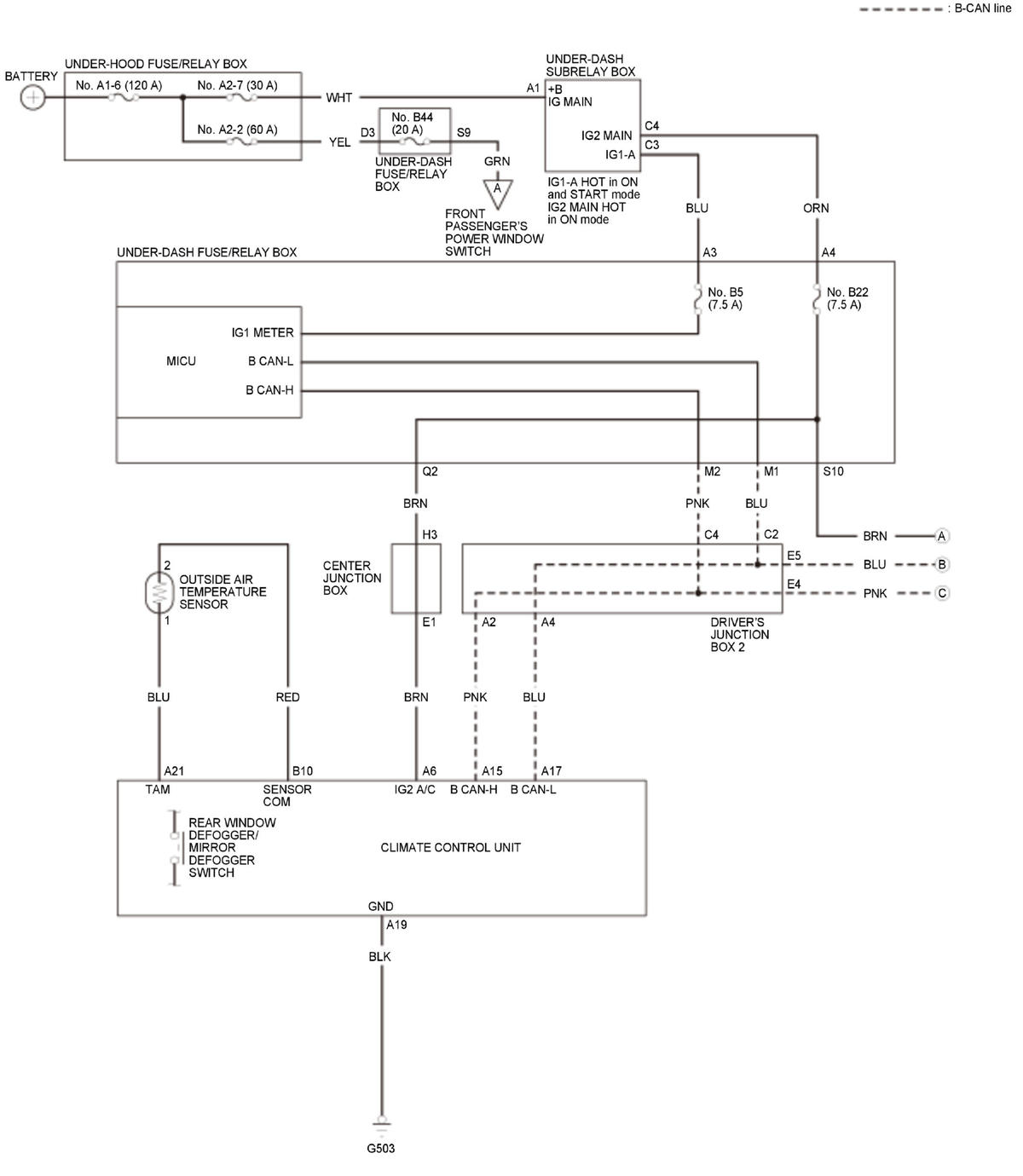

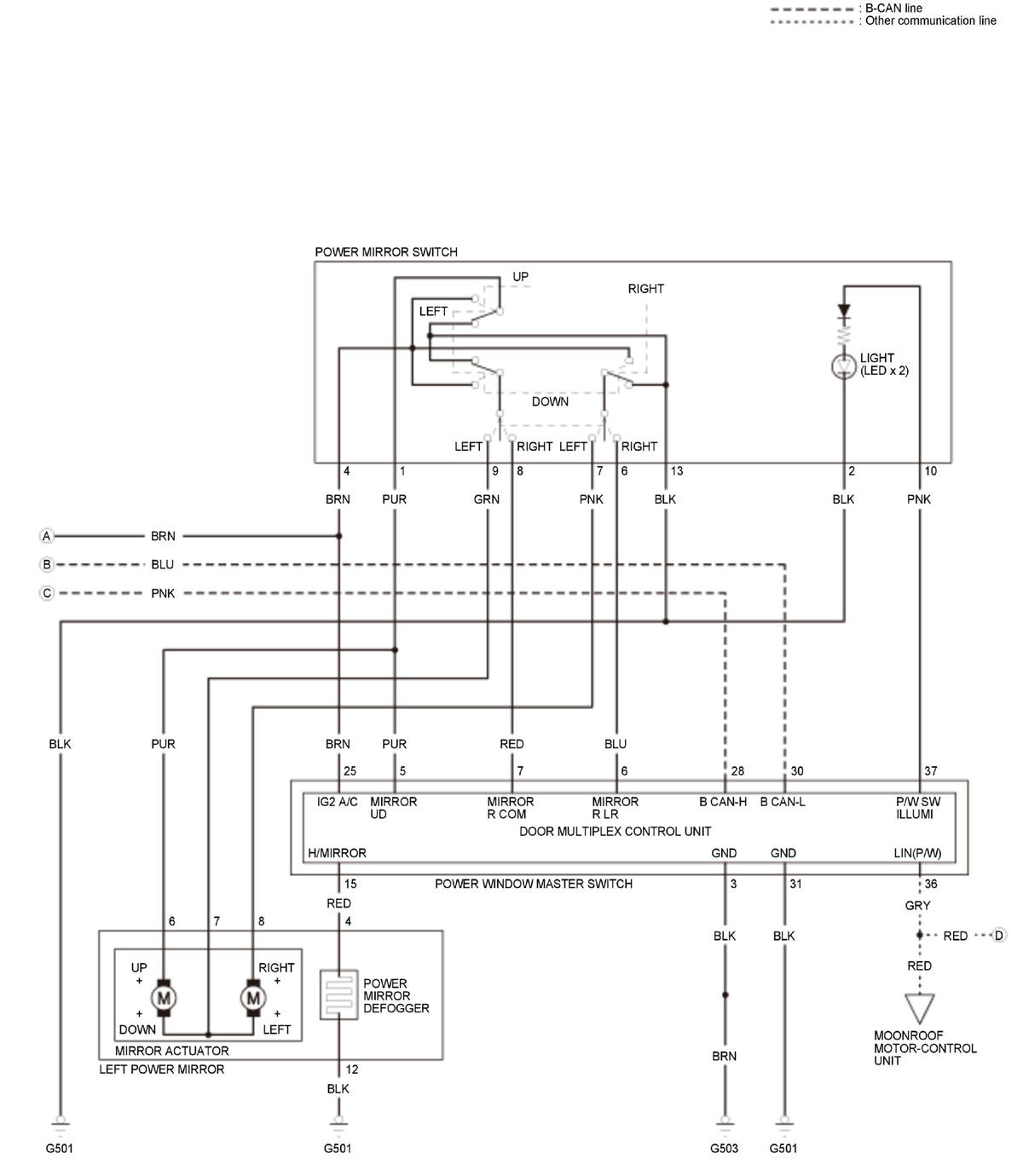

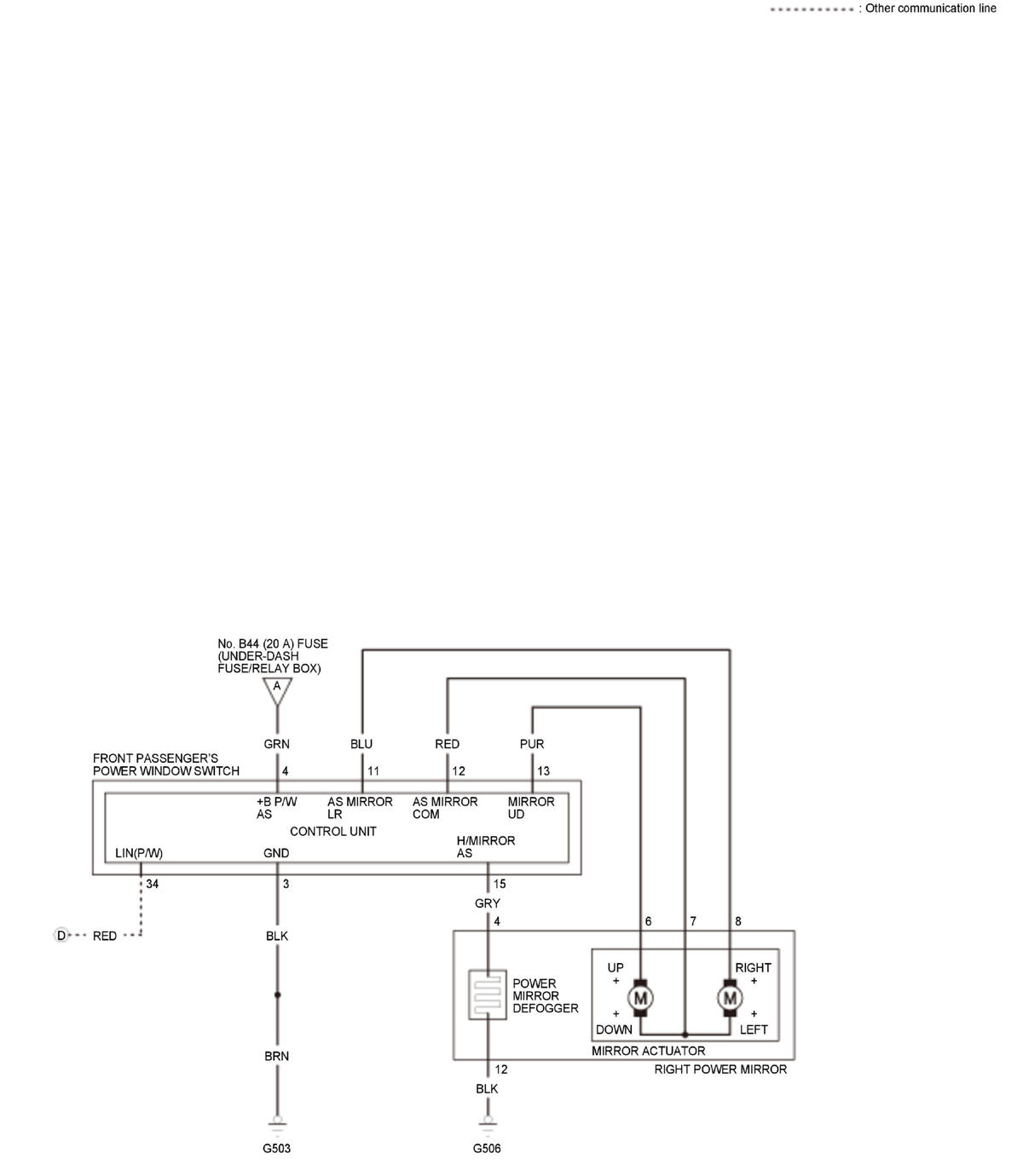

Power Mirrors (2016 2017 2018)
Power Mirrors (2016 2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
