Audio System - ODMD(TM) does not dim or brighten with dimmer(Without Navigation) (2016 2017 2018 2019 2020 2021 2022)

ODMD (TM) does not dim or brighten with dimmer

NOTE:

• Check the vehicle battery condition first .
• Check for B-CAN DTCs and resolve them before troubleshooting.
• Check the connectors for poor connections or loose terminals.

1. Problem verification

   -1. Press the engine start/stop button to select the ON mode.

   -2. Turn the combination light switch to the parking light position.

   -3. Rotate the dashlights brightness controller knob several times.

   Does the ODMD (TM) brightness change?

   YES

   Intermittent failure, the system is OK at this time.

   NO

   The failure is duplicated, go to step 2.

2. Determine possible failure area (interior lights circuit, others)

   -1. Check if several other buttons that are not related to the audio system are illuminated.

   Are the buttons illuminated?

   YES

   Go to step 3.

   NO

   Troubleshoot the interior lights circuit.

3. Determine possible failure area (audio unit, others)

   -1. Make sure the Sync Display Brightness in the System Settings is ON.

   -2. Rotate the dashlights brightness controller knob several times.

   Does the center display brightness change?

   YES

   Replace the audio unit .

   NO

   Go to step 4.

4. Open wire check (B-CAN_H line, B-CAN_L line)

   -1. Turn the combination light switch off.

   -2. Press the engine start/stop button to select the OFF mode.

   -3. Disconnect the following connectors.

   NOTE:  Eject the disc before disconnecting the audio unit to prevent damaging the CD player's load mechanism.

   Audio unit connector A (24P)

   Gauge control module 32P connector

   -4. Check for continuity between test points 1 and 2.

   Test condition	OFF mode
   	Audio unit connector A (24P): disconnected
   	Gauge control module 32P connector: disconnected

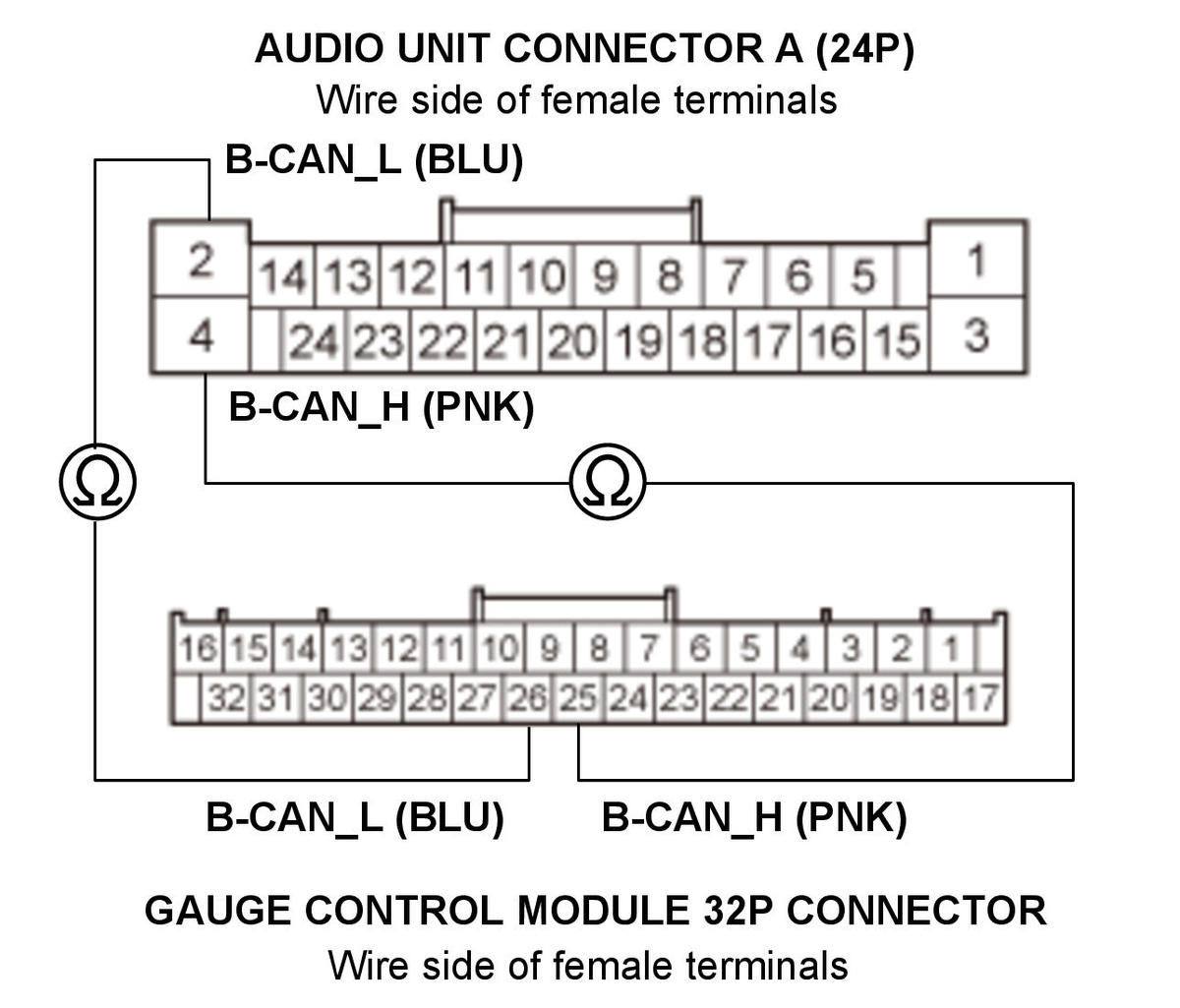

   With Color Multi-Information Display (MID)

   Test circuit	B-CAN_H
   Test point 1	Audio unit connector A (24P) No. 4 (PNK)
   Test point 2	Gauge control module 32P connector No. 25 (PNK)

   Test circuit	B-CAN_L
   Test point 1	Audio unit connector A (24P) No. 2 (BLU)
   Test point 2	Gauge control module 32P connector No. 26 (BLU)

   Courtesy of HONDA, U.S.A., INC.

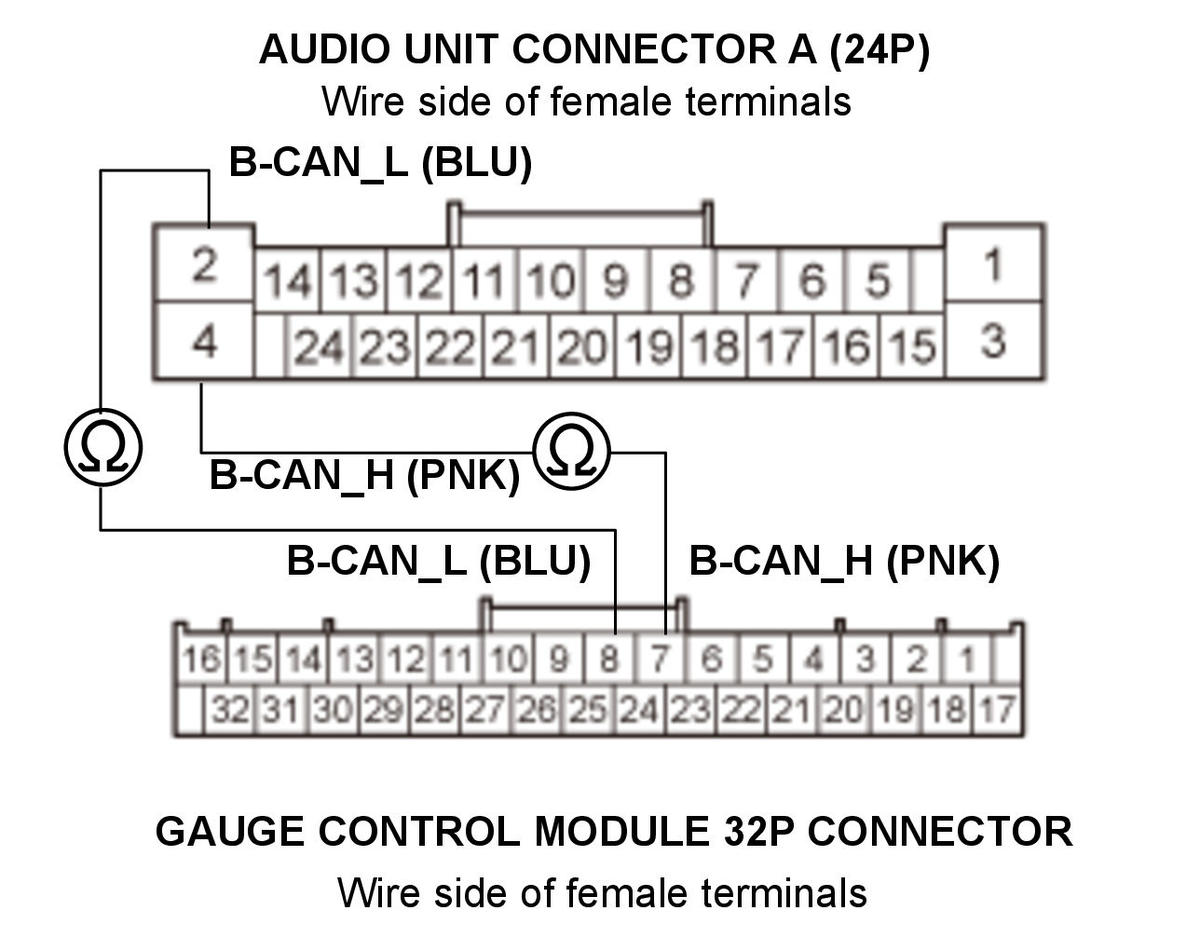

   Without Color Multi-Information Display (MID)

   Test circuit	B-CAN_H
   Test point 1	Audio unit connector A (24P) No. 4 (PNK)
   Test point 2	Gauge control module 32P connector No. 7 (PNK)

   Test circuit	B-CAN_L
   Test point 1	Audio unit connector A (24P) No. 2 (BLU)
   Test point 2	Gauge control module 32P connector No. 8 (BLU)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the audio unit .

   NO

   Repair an open in the wire(s) between the audio unit and the gauge control module.
