Audio System - Audio power switch will not turn on (No information display and no sound) (Without Navigation) (2013 2014 2015)

Audio power switch will not turn on (No information display and no sound)

NOTE:

• Check the vehicle battery condition first .
• Check the connectors for poor connections or loose terminals.

1. Problem verification

   -1. Press the engine start/stop button to select the ON mode.

   -2. Press the VOLUME/POWER knob on to see if the audio unit turns on.

   Does the audio system operate properly, and does the audio sound normal?

   YES

   Intermittent failure, the system is OK at this time.

   NO

   The failure is duplicated, go to step 2.

2. Fuse check

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Check the following fuses.

   Fuse	No. A29 (10 A)
   Location	Under-hood fuse/relay box

   Fuse	No. B19 (7.5 A)
   Location	Under-dash fuse/relay box

   Are the fuses OK?

   YES

   Go to step 3.

   NO

   Replace the fuse(s), and recheck. If the fuse(s) blows again, check for a short in the No. A29 (10 A) fuse and/or the No. B19 (7.5 A) fuse circuits.

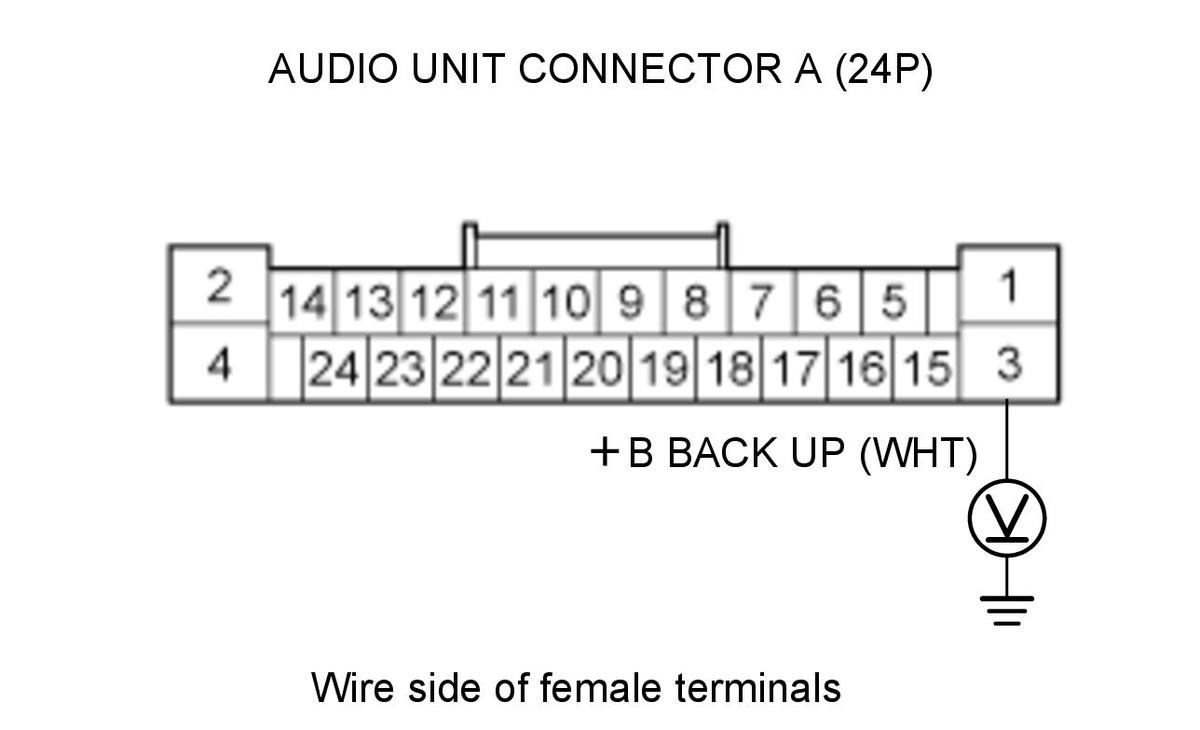

3. Open wire check (+B BACK UP line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	OFF mode
   Test circuit	+B BACK UP
   Test point 1	Audio unit connector A (24P) No. 3 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B BACK UP wire is OK. Go to step 4.

   NO

   Repair an open in the wire between the No. A29 (10 A) fuse in the under-hood fuse/relay box and the audio unit.

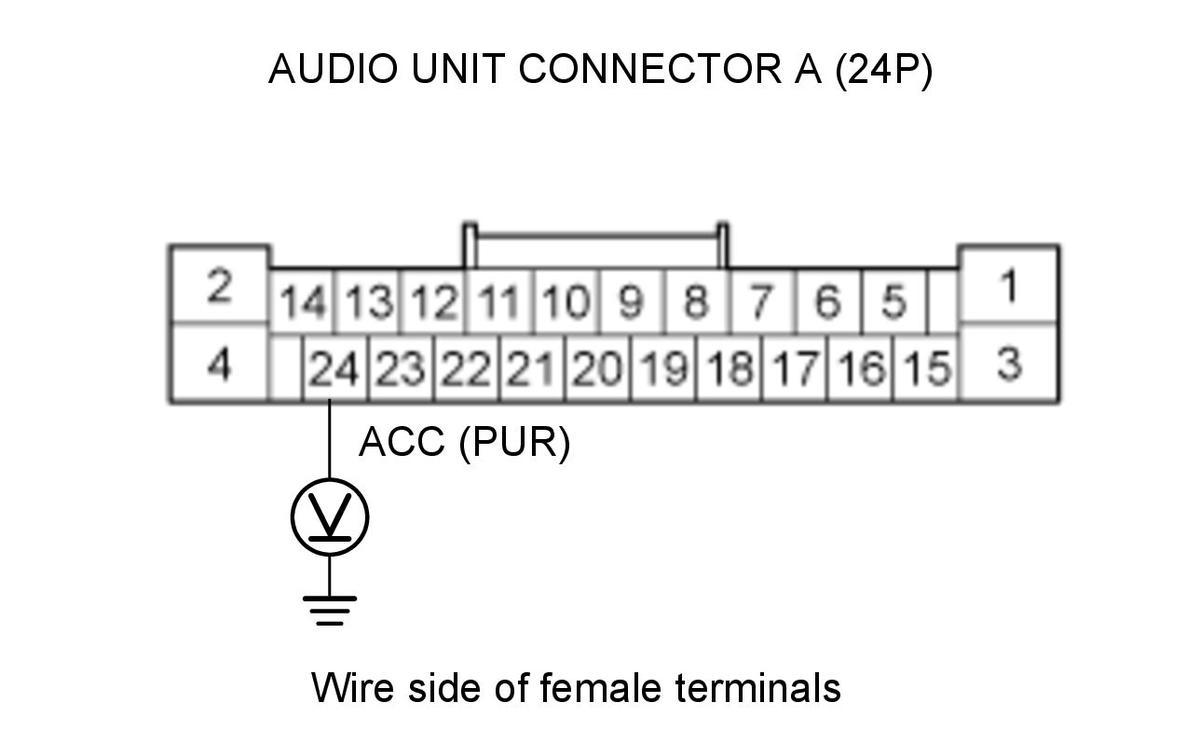

4. Open wire check (ACC line)

   -1. Press the engine start/stop button to select the ON mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   Test circuit	ACC
   Test point 1	Audio unit connector A (24P) No. 24 (PUR)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The ACC wire is OK. Go to step 5.

   NO

   Repair an open in the wire between the No. B19 (7.5 A) fuse in the under-dash fuse/relay box and the audio unit.

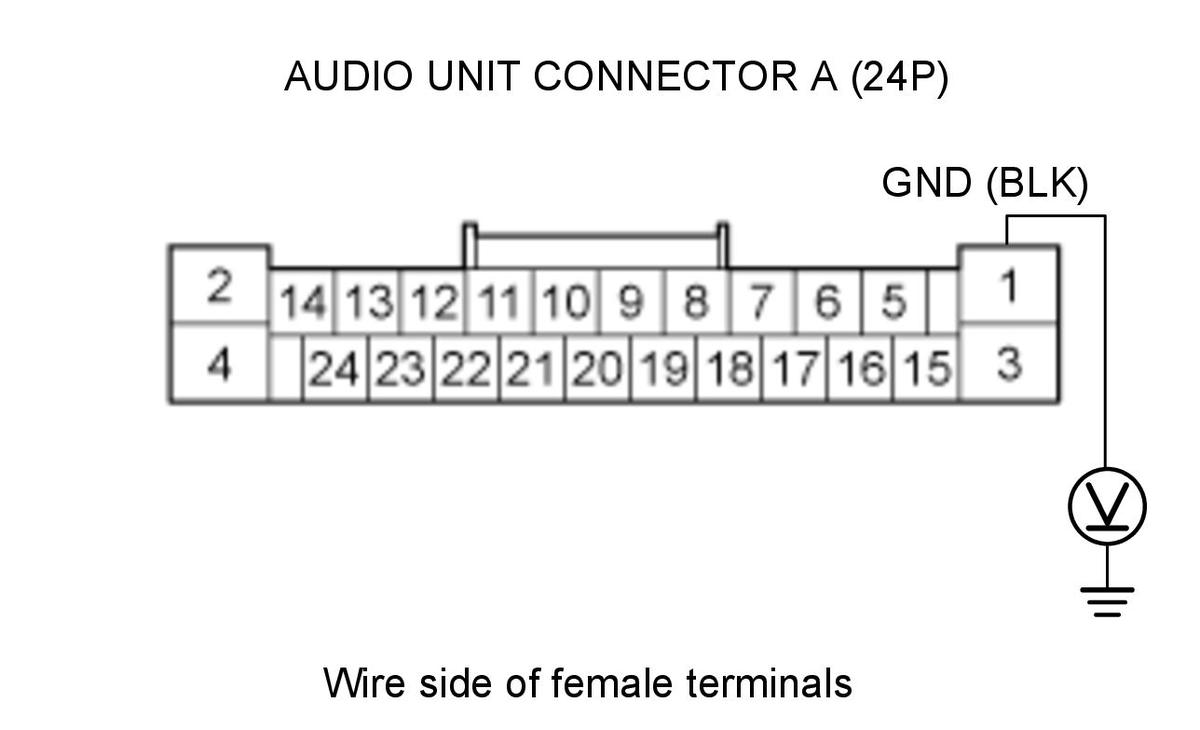

5. Open wire check (GND line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	ON mode
   Test circuit	GND
   Test point 1	Audio unit connector A (24P) No. 1 (BLK)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there less than 0.2 V?

   YES

   The GND wire is OK. Go to step 6.

   NO

   Repair an open or high resistance in the wire between the audio unit and body ground (G504).

6. Audio unit check

   -1. Press the engine start/stop button to select the OFF mode.

   -2. Substitute a known-good audio switch panel .

   -3. Reconnect all the connectors, and recheck.

   Does the symptom go away?

   YES

   Replace the original audio switch panel.

   NO

   Replace the audio unit .
