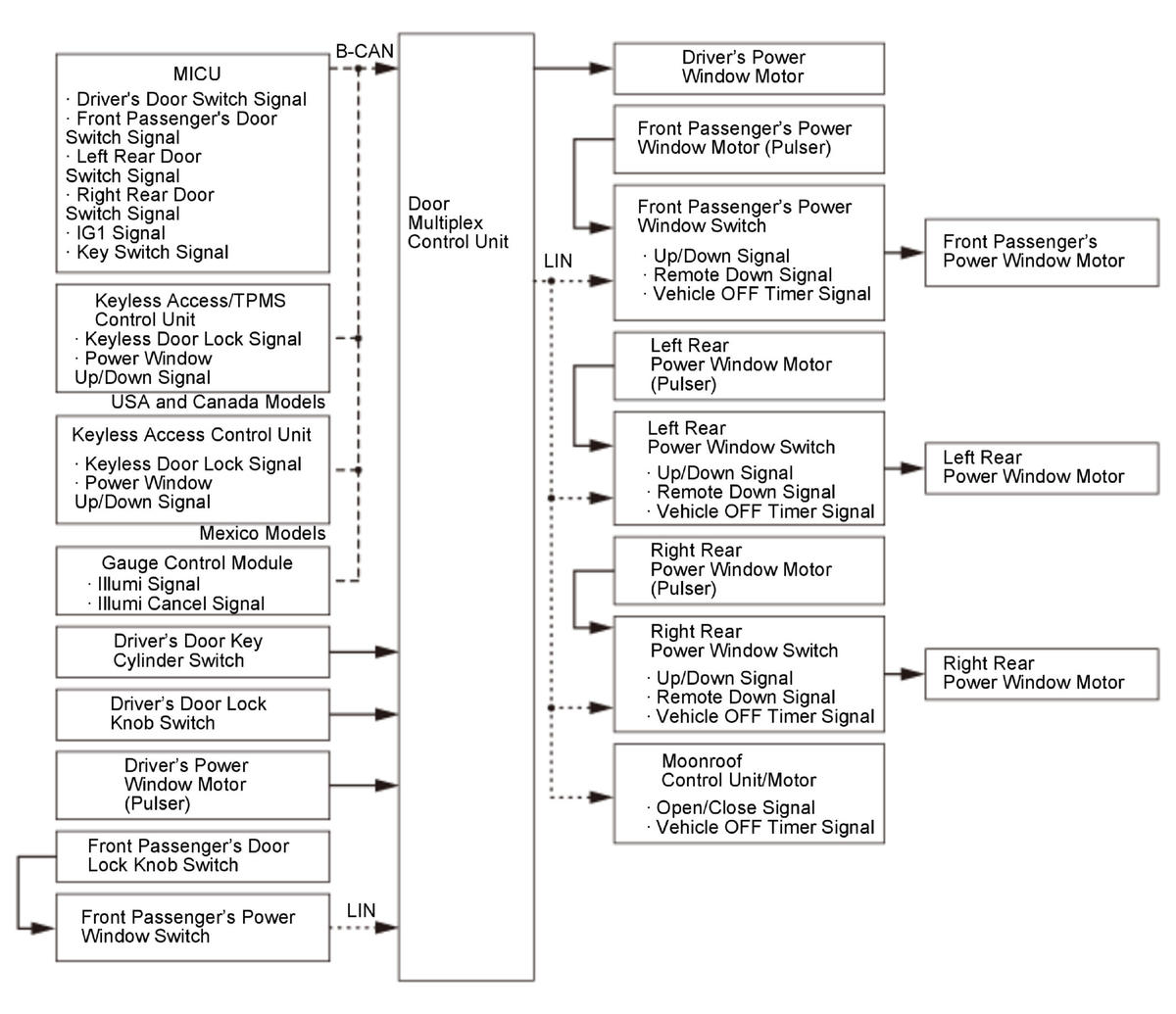

Power Windows System Description - System Diagram (2016 2017 2018 2019 2020)

GHH352713

Courtesy of HONDA, U.S.A., INC.
