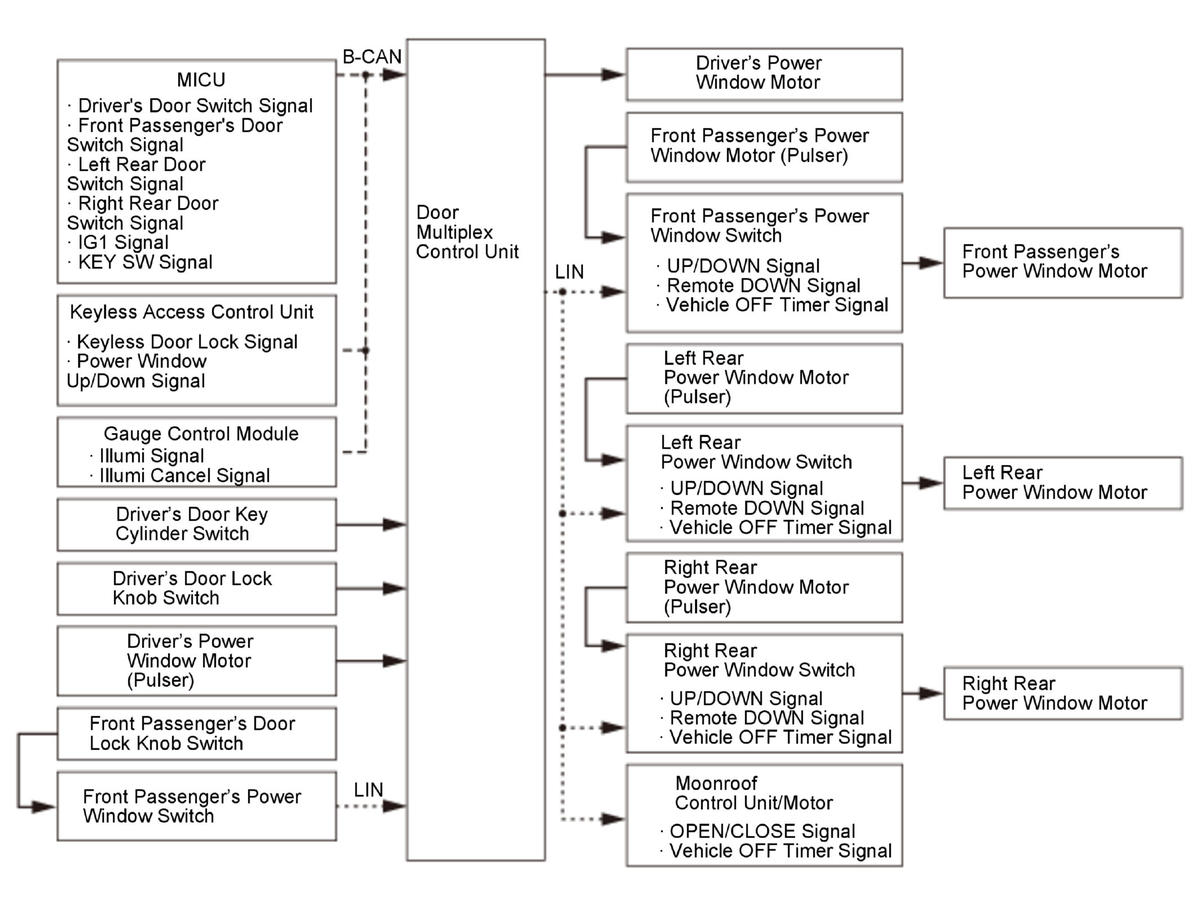

Power Windows System Description - System Diagram (2014 2015)

GHH352712

Courtesy of HONDA, U.S.A., INC.
