Power Windows Circuit Diagram (2018 2019 2020)

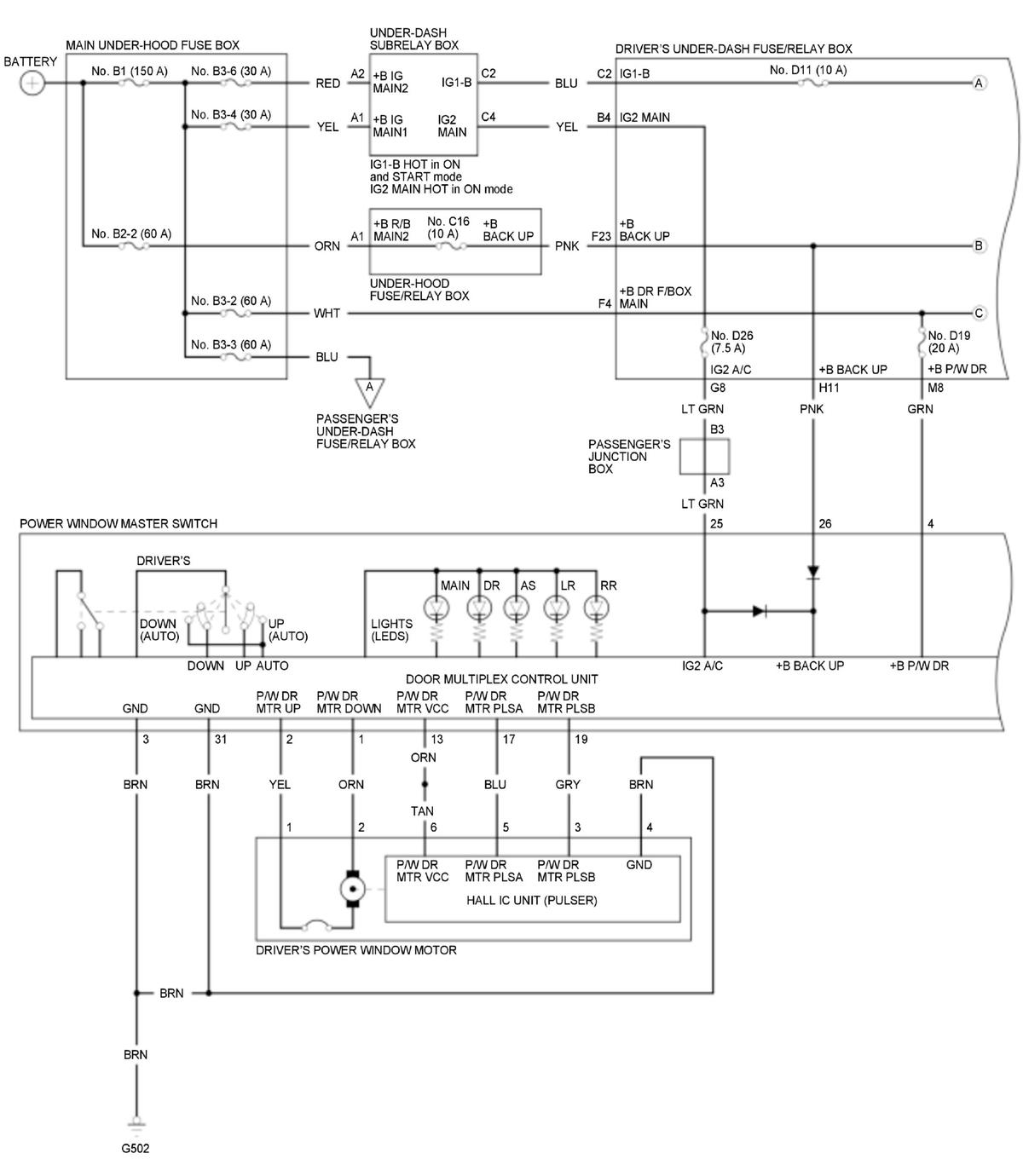

GHH352696

Courtesy of HONDA, U.S.A., INC.

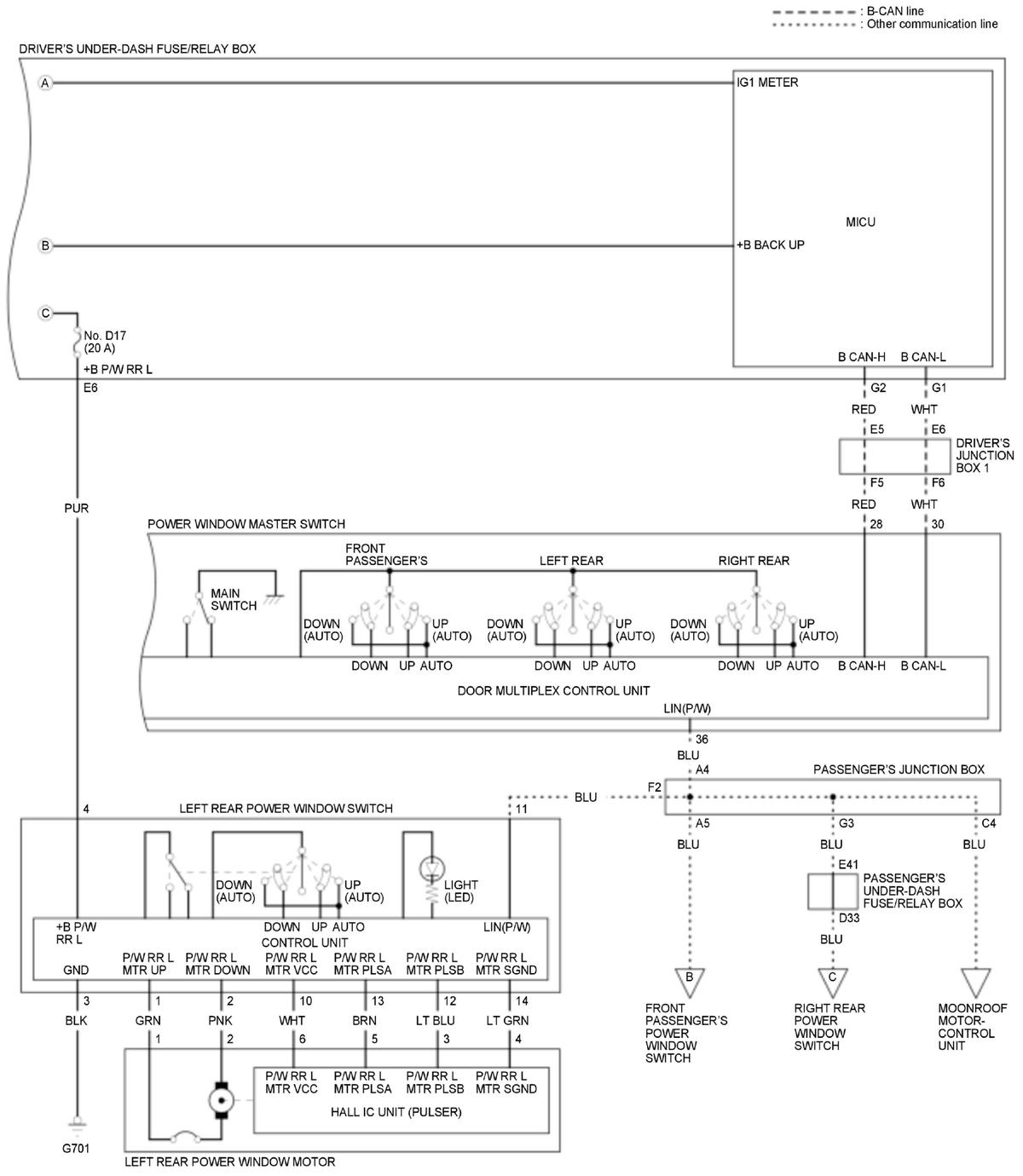

GHH352697

Courtesy of HONDA, U.S.A., INC.

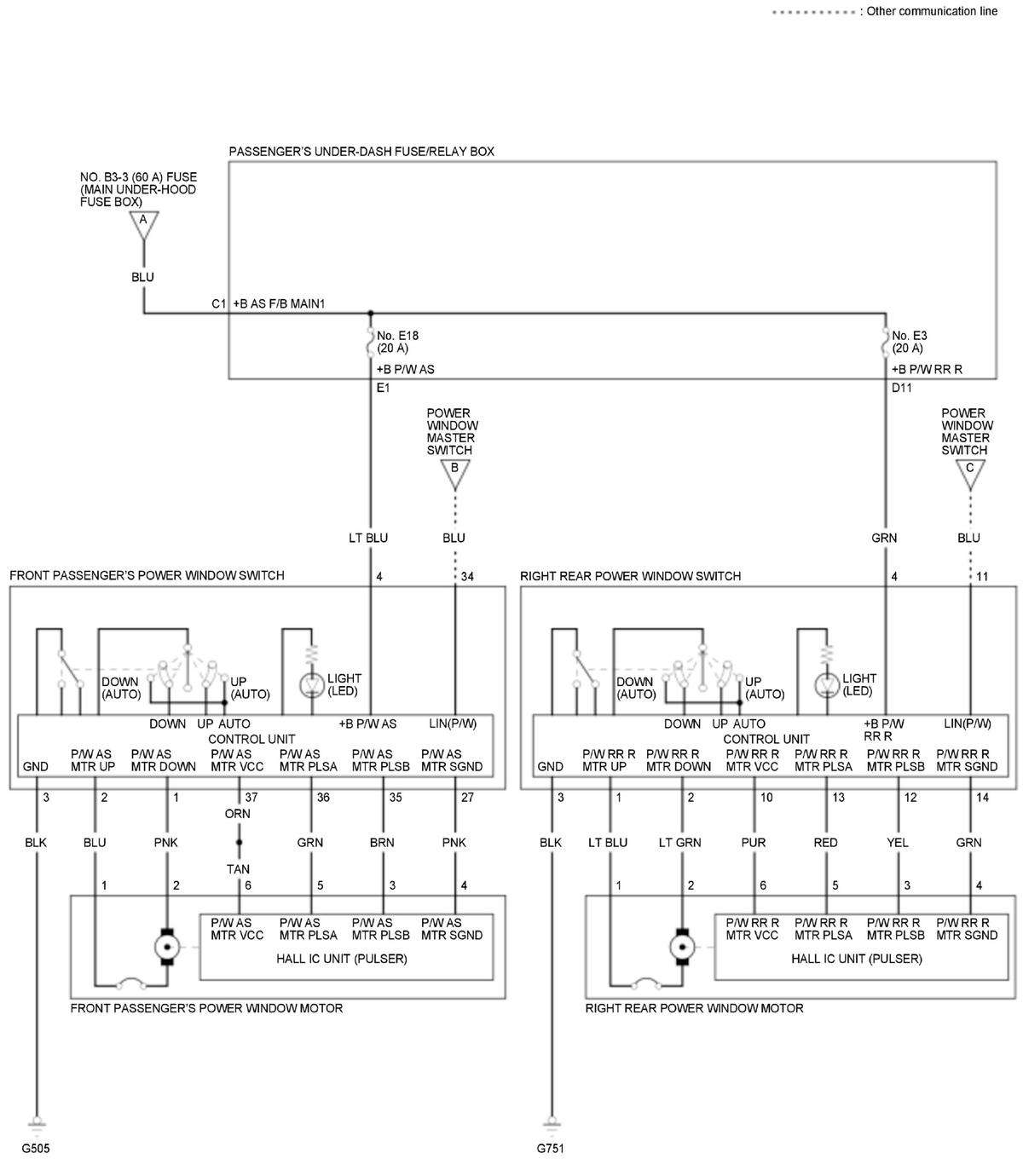

GHH352698

Courtesy of HONDA, U.S.A., INC.
