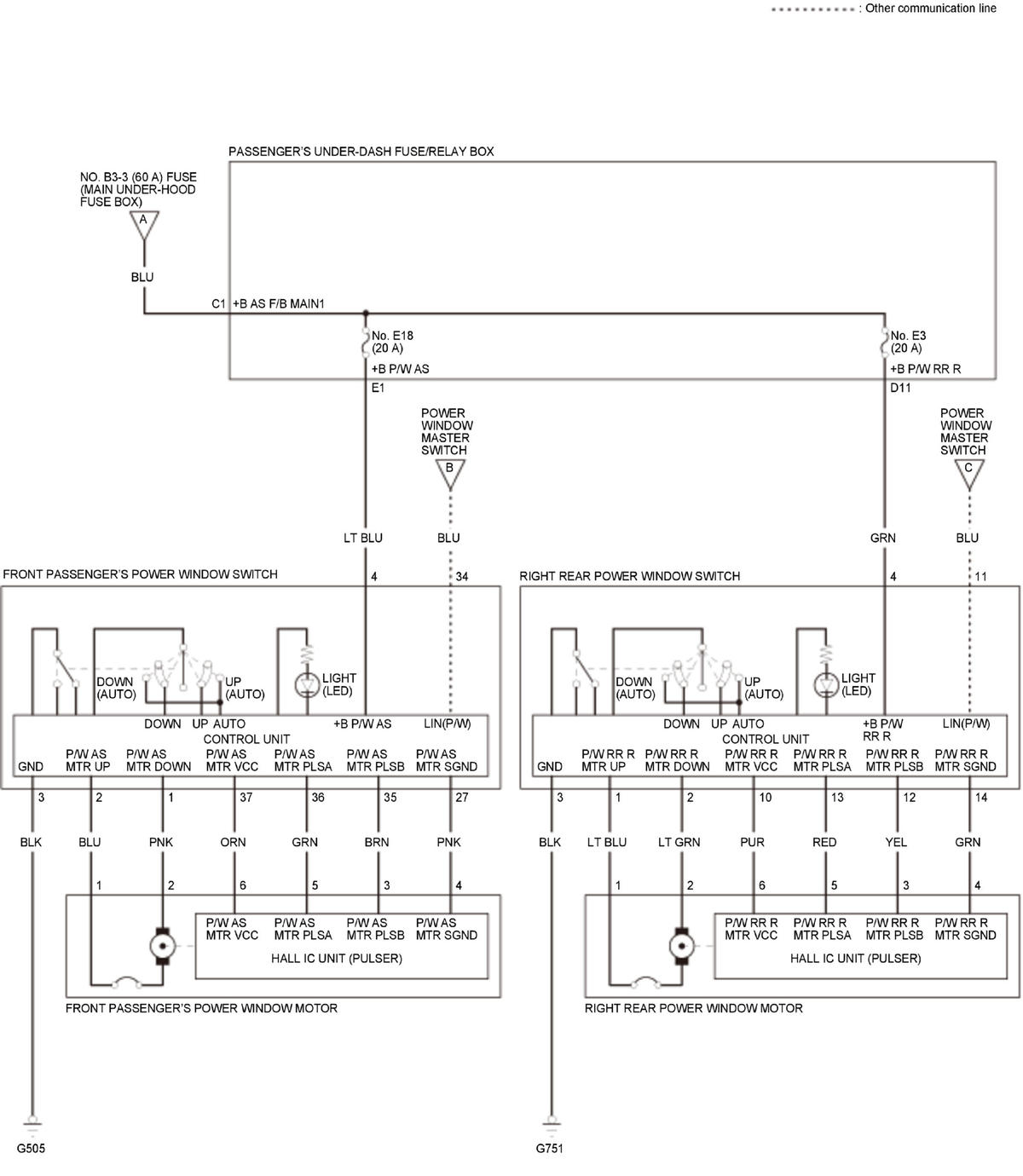

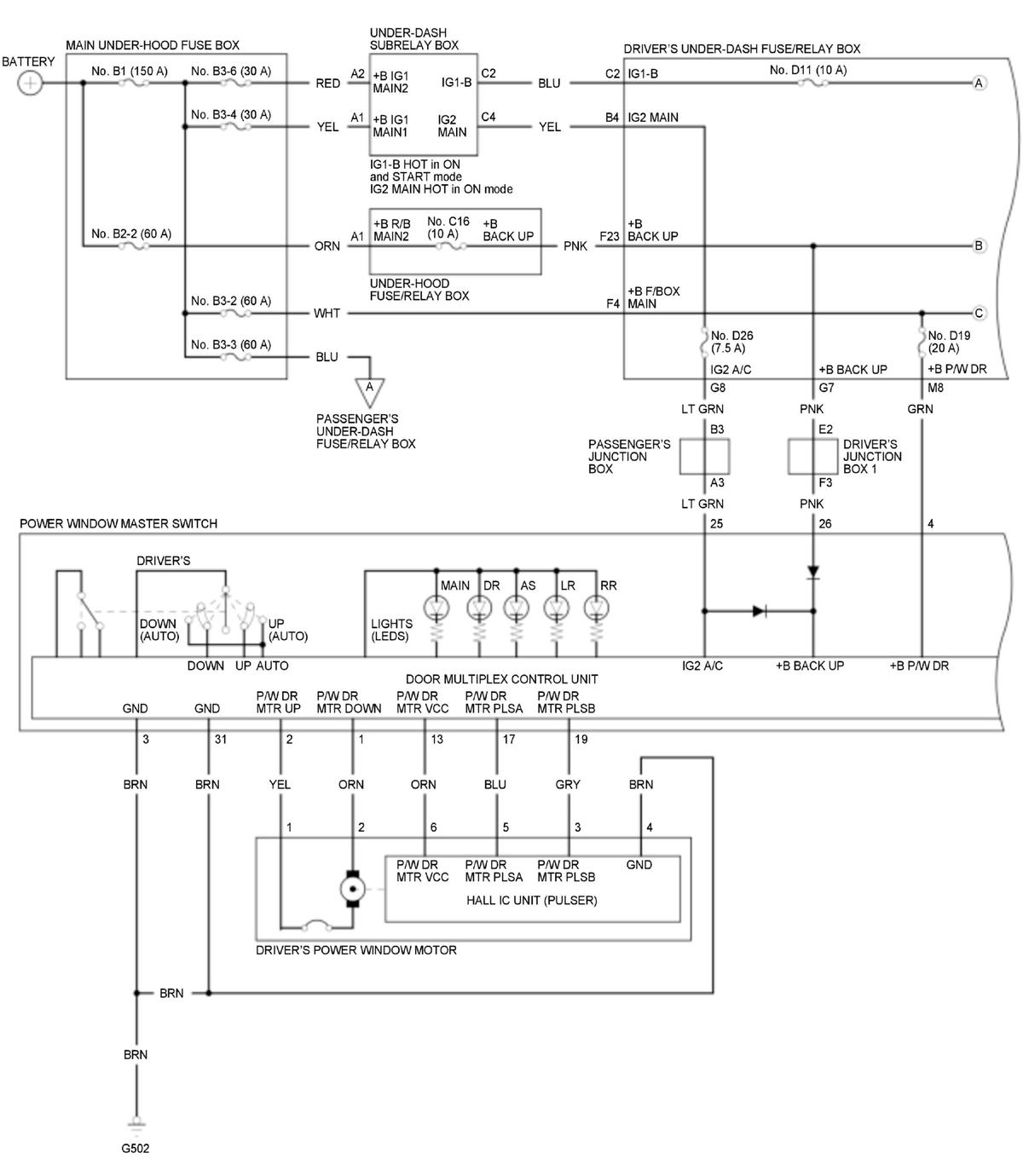

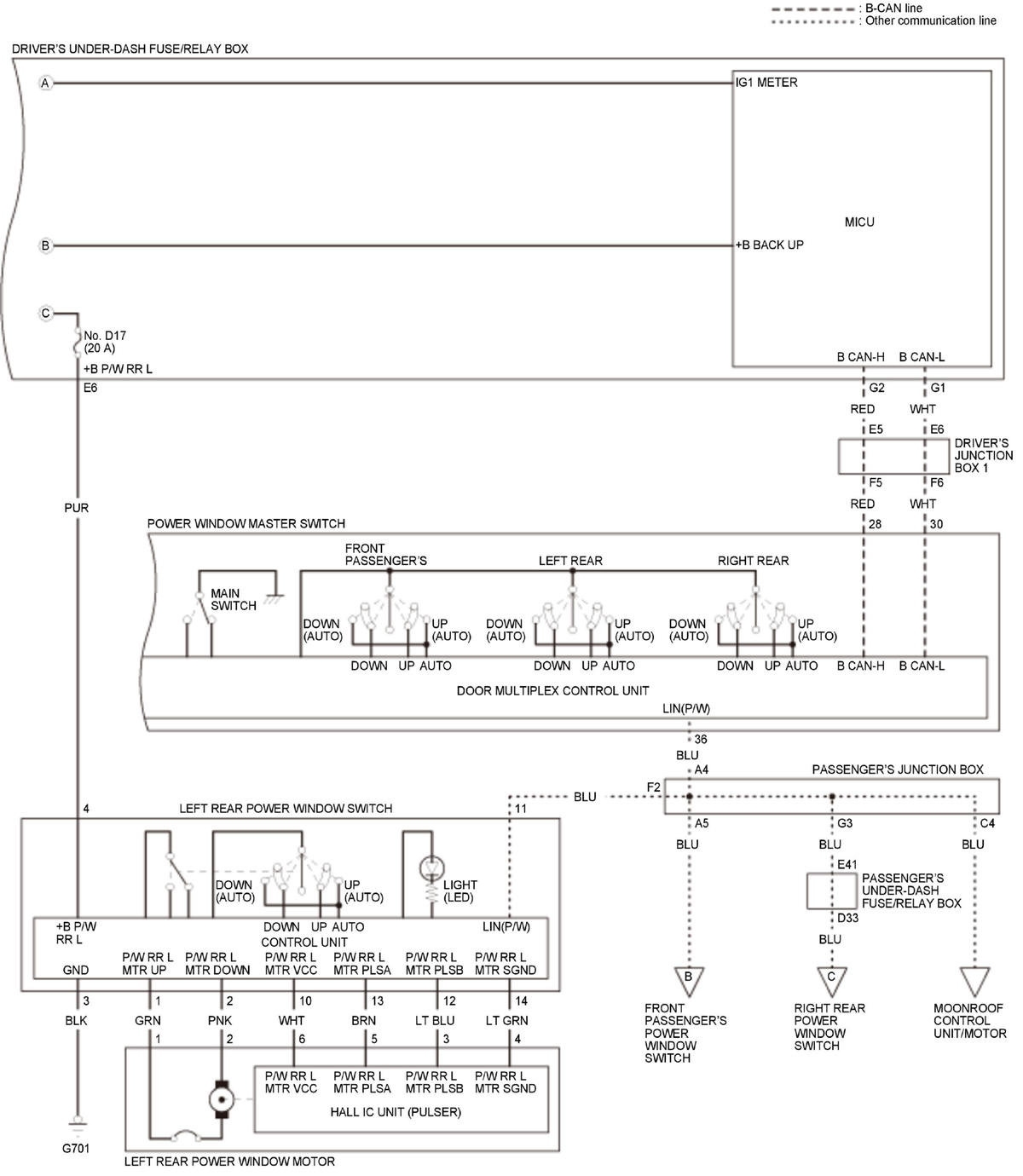

Power Windows Circuit Diagram (2014 2015 2016 2017)
Power Windows Circuit Diagram (2014 2015 2016 2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
