Wipers/Washers Component Location Index (2016 2017 2018 2019 2020)

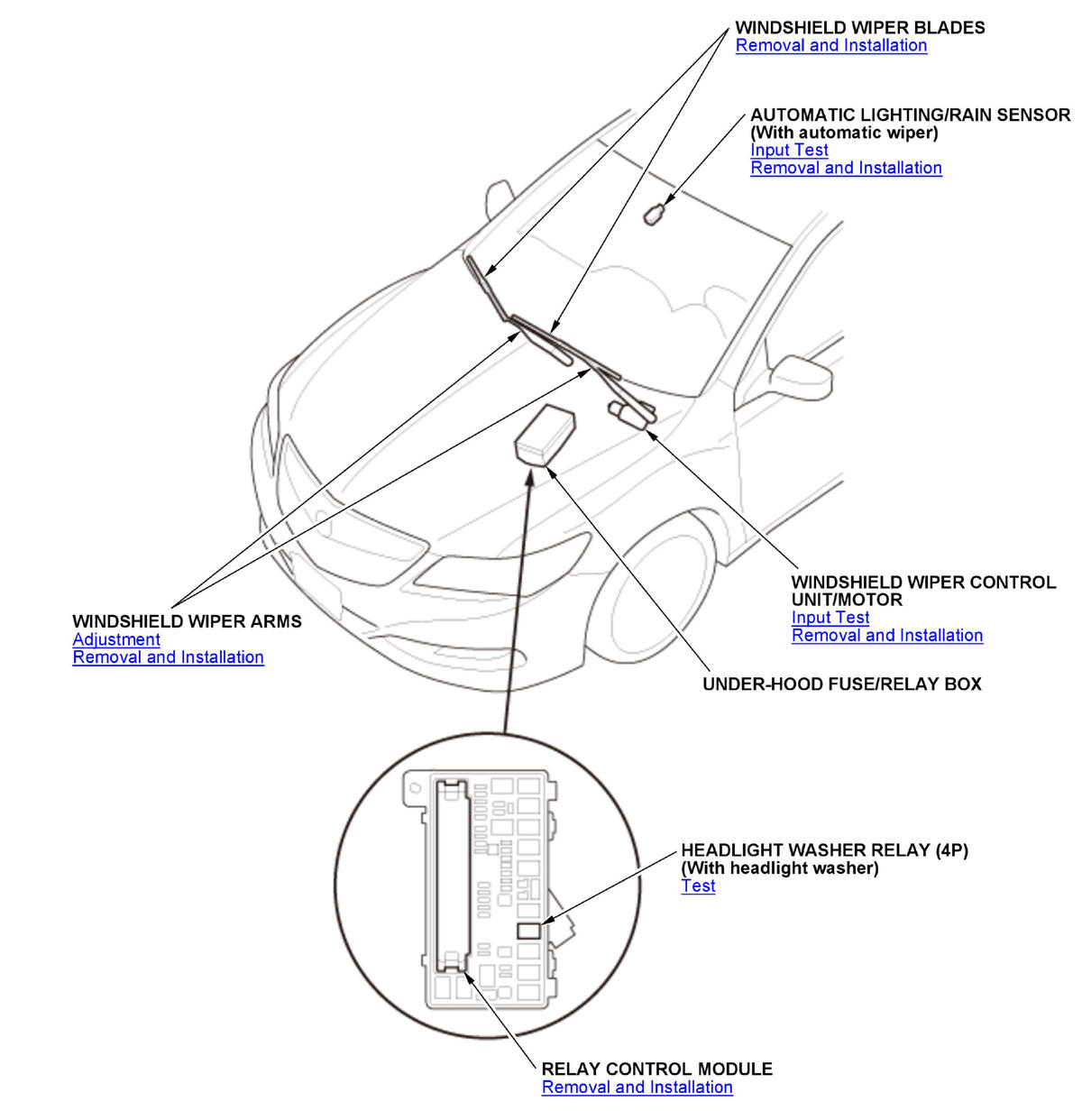

GHH346620

Courtesy of HONDA, U.S.A., INC.

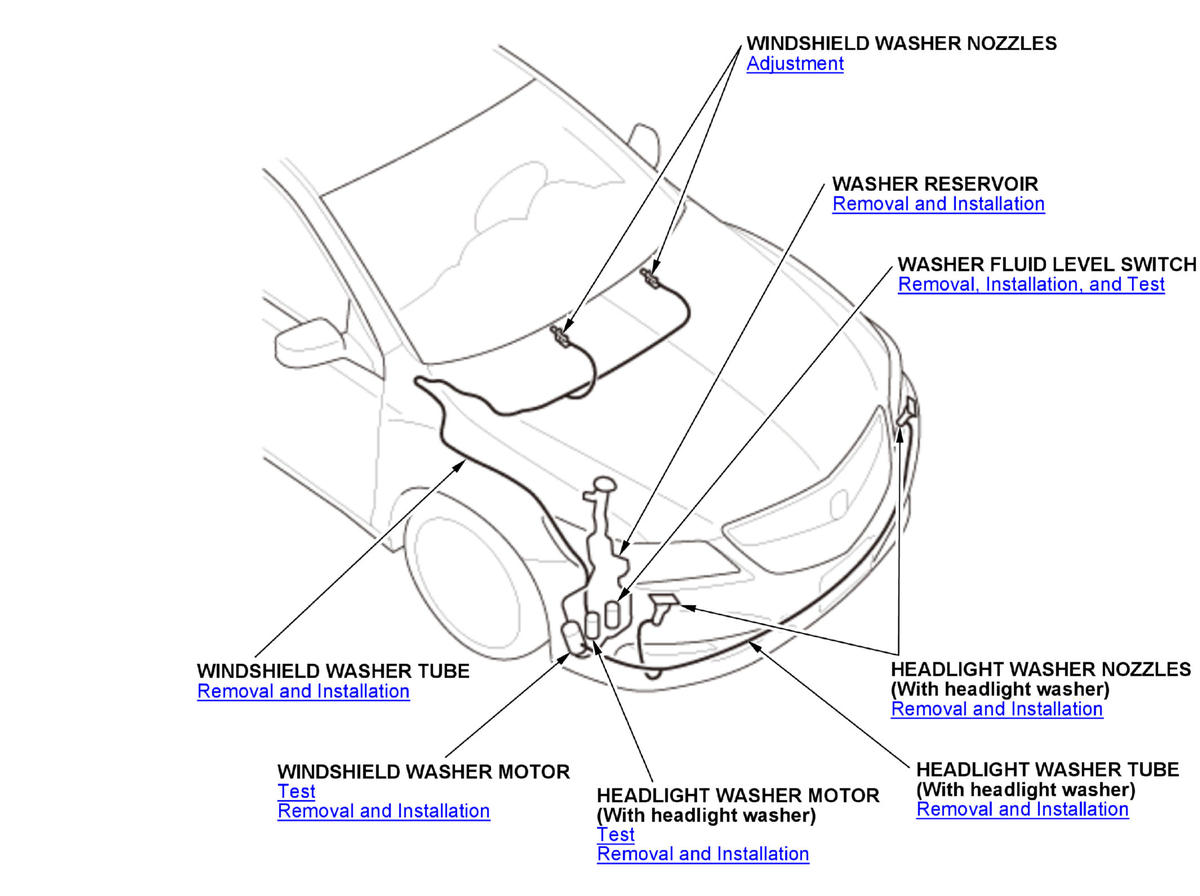

GHH346621

Courtesy of HONDA, U.S.A., INC.

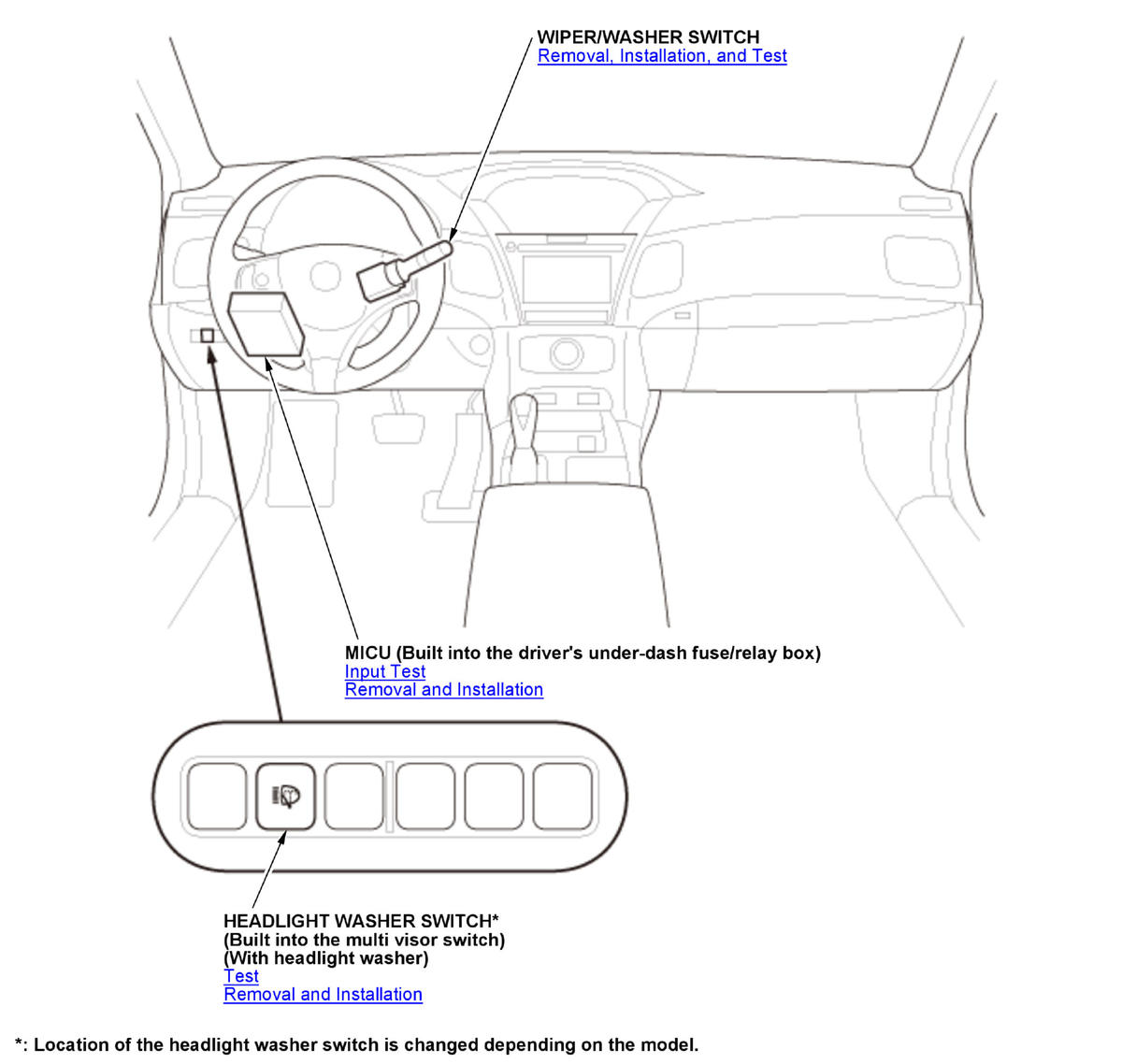

GHH346622

Courtesy of HONDA, U.S.A., INC.
