Home >> Acura >> 2015 >> RLX >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior Trim / Windshield Wiper - Testing & Troubleshooting (Except Hybrid) >> Component Location Index >> Wipers/Washers Component Location Index (2014 2015)

Wipers/Washers Component Location Index (2014 2015)

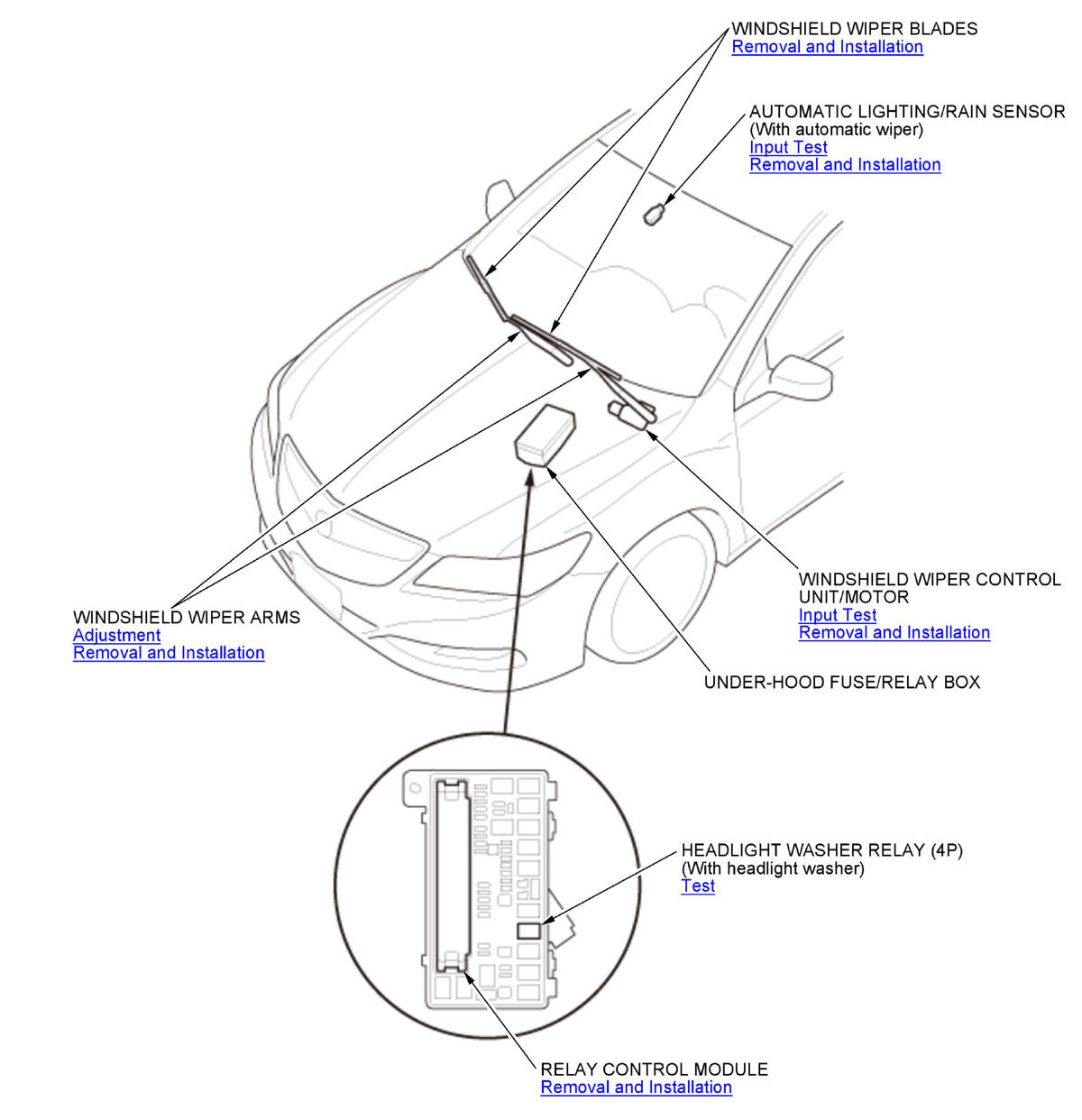

GHH346617

Courtesy of HONDA, U.S.A., INC.

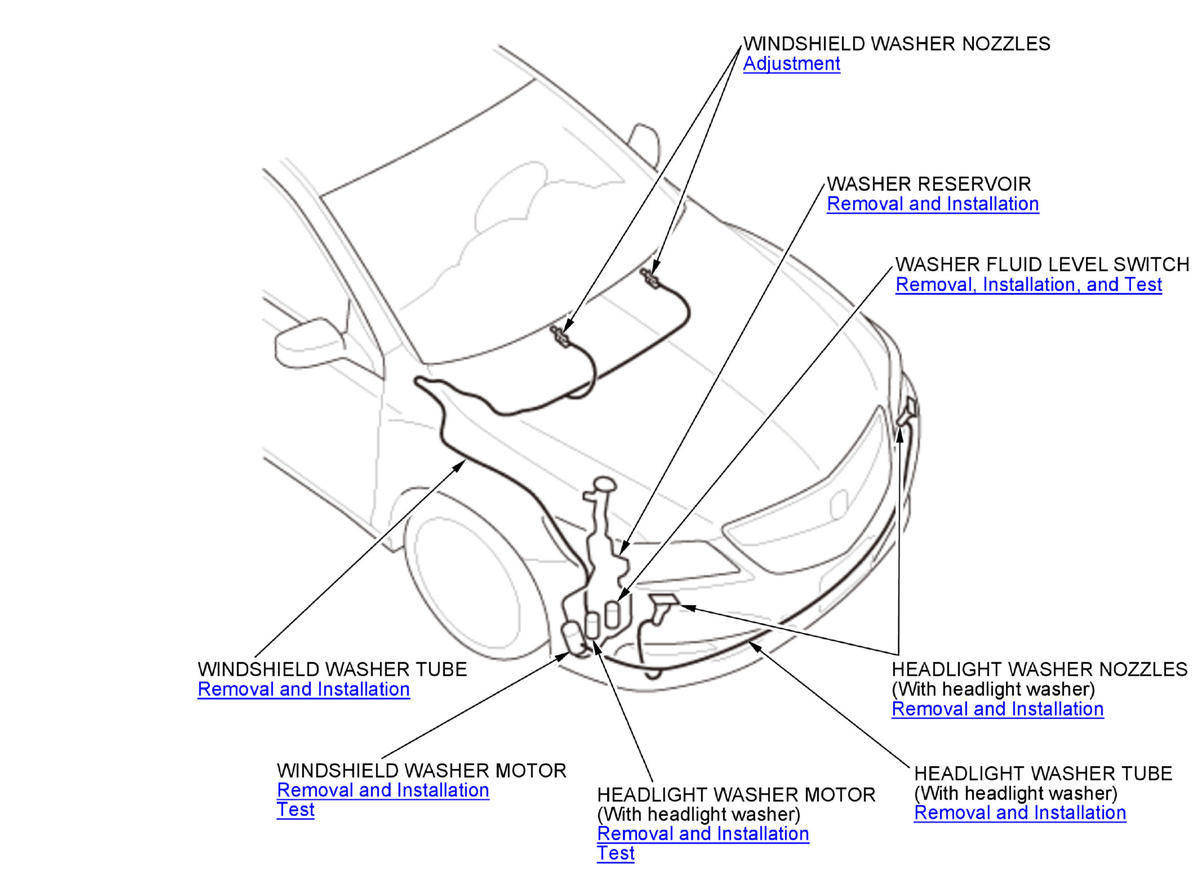

GHH346618

Courtesy of HONDA, U.S.A., INC.

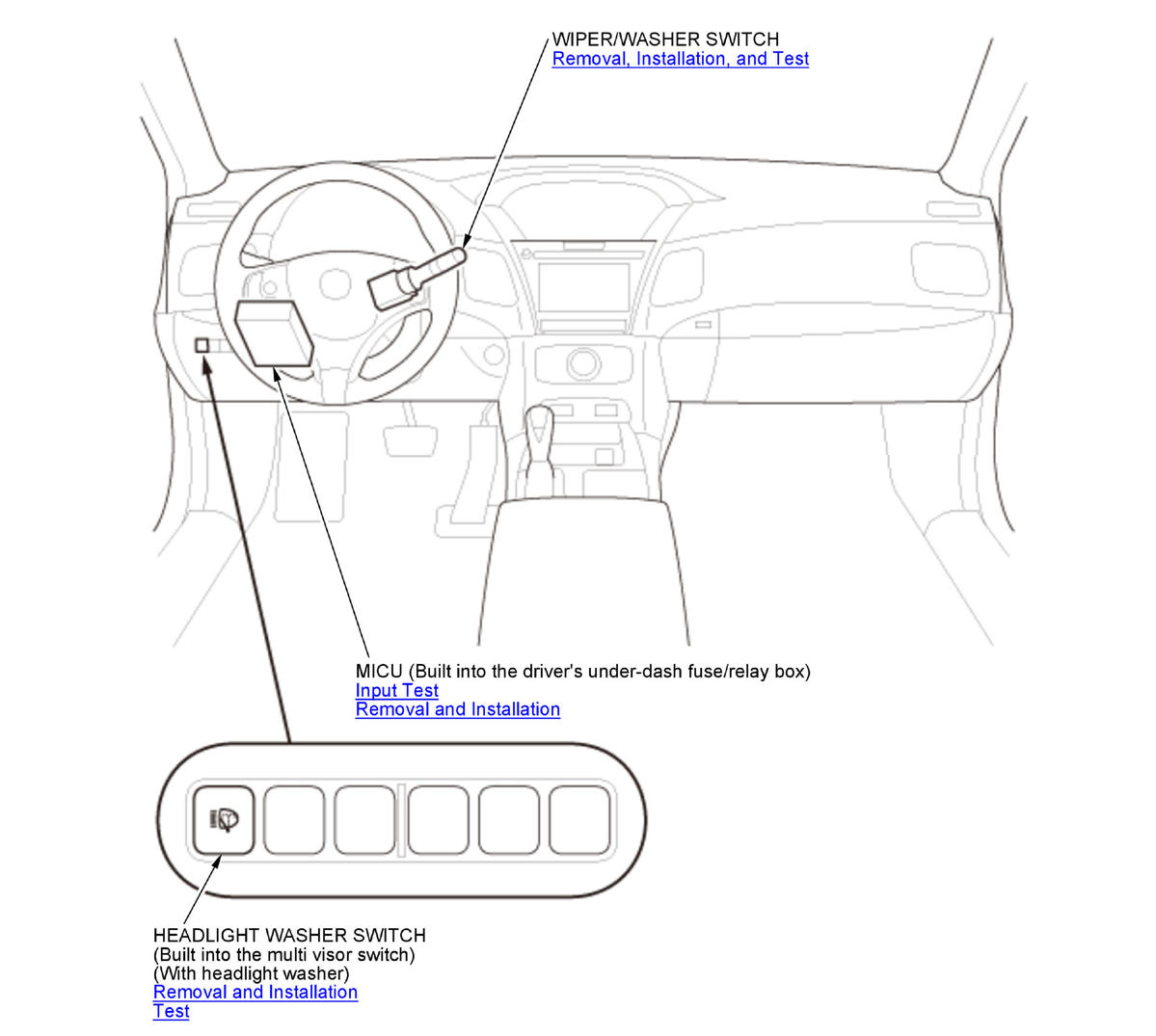

GHH346619

Courtesy of HONDA, U.S.A., INC.
