Home >> Acura >> 2015 >> RLX >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior Trim / Windshield Wiper - Testing & Troubleshooting (Except Hybrid) >> Component Location Index >> Trunk Lid Electrical Component Location Index (2014 2015)

Trunk Lid Electrical Component Location Index (2014 2015)

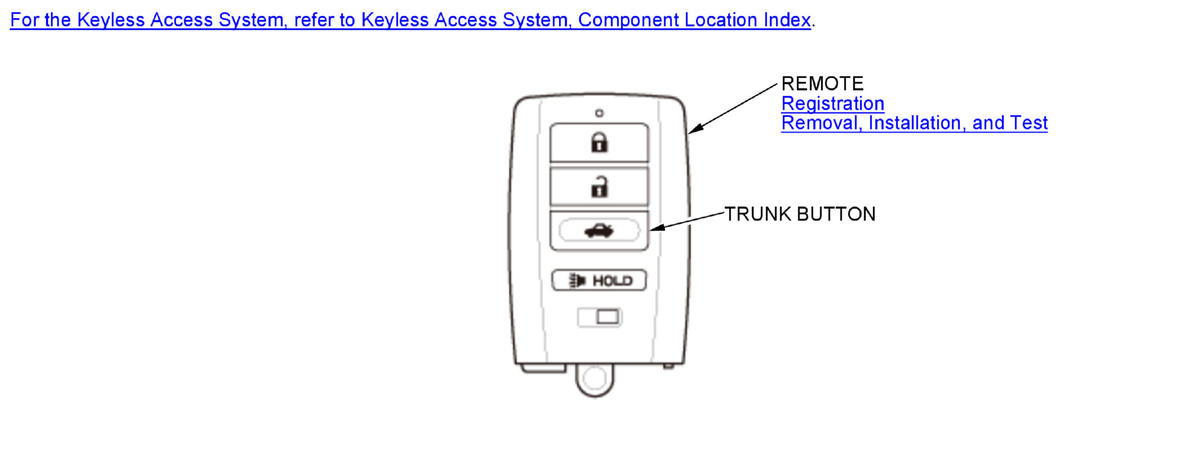

GHH346612

Courtesy of HONDA, U.S.A., INC.

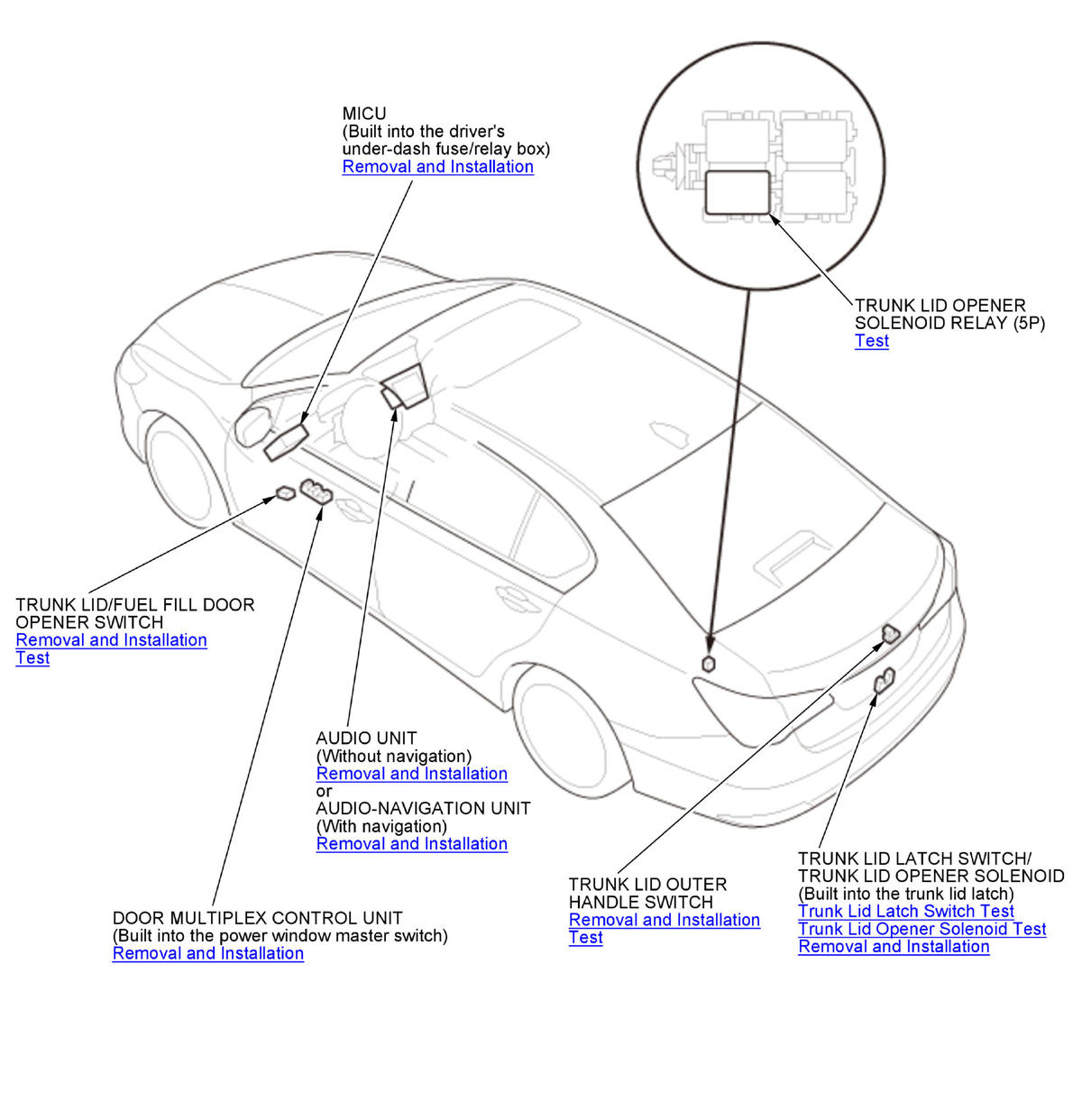

GHH346613

Courtesy of HONDA, U.S.A., INC.
