Wipers/Washers Circuit Diagram (2016 2017)

Windshield

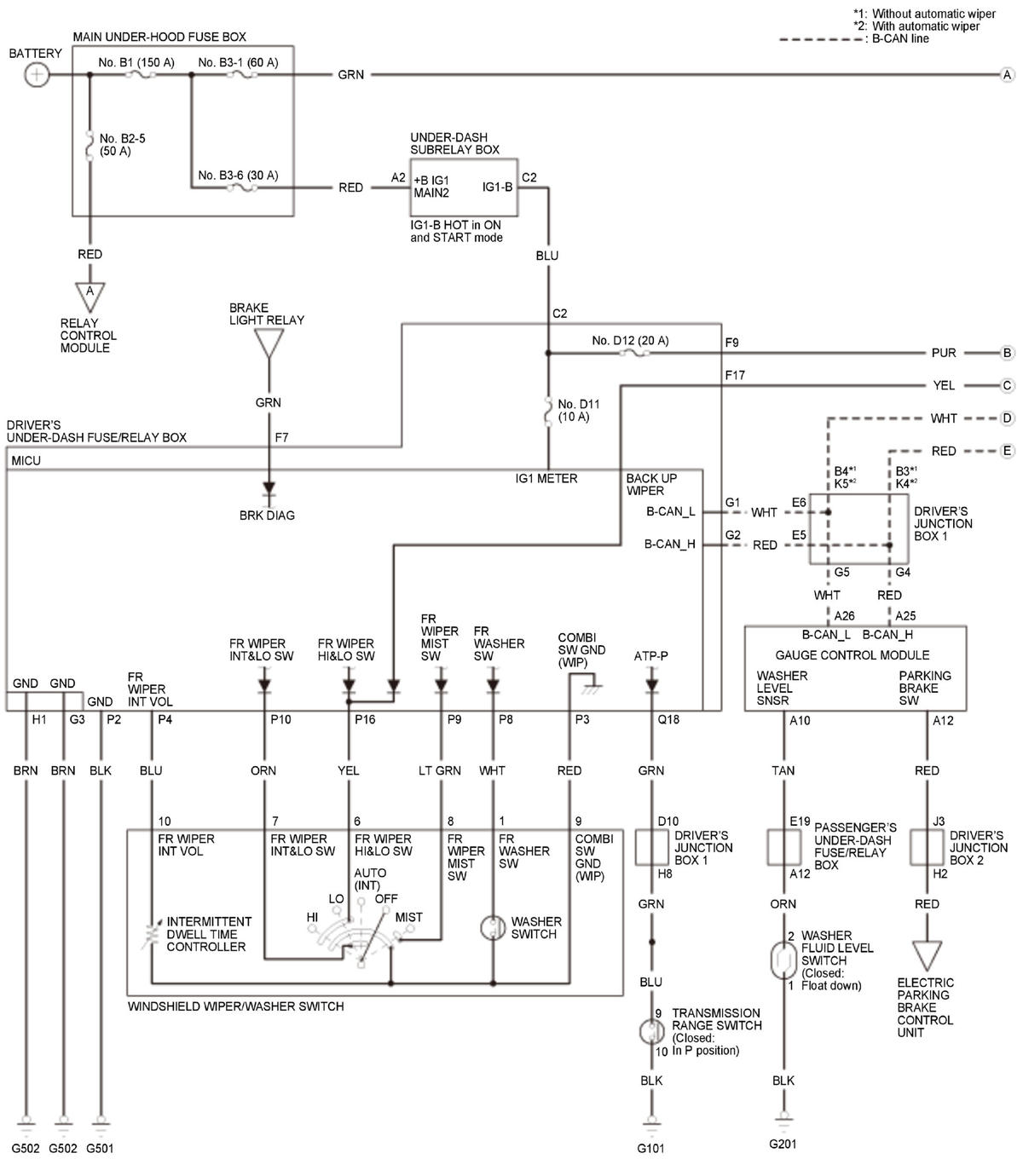

GHH346592

Courtesy of HONDA, U.S.A., INC.

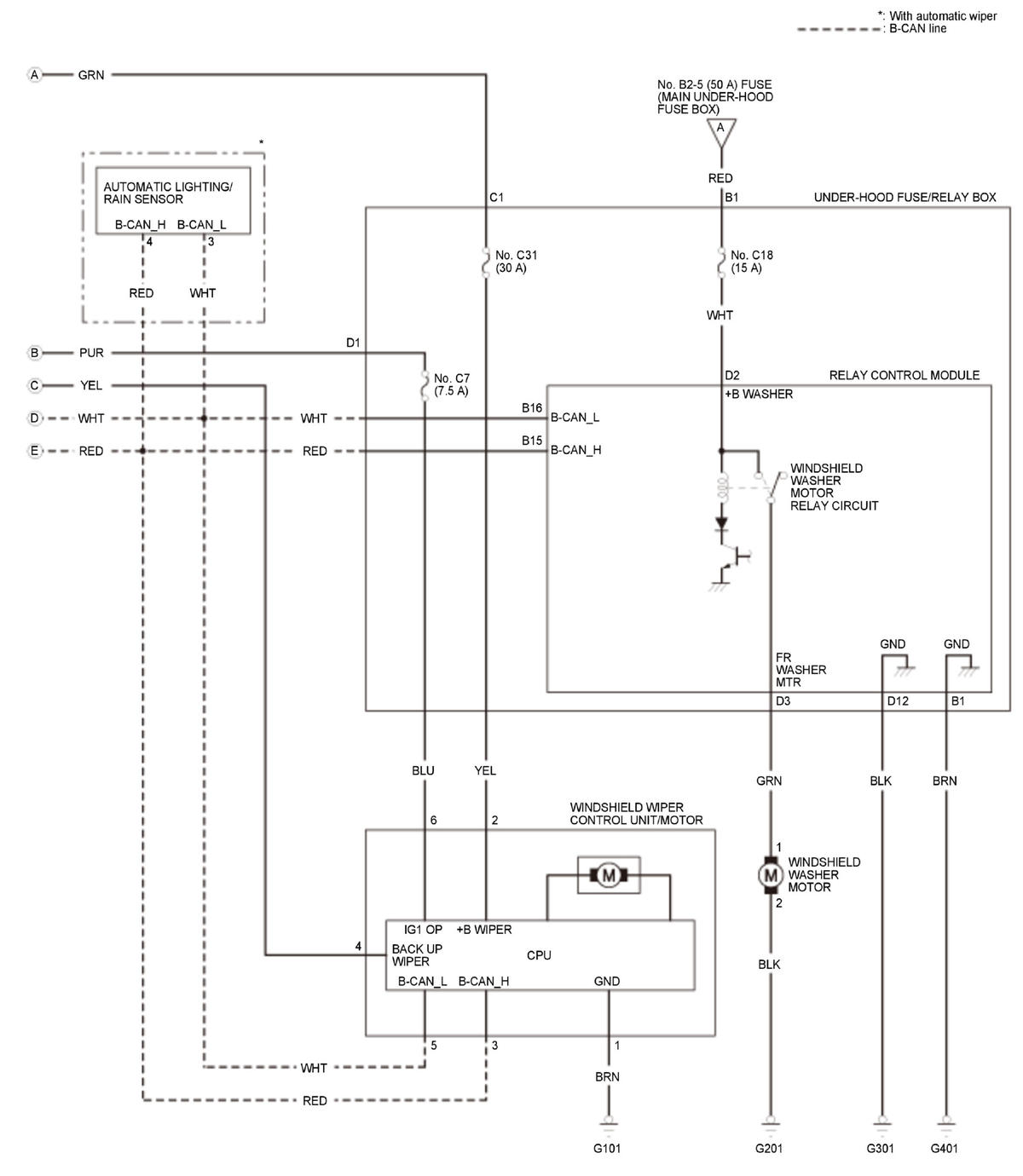

GHH346593

Courtesy of HONDA, U.S.A., INC.

Headlight Washer

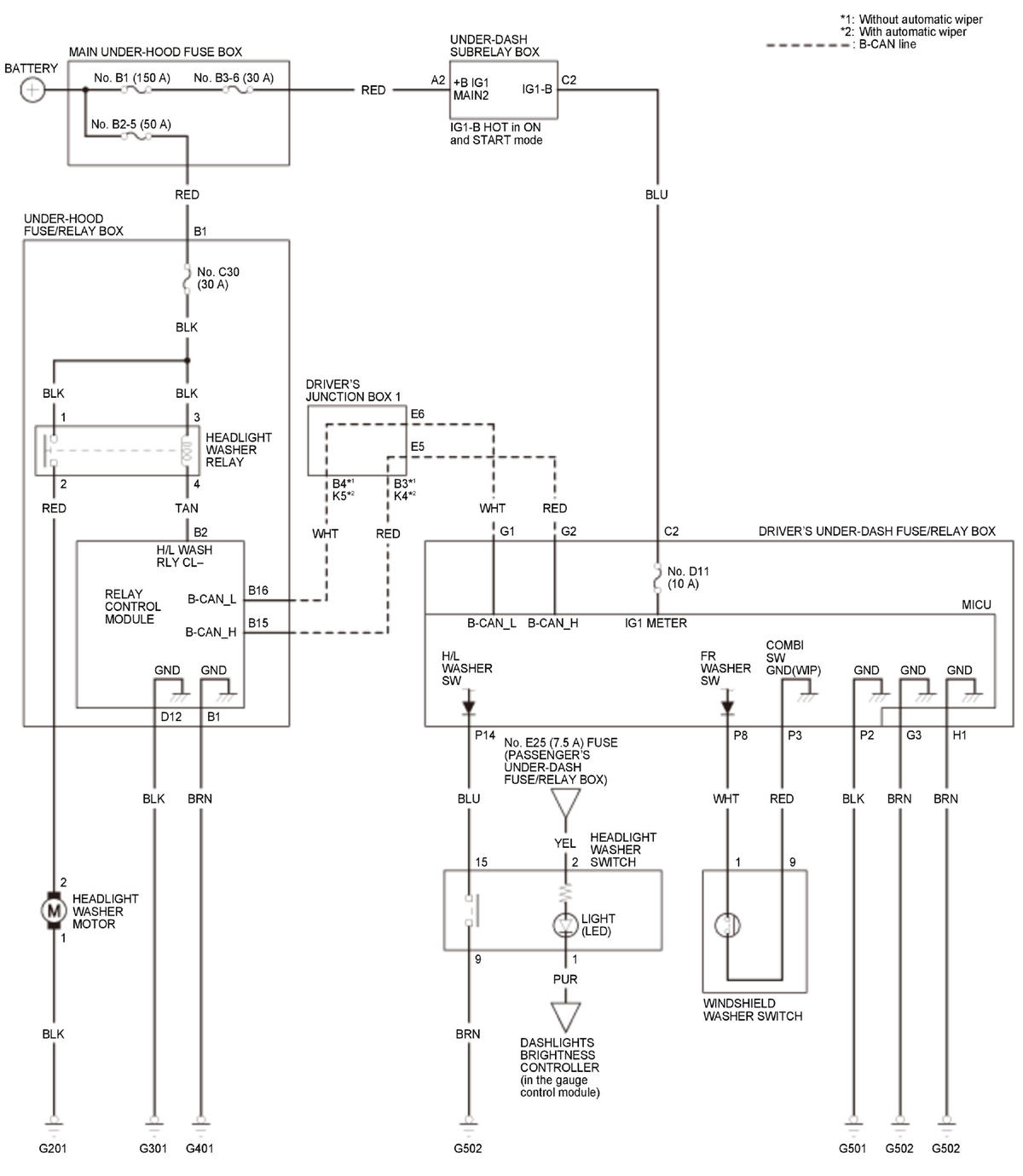

GHH346594

Courtesy of HONDA, U.S.A., INC.
