Wipers/Washers Circuit Diagram (2014 2015)

Windshield

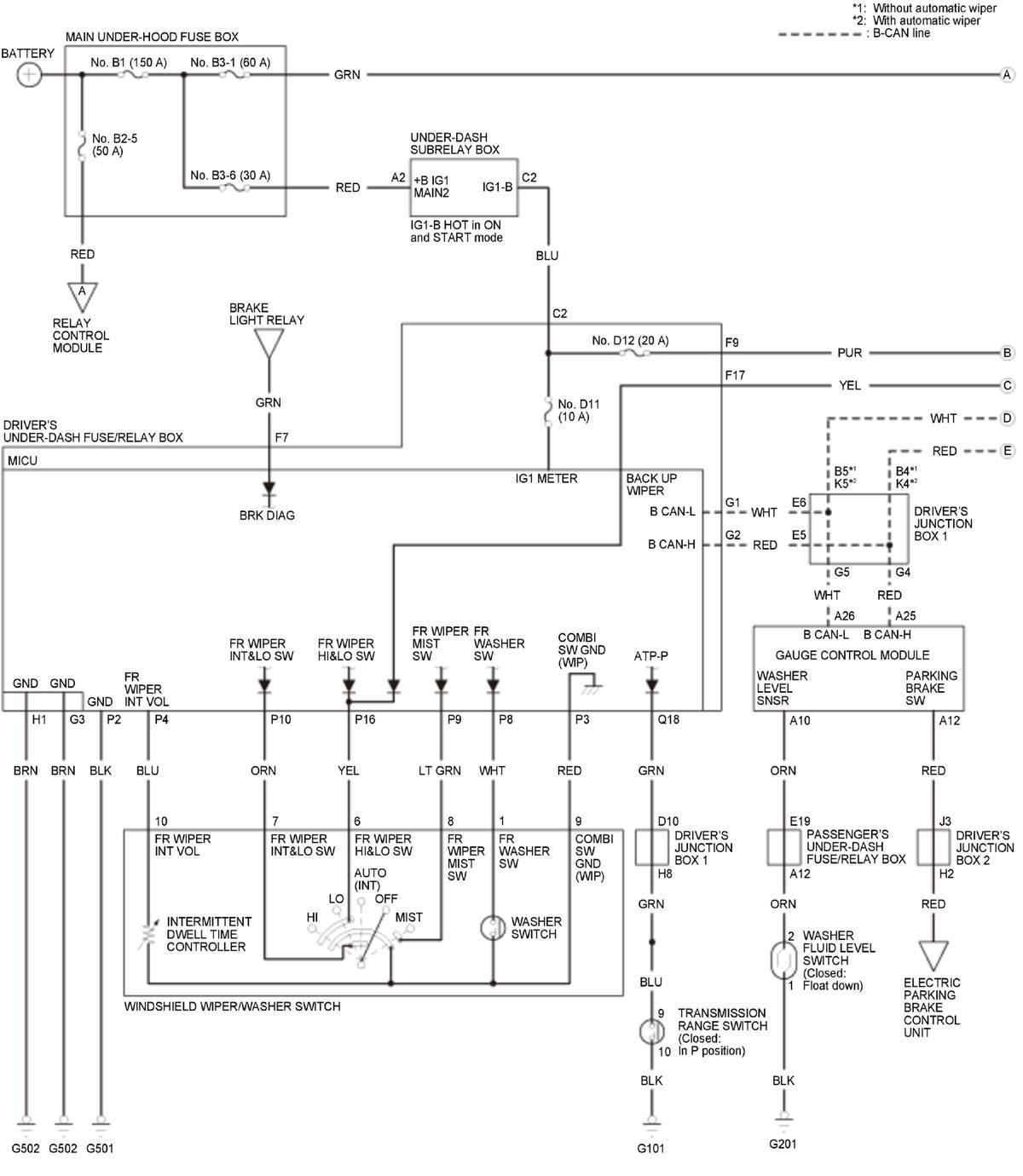

GHH346589

Courtesy of HONDA, U.S.A., INC.

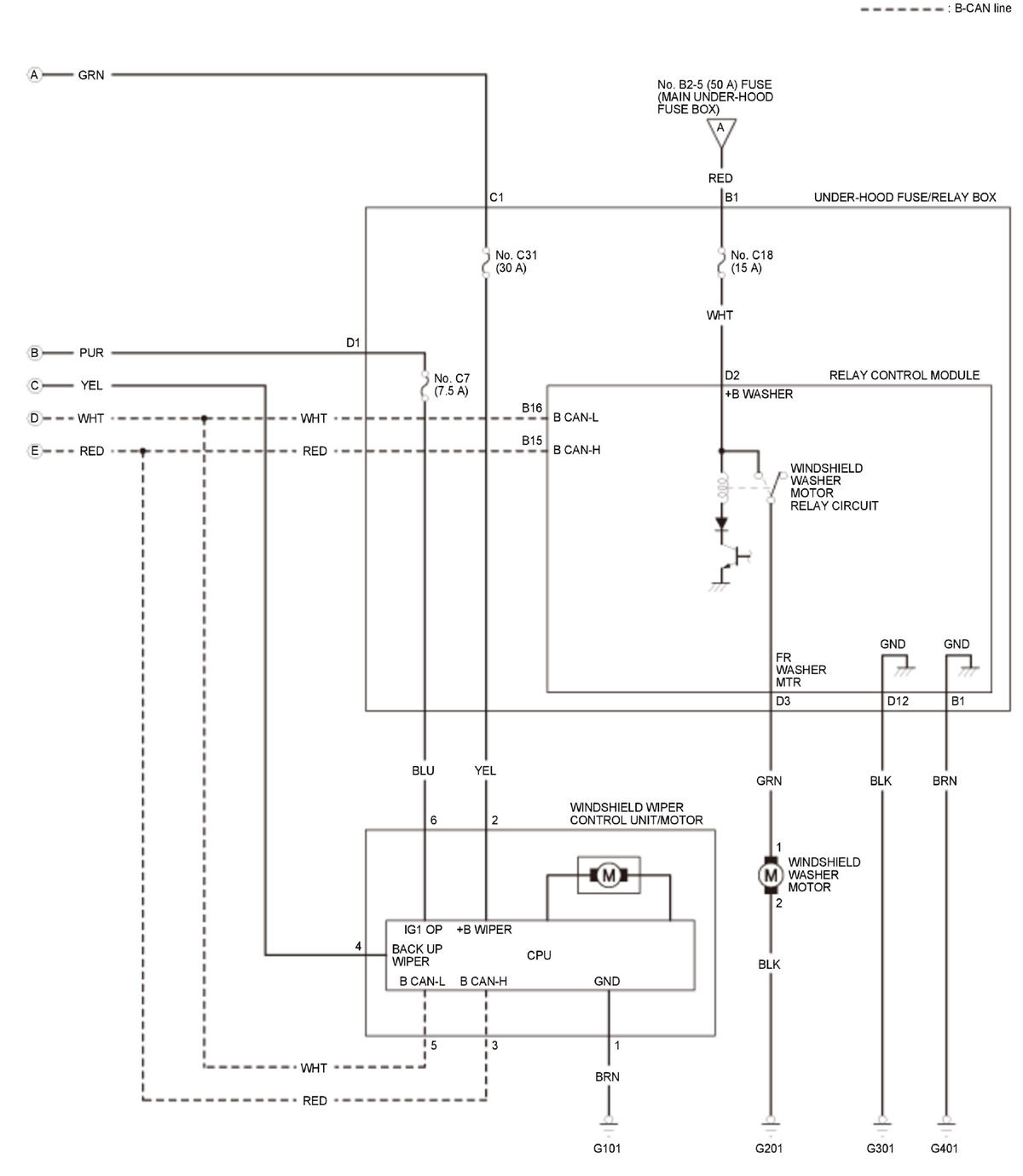

GHH346590

Courtesy of HONDA, U.S.A., INC.

Headlight Washer

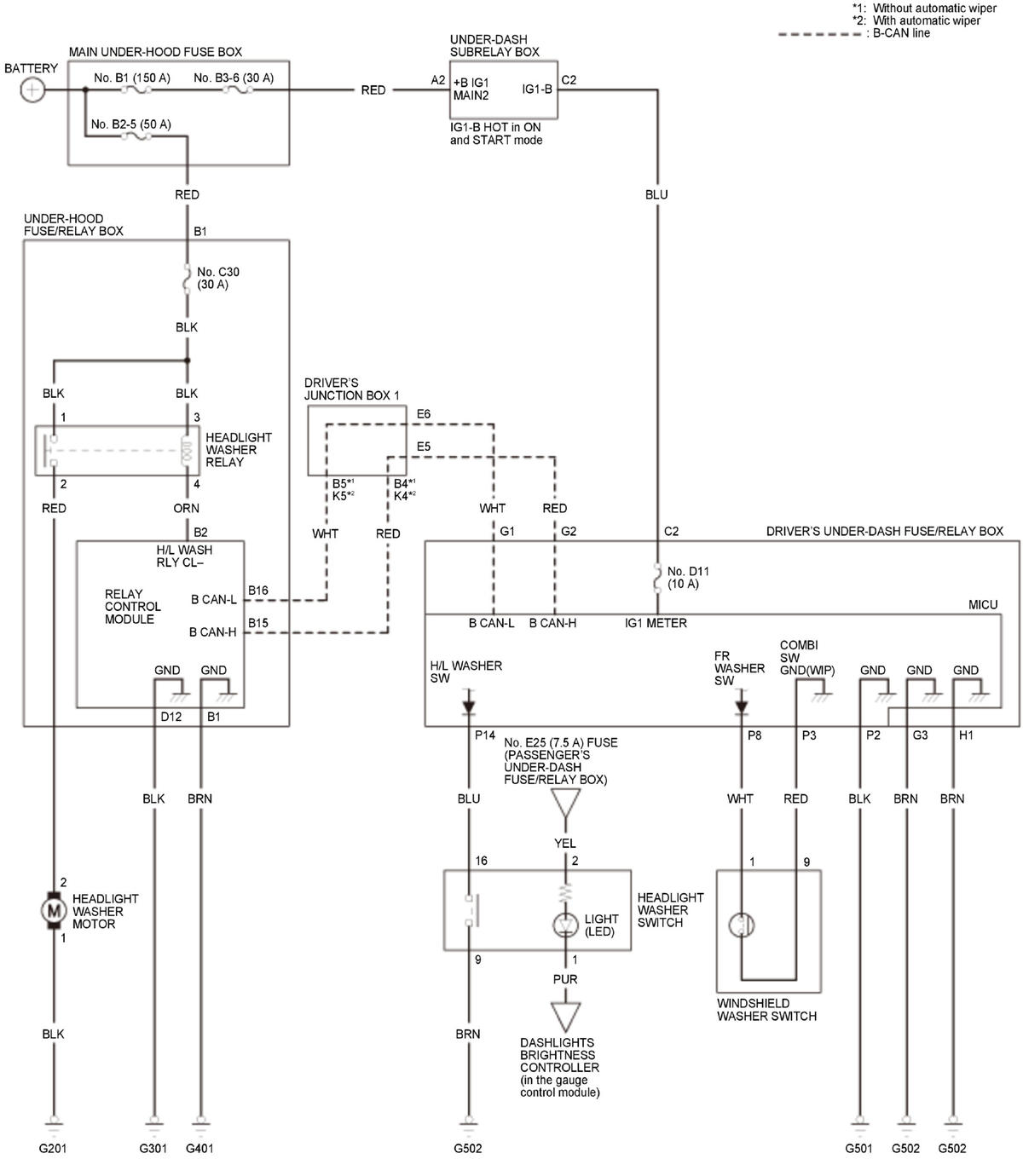

GHH346591

Courtesy of HONDA, U.S.A., INC.
