Sport Mode Switch Test: Test

  1. Center Console Panel - Remove

    Remove the center console panel .

  2. Sport Mode Switch - Test
    GHH347237GHH347238Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH347237GHH347238Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

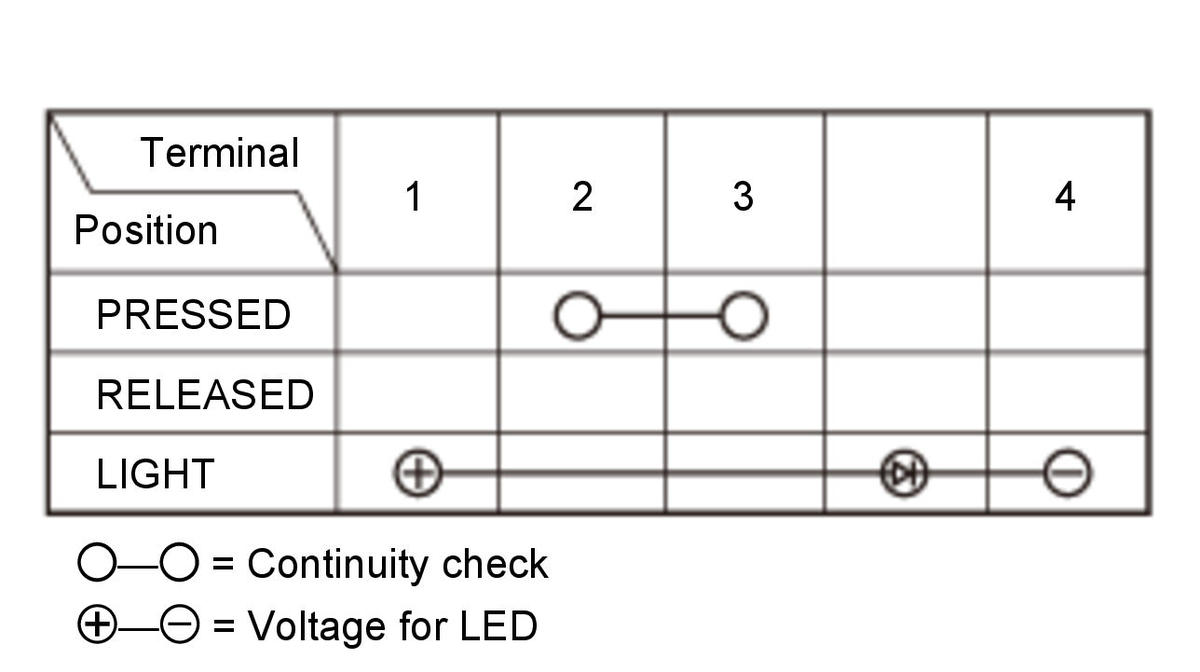

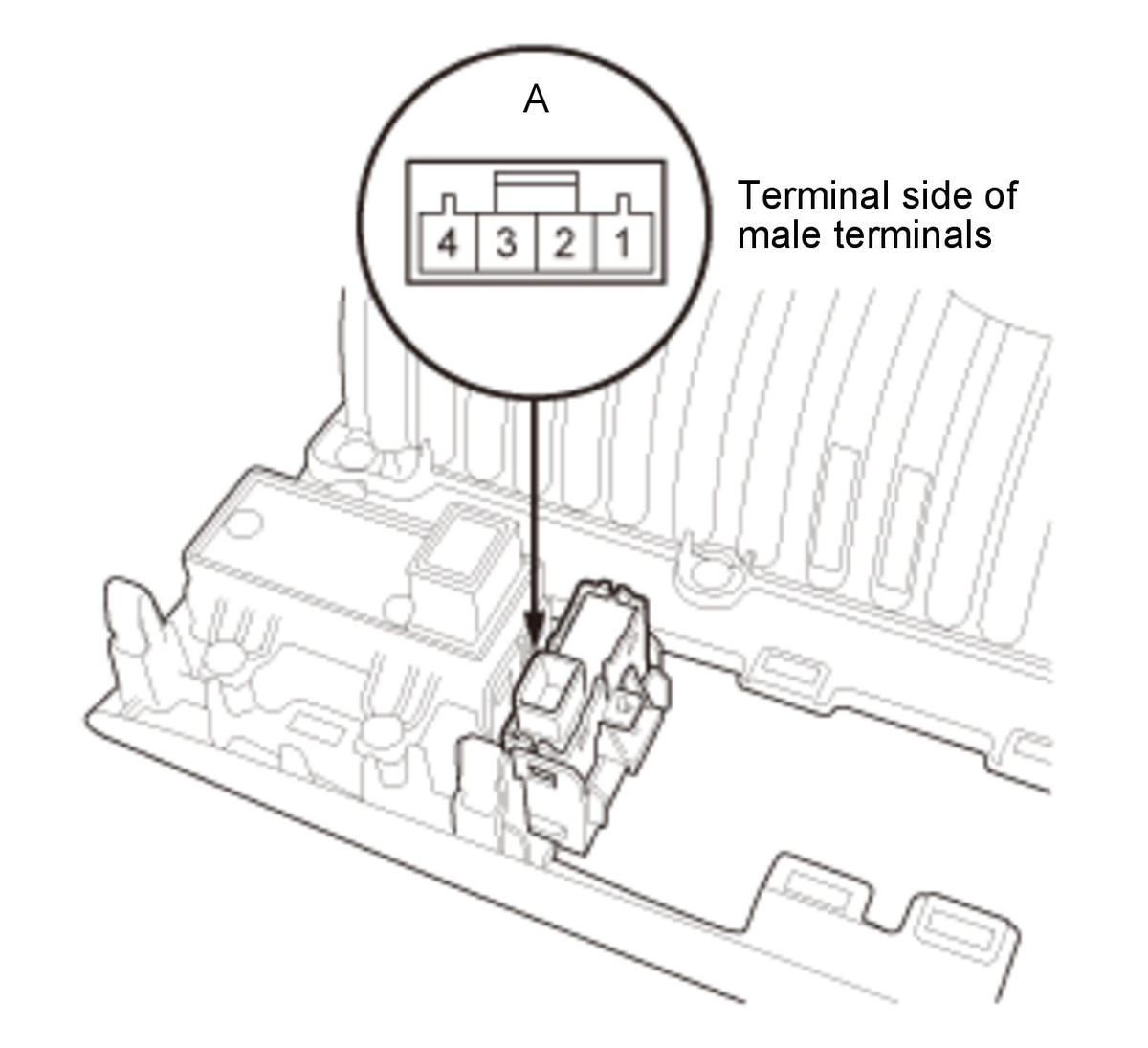

    		 1. Check the sport mode switch (A) according to the table.

    NOTE:  This important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    2. If the result is not as specified, replace the sport mode switch

    .
  3. Center Console Panel - Install

    Install the center console panel .
