Shift Lever Removal

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Move the shift lever to R.
Remove the nut securing the shift cable end.

Fig 1: Identifying Shift Cable End Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Unlock the retainer (A).

Fig 2: Unlocking Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the socket holder retainer (A) counterclockwise (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Fig 3: Rotating Socket Holder Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Slide the socket holder (A) away from the bracket as shown to remove the shift cable (B) from the shift cable bracket (C). Do not remove the shift cable by pulling the shift cable guide (D).

Fig 4: Identifying Socket Holder, Shift Cable, Shift Cable Bracket And Shift Cable Guide
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the shift lever 6P connector (A), and remove the shift lever 6P connector from the shift lever bracket base (B).

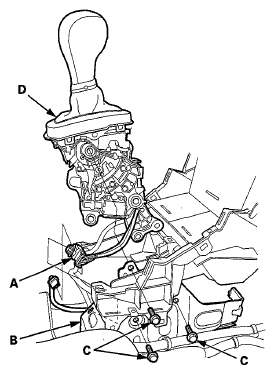

Fig 5: Identifying Shift Lever 6P Connector, Shift Lever Bracket Base, Shift Lever Assembly And Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shift lever mounting bolts (C), then remove the shift lever assembly (D).
