Shift Cable Adjustment

1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
2. Move the shift lever to R.
3. Remove the nut securing the shift cable end.
   Fig 1: Identifying Shift Cable End Nut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Unlock the retainer (A).
   Fig 2: Unlocking Retainer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Rotate the socket holder retainer (A) counterclockwise (6) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.
   Fig 3: Rotating Socket Holder Retainer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Slide the socket holder (A) away from the bracket as shown to remove the shift cable (B) from the shift cable bracket (C). Do not remove the shift cable by pulling the shift cable guide (D).
   Fig 4: Identifying Socket Holder, Shift Cable, Shift Cable Bracket And Shift Cable Guide

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Push the shift cable (A) until it stops, then release it. Pull the shift cable back one step so that the shift position is in R. Do not hold the shift cable guide (B) to adjust the shift cable.
   Fig 5: Identifying Shift Cable And Shift Cable Guide

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Turn the ignition switch to ON (II), and check that the R position indicator comes on.
   Fig 6: Identifying Indicator Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Place the shift lever in P, and turn the ignition switch to LOCK (0).
10. Place the shift lever in R, then insert a 6.0 mm (0.24 in) pin (A) into the positioning hole (B) on the shift lever positioning guide, and into the positioning hole on the shift lever bracket. Use a 6.0 mm (0.24 in) pin with no burrs.
    Fig 7: Identifying Pin And Positioning Hole With Shift Lever

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

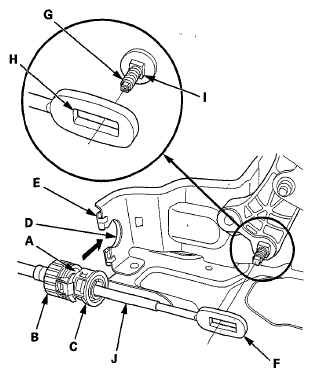

11. Align the shift cable slot (A) between the socket holder (B) and the socket holder retainer (C) with the opening (D) in the shift cable bracket (E), then slide the holder into the bracket while installing the shift cable, end (F) over the mounting stud (G) by aligning its square hole (H) with the square fitting (I) at the bottom of the stud. Do not install the shift cable by holding the shift cable guide (J).
    NOTE: When the socket holder is installed in the shift cable bracket, the retainer lock is unhinged and releases the holder retainer lock, then the holder retainer returns under spring force to secure the shift cable.
    Fig 8: Identifying Socket Holder, Socket Holder Retainer, Shift Cable Bracket, Shift Cable End And Mounting Stud

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Push the retainer lock (A) fully to lock the socket holder retainer (B), and make sure that the retainer lock fits into the hinged-joint (C). If the retainer lock does not fit with the edge of the hinged-joint, rotate the holder retainer counterclockwise while pushing the retainer lock until it locks.
    Fig 9: Pushing Retainer Lock

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Make sure the shift cable end (A) is properly installed on the mounting stud (B).
    Fig 10: Checking Shift Cable End

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. If the shift cable end is out of position on the mounting stud, remove the shift cable from the shift cable bracket, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the shift cable bracket.

    If the shift cable end rides on the bottom of the mounting stud, rotate the stud and align the square fitting with the hole.

15. Install and tighten the nut (A) on the shift cable end.
    Fig 11: Shift Cable End Nut And Pin With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
16. Remove the 6.0 mm (0.24 in) pin (B) that was installed to hold the shift lever.
17. Turn the ignition switch to ON (II). Move the shift lever to each position, and check that the A/T gear position indicator follows the transmission range switch.
18. Shift the shift lever to P, and check that the shift lock works properly. Push the shift lock release, and check that the shift lever releases. Also check that the shift lever locks when it is shifted back to P.
19. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
