Lower Arm A Replacement

  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the rear wheel.
  3. Remove the parking brake cable mounting bolt (B).

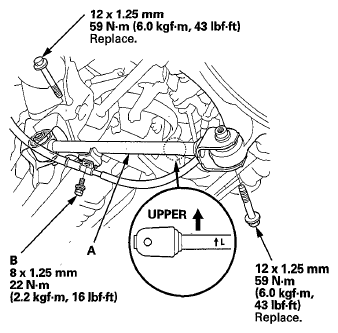

    Fig 1: Lower Arm (A) And Parking Brake Cable Mounting Bolt (B) With Torque Specifications
    G07769246Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the lower arm A mounting bolts, then remove lower arm A.
    NOTE: Use new mounting bolts during reassembly.
  5. Install lower arm A in the reverse order of removal, and note these items:
    • First install all of the components, and lightly tighten the bolts, then raise the suspension to load it with the vehicle's weight before fully tightening to the specified torque.
    • Before installing the wheel, clean the mating surfaces between the brake disc and the inside of the wheel.
  6. Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
