Damper/Spring Removal and Installation: Removal

1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
2. Remove the rear wheel.
3. Sedan: Fold down the rear seat-back, then remove the lid (A).
   NOTE: Lift up the tab (B) inside underneath the lid first using a flat-tipped screwdriver, then release the hooks.
   Fig 1: Identifying Lid (A) And Tab (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Sport Wagon: Remove the tonneau cover (if equipped), then remove the lid (A) on the trunk side trim.
   Fig 2: Identifying Trunk Side Trim Lid (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Sedan: Remove the damper mounting cap (A) from the top of the damper.

   Sedan

   Fig 3: Identifying Damper Mounting Cap (A)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Sport Wagon

   Fig 4: Identifying Damper Mounting Nuts (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the damper mounting nuts (B) from the top of the damper.

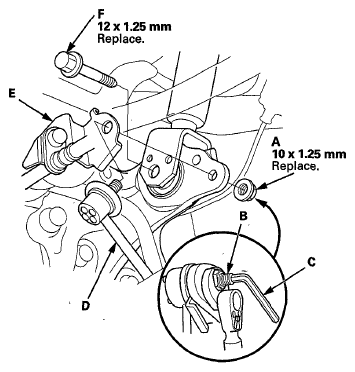

7. Remove the flange nut (A) while holding the joint pin (B) with a hex wrench (C), then disconnect the stabilizer link (D) from the knuckle, and remove the brake hose bracket (E).
   Fig 5: Identifying Flange Nut (A), Joint Pin (B), Hex Wrench (C) And Stabilizer Link (D)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the damper lower mounting bolt (F).
9. Remove the damper/spring (A) by lowering the rear suspension.
   NOTE: Be careful not to damage the body.

Fig 6: Identifying Damper/Spring (A)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
