Exploded View

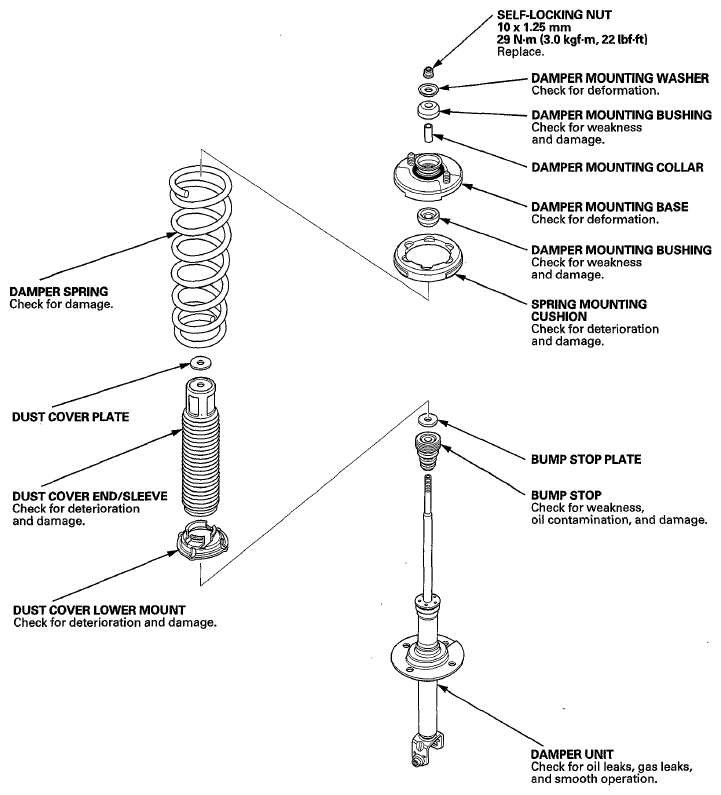

Fig 1: Exploded View Of Damper/Spring Disassembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

When compressing the damper spring, use a commercially available strut spring compressor (Branick MST-580A or Model 7200, or equivalent) according to the manufacturer's instructions.
Refer to the Exploded View as needed during the following procedure.
