Wheel Bearing Replacement

Remove the knuckle/hub.
Separate the hub (A) from the knuckle (B) using the hub dis/assembly pin and a hydraulic press. Hold the knuckle with the attachment (C) of the hydraulic press or equivalent tool. Be careful not to damage or deform the splash guard (D). Hold onto the hub to keep it from falling when pressed clear.

Fig 1: Identifying Hub (A), Knuckle (B) And Splash Guard (D)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Press out the wheel bearing inner race (A) of the hub (B) using the hub dis/assembly pin, a commercially available bearing separator (C), and a press.

Fig 2: Identifying Wheel Bearing Inner Race (A), Hub (B) And Bearing Separator (C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the snap ring (A) and the splash guard (B) from the knuckle (C).

Fig 3: Identifying Snap Ring (A), Plash Guard (B) And Knuckle (C)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Press the wheel bearing (A) out of the knuckle (B) using the attachment, the driver handle, and a press.

Fig 4: Identifying Wheel Bearing (A) And Knuckle (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Wash the knuckle and the hub thoroughly in high flash point solvent before reassembly.
Press a new wheel bearing (A) into the knuckle (B) using the old bearing (C), a steel plate (D), the attachment, the support base, and a press.
NOTE:
- Install the wheel bearing with the wheel speed sensor magnetic encoder (E) (brown color) toward the inside of the knuckle.
- Remove any oil, grease, dust, metal debris, and other foreign material from the magnetic encoder surface.
- Keep any magnetic tools away from the magnetic encoder surface.
- Be careful not to damage the magnetic encoder surface when you insert the wheel bearing.
Fig 5: Identifying Wheel Bearing (A), Knuckle (B), Old Bearing (C) And Steel Plate (D)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

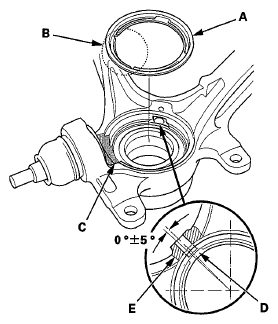

Check the front knuckle ring (A) for damage or deformation, and replace it if necessary.
NOTE: When installing the new front knuckle ring, position the knuckle ring notch portion (B) toward the cut out (C) near the ball joint in the knuckle, and align the center of the knuckle ring ledge portion (D) with the center of the wheel speed sensor hole (E) on the knuckle as shown.

Fig 6: Identifying Knuckle Ring (A) And Knuckle Ring Notch Portion (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new snap ring (A) securely in the knuckle (B).

Fig 7: Snap Ring (A) And Knuckle (B) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash guard (C), and tighten the screws (D) to the specified torque.
Install the hub (A) onto the knuckle (B) using the attachment, the driver handle, the support base, and a hydraulic press. Be careful not to damage the splash guard (C).

Fig 8: Installing Hub (A) Onto Knuckle (B) Using Hydraulic Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the knuckle/hub.
