Tire Sealant Bottle Replacement

  1. Remove the cover (A).

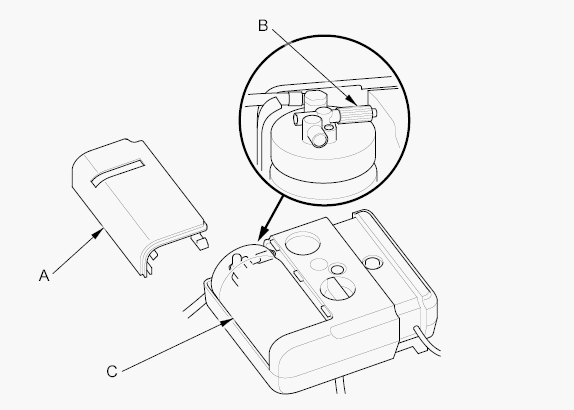

    Fig 1: Identifying Cover, Joint & Sealant Bottle
    G00520173Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the joint (B).
  3. Remove the sealant bottle (C).
  4. Install in the reverse order of removal.
