Component Location Index - Rear Suspension

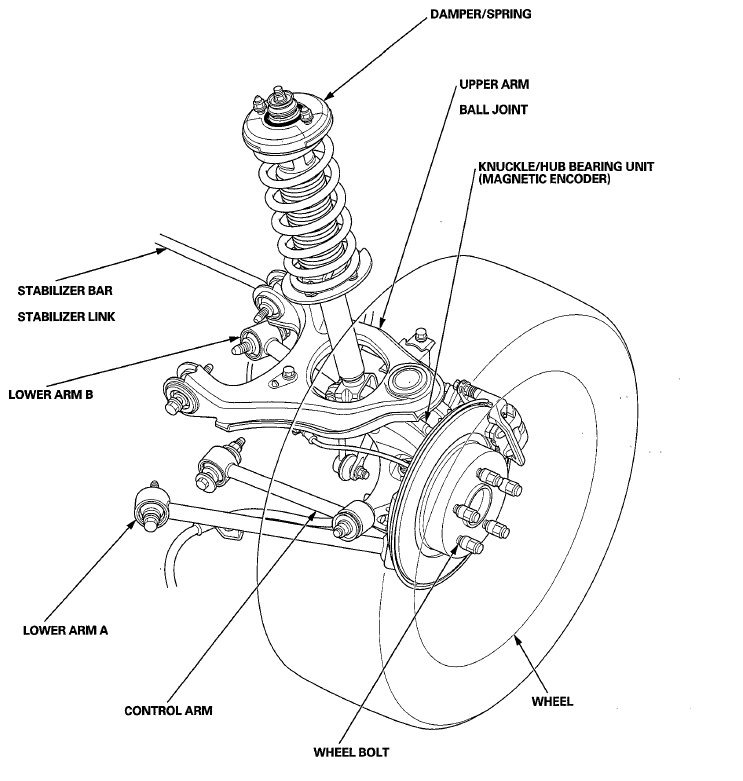

Fig 1: Identifying Rear Suspension Component Location

G07769149

Courtesy of AMERICAN HONDA MOTOR CO., INC.
