A/C Compressor Thermal Protector Replacement

  1. Remove the A/C compressor (see A/C COMPRESSOR REPLACEMENT  ).
  2. Remove the bolts and the holders (A). Disconnect the field coil connector (B), then remove the thermal protector (C).

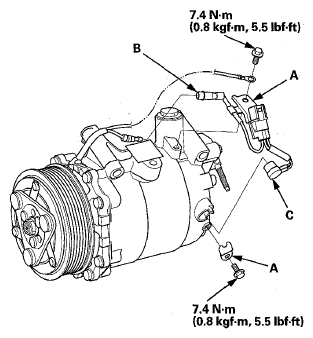

    Fig 1: Holders, Field Coil Connector And Thermal Protector With Torque Specifications
    G07770721Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Replace the thermal protector (A) with a new one, and apply silicone sealant (B) to the bottom of the thermal protector.
    Fig 2: Applying Silicone Sealant To Bottom Of Thermal Protector
    G07770722Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the thermal protector in the reverse order of removal.
