Delay Orifice Mechanism: Function

WARNING: This page is about a different variant/trim than selected.

The delay orifice mechanism improves clutch operation by delaying the slave cylinder release speed when the clutch pedal is suddenly released. The delay orifice mechanism is built into the slave cylinder.

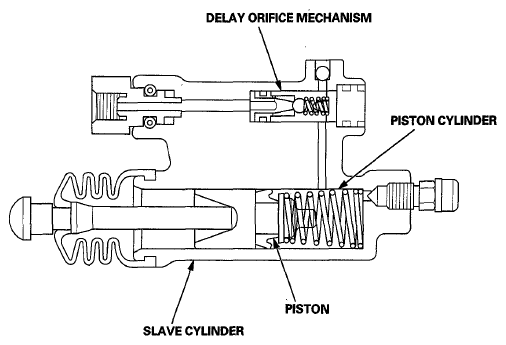

Fig 1: Identifying Delay Orifice Mechanism, Slave Cylinder And Piston Cylinder
G07768069Courtesy of AMERICAN HONDA MOTOR CO., INC.
