Special Tools
WARNING: This page is about a different variant/trim than selected.
Clutch

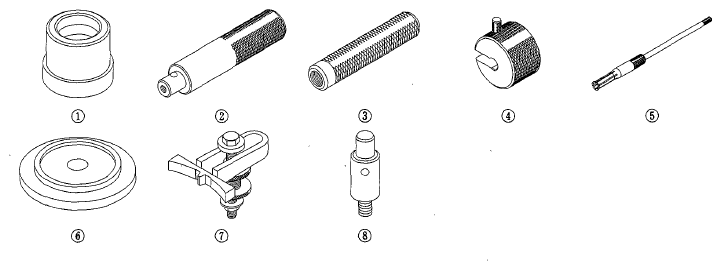

SPECIAL TOOL DESCRIPTION CHART
| Ref. No. | Tool Number | Description | Qty |
|---|---|---|---|
| 1 | 07746-0010800 | Bearing Driver Attachment, 22 x 24 mm | 1 |
| 2 | 07749-0010000 | Driver Handle, 15 x 135L | 1 |
| 3 | 07936-3710100 | Remover Handle | 1 |
| 4 | 07936-371020A | Slide Hammer | 1 |
| 5 | 07936-3710600 | Bearing Remover Shaft Set, 20 mm | 1 |
| 5 | 07JAF-PM7011A | Clutch Alignment Disc | 1 |
| 7 | 07LAB-PV00100 | Ring Gear Holder | 1 |
| 8 | 07ZAF-PR8A100 | Clutch Alignment Shaft | 1 |
