Slave Cylinder Replacement: Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the clutch line (A) from the slave cylinder (B). To prevent spills, cover the line joint with rags or clean shop towels.
    NOTE: Loosen the flare nut (C) while holding the clutch line connector (D) using a wrench.

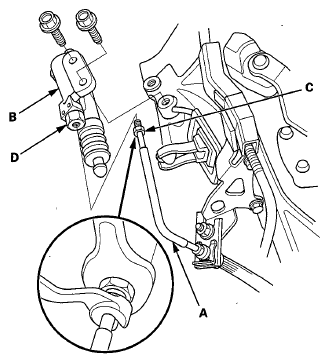

    Fig 1: Identifying Clutch Line (A), Slave Cylinder (B) And Clutch Line Connector (D)
    G07768092Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the slave cylinder from the transmission housing.
  3. Apply a light coat of super high temp urea grease (P/N 08798-9002) to the end of the slave cylinder push rod (A).

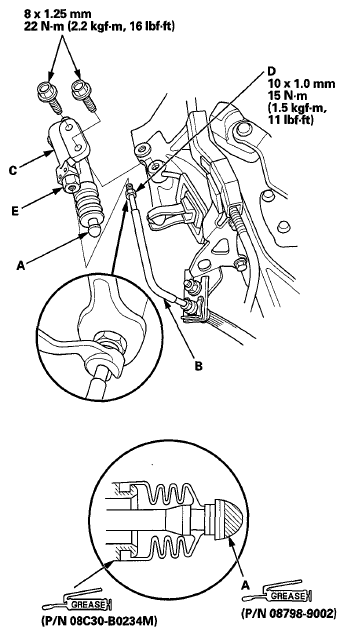

    Fig 2: Slave Cylinder Push Rod (A), Clutch Line (B), Slave Cylinder (C) And Flare Nut (D) With Torque Specifications
    G07768093Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Connect the clutch line (B) to the slave cylinder (C), and loosely tighten the flare nut (D).
  5. Install the slave cylinder to the transmission housing, then tighten the clutch line flare nut to the specified torque.
    NOTE: Tighten the flare nut while holding the clutch line connector (E) using a wrench.
  6. Bleed the clutch hydraulic system (see CLUTCH HYDRAULIC SYSTEM BLEEDING ).
  7. Check the clutch operation and check for leaks.
  8. Test-drive the vehicle.
