Component Location Index

WARNING: This page is about a different variant/trim than selected.

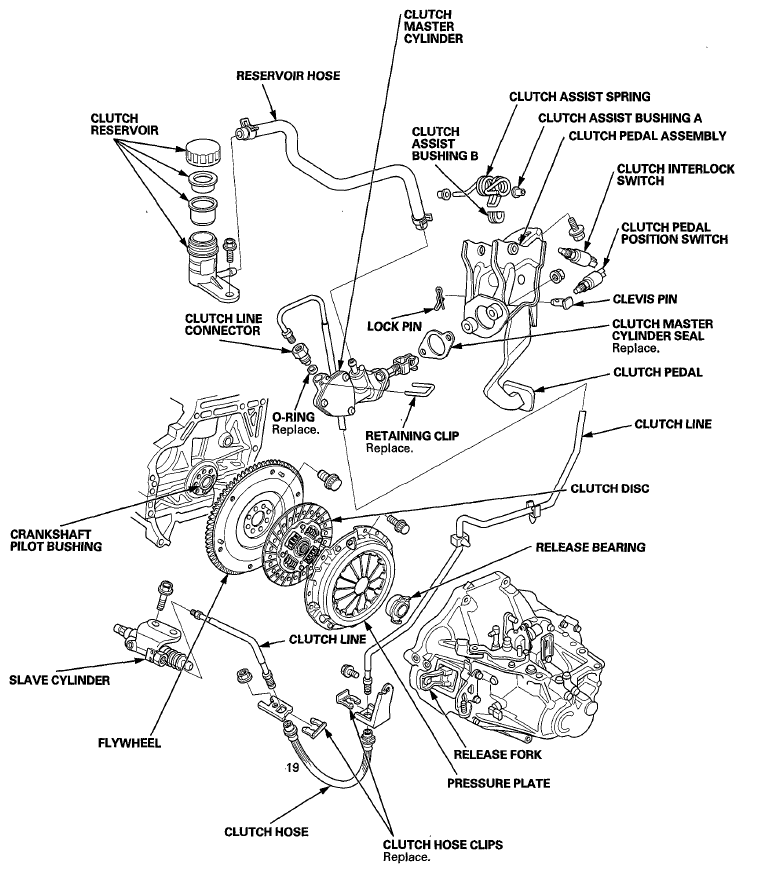

Fig 1: Exploded View Of Clutch

G07768068

Courtesy of AMERICAN HONDA MOTOR CO., INC.
