Clutch Pedal Pad Cover Replacement

WARNING: This page is about a different variant/trim than selected.
NOTE: This procedure is for models equipped with a clutch pedal pad cover.
  1. Cover the carpet under the clutch pedal to prevent metal shavings from getting on the carpet.
  2. Center punch each of the rivets (A), and drill their heads off with a 3 mm (0.12 in) drill bit (B).
    NOTE: Do not drill the clutch pedal pad.

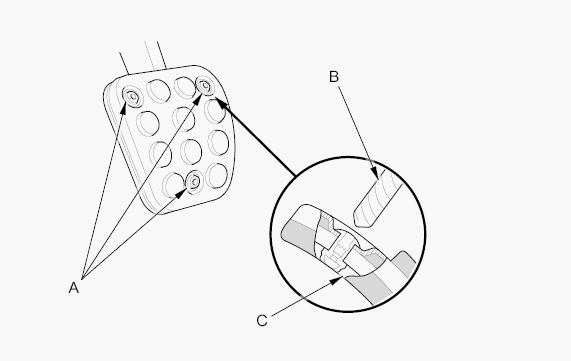

    Fig 1: Identifying Clutch Pedal, Rivets & Drill Bit
    G00520167Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the clutch pedal pad cover (A) and the clutch pedal cover (B) from the clutch pedal pad (C).

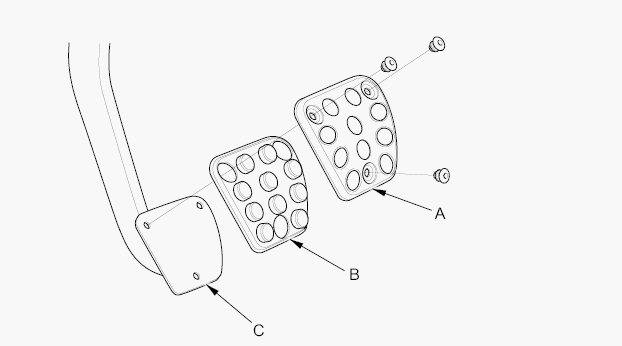

    Fig 2: Identifying Pedal Pad Cover, Pedal Cover & Pedal Pad
    G00520168Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Set the clutch pedal cover to the clutch pedal pad cover.
  5. Install the clutch pedal pad cover (A) with the rivets (B) securely using a commercially available pop rivet tool (C).

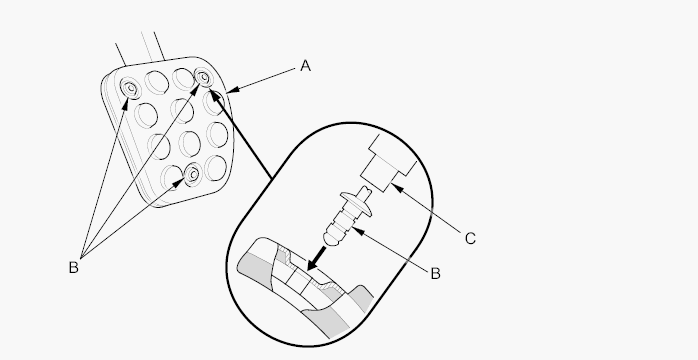

    Fig 3: Identifying Pedal Pad Cover, Rivets & Rivet Tool
    G00520169Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Using your hand, makes sure the clutch pedal cover is firmly fastened to the pedal.
