Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION CHART

Ref.No. Tool Number Description Qty
1 070AG-SJAA10S Subframe Alignment Pin 1
(2)2 07736-A01000B Adjustable Bearing Puller, 25-40 mm 1
3 07746-0010300 Bearing Driver Attachment, 42 x 47 mm 1
4 07746-0030100 Driver Handle, 40 mm I.D. 1
5 07746-0030300 Bearing Driver Attachment, 30 mm I.D. 1
6 07749-0010000 Driver Handle, 15 x135L 1
(1)7 07GAJ-PG20110 Mainshaft Holder 1
(1)8 07GAJ-PG20130 Mainshaft Base 1
9 07JAD-PL90100 Oil Seal Driver, 65 mm 1
10 07NAD-P20A100 Oil Seal Driver Attachment 1
(1) Part of Mainshaft Inspection Tool Set, 07GAJ-PG20102.
(2) Must be used with commercially available 3/8"-16 UNF Slide Hammer.

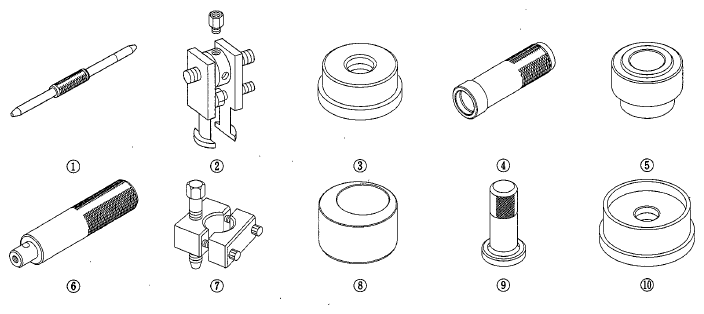

Fig 1: Identifying Special Tools
G07768124Courtesy of AMERICAN HONDA MOTOR CO., INC.
