Component Location Index

WARNING: This page is about a different variant/trim than selected.

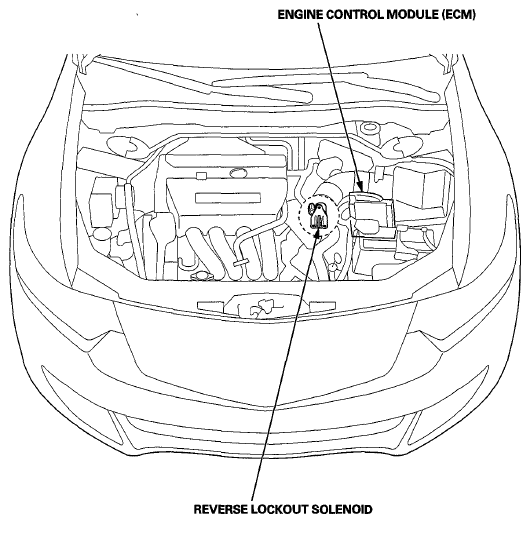

Fig 1: Identifying Reverse Lockout Solenoid And Engine Control Module
G07768125Courtesy of AMERICAN HONDA MOTOR CO., INC.

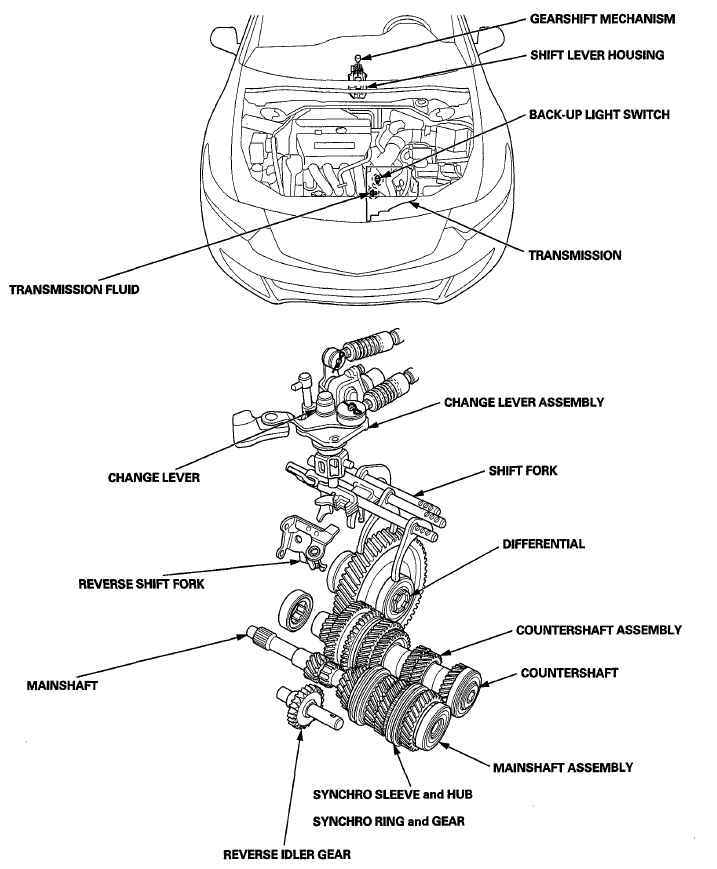

Fig 1: Identifying Transmission Component Location
G07768136Courtesy of AMERICAN HONDA MOTOR CO., INC.

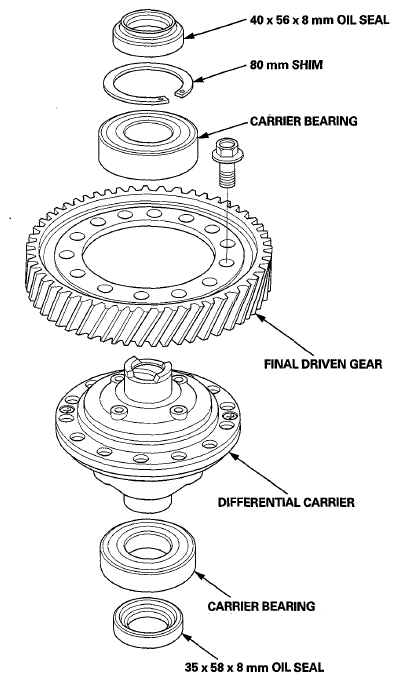

Fig 1: Exploded View Of M/T Differential
G07768325Courtesy of AMERICAN HONDA MOTOR CO., INC.
