Change Lever Assembly Disassembly/Reassembly

WARNING: This page is about a different variant/trim than selected.

NOTE:

Install the component within 5 minutes of applying liquid gasket.
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
Prior to reassembling, clean all parts in solvent, dry them, and apply grease to contact surfaces as shown. Do not wash the rubber parts with solvent.

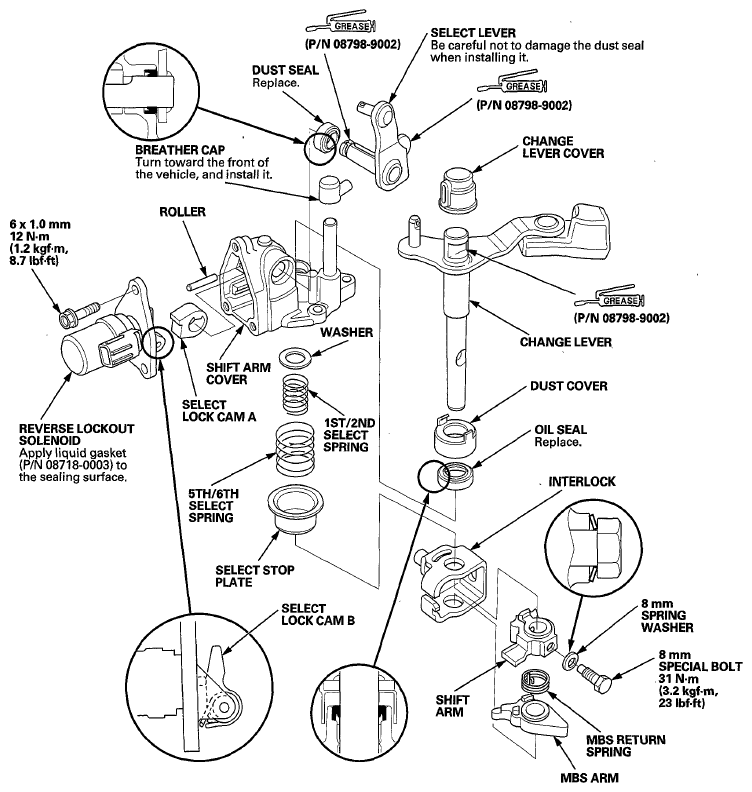

Fig 1: Exploded View Of Change Lever Assembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
