Air Cleaner Removal/Installation

  1. Disconnect the MAF sensor/IAT sensor connector (A).

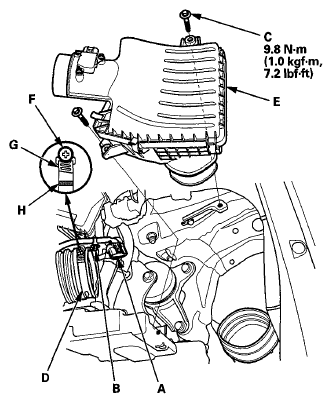

    Fig 1: MAF Sensor/IAT Sensor Connector, Harness Clamp, Bolts, Air Cleaner Housing And Band With Torque Specifications
    G07767994Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the harness clamp (B) and bolts (C).
  3. Loosen the band (D), then remove the air cleaner housing (E).
  4. Install the parts in the reverse order of removal.
NOTE: When tightening the screw of the hose band (F), align the edge of the hose band (G) with the mark (H) painted on it.
