Fan Motor Test

  1. Disconnect the 2P connectors from the radiator fan motor (A) and the A/C condenser fan motor (B).

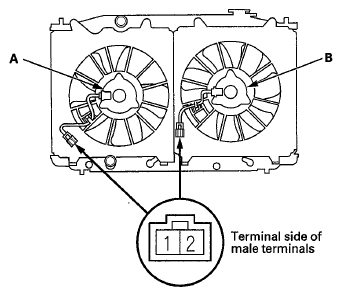

    Fig 1: Identifying Fan Motor 2P Connectors Terminals
    G07767225Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test the motor by connecting battery power to terminal No. 2 and ground to terminal No. 1.
  3. If the motor fails to run or does not run smoothly, replace it (see CONNECTING PIPE REPLACEMENT ).
