Fuse to Components Index

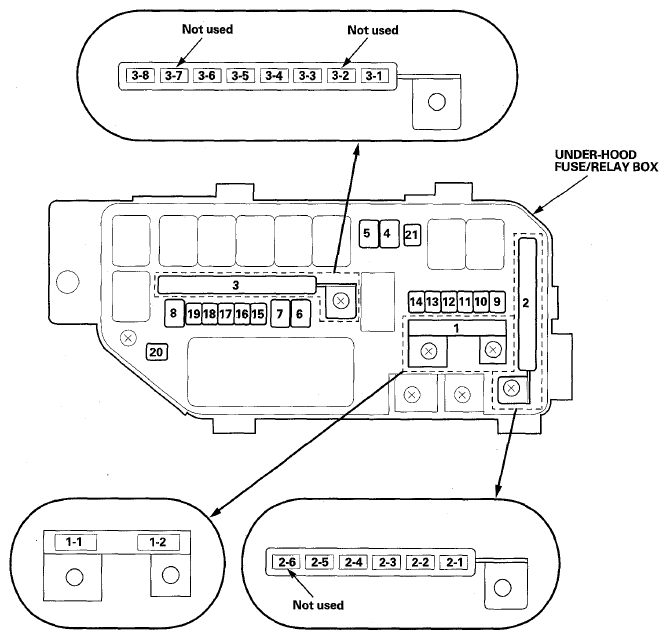

Under-Hood Fuse/Relay Box
FUSE NUMBER REFERENCE
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1-1 | MAIN | 100 A | Battery, Power supply | ||||||||
| 1-2 | AS F/B STD | 40 A | No. 8, No. 9, No. 10, No. 11, No. 12, and No. 13 fuses in the passenger's under-dash fuse/relay box | |||||||||
| 2 | 2-1 | EPS | 70 A | EPS control unit | ||||||||
| 2-2 | AS F/B OP | 40 A | No. 14, No. 15, No. 16, No. 18, and No. 19 fuses in the passenger's under-dash fuse/relay box | |||||||||
| 2-3 | VSA FSR | 30 A | VSA modulator-control unit (FSR+B) | |||||||||
| 2-4 | PTG MTR | 40 A | Power tailgate control unit(4) | |||||||||
| 2-5 | VSA MTR | 30 A | VSA modulator-control unit (MR+B) | |||||||||
| 2-6 | 30 A | Not used | ||||||||||
| 3 | 3-1 | IG MAIN | 50 A | Ignition switch | ||||||||
| 3-2 | 40 A | Not used | ||||||||||
| 3-3 | AS LT MAIN | 30 A | No. 1, No. 2, No. 3, No. 4, and No. 5 fuses in the passenger's under-dash fuse/relay box | |||||||||
| 3-4 | DR F/B | 60 A | No. 19, No. 20, No. 21, No. 22, No. 23, No. 24, and No. 25 fuses in the driver's under-dash fuse/relay box | |||||||||
| 3-5 | DR LT MAIN | 30 A | No. 26, No. 27, No. 28, No. 29, and No. 30 fuses in the driver's under-dash fuse/relay box | |||||||||
| 3-6 | MAIN FAN MTR | 30 A | Radiator fan motor (via radiator fan relay) | |||||||||
| 3-7 | - | 30 A | Not used | |||||||||
| 3-8 | WIP MTR | 30 A | Wiper motor relay circuit, Wiper motor intermittent relay circuit and Wiper motor HI/LOW relay circuit in the relay circuit board (via wiper motor relay circuit in the relay circuit board), Windshield wiper motor (via wiper motor relay circuit, wiper motor intermittent relay circuit, and wiper HI/LOW relay circuit in the relay circuit board) | |||||||||
| 4 | 40 A | Condensers, (via rear window defogger relay), Rear window defogger (via rear window defogger relay) | ||||||||||
| 5 | 20 A | A/C condenser fan motor (via A/C condenser fan relay circuit in the relay circuit board) | ||||||||||
| 6 | - | Not used | ||||||||||
| 7 | 20 A | Power tailgate control unit(4) | ||||||||||
| 8 | 40 A | Blower motor (via blower motor relay) | ||||||||||
| 9 | 15A | Driver's MICU (+ B HAZARD), Driver's MICU (HAZARD SW) (via hazard warning switch) | ||||||||||
| 10 | 10A | Driver's under-dash fuse/relay box, Horn relay, Horns (via horn relay) | ||||||||||
| 11 | - | Not used | ||||||||||
| 12 | 15A | ECM/PCM (BK SW) (via brake pedal position switch) | ||||||||||
| 13 | 15A | Ignition coil relay, Ignition coils (via Ignition coil relay) | ||||||||||
| 14 | 15A | A/F sensor (sensor 1) (via PGM-FI subrelay), EVAP canister vent shut valve (via PGM-FI subrelay), No. 21 fuse in the under-hood fuse/relay box (via PGM-FI subrelay), PGM-FI subrelay | ||||||||||
| 15 | 10A | AcuraLink control unit (XM receiver)(3). Audio-navigation switch panel(1), Audio unit(2), Audio-HVAC display unit(2), Audio-navigation unit(1). Data link connector (DLC), Driver's door courtesy light, Driver's MICU (VBU), Front passenger's door courtesy light. Gauge control module, HandsFreeLink control unit, HFL-navigation microphone(1), Immobilizer-keyless control unit, Navigation display unit(1), Passenger's MICU (VBU), Power tailgate control unit(4), Power window master switch. Power seat control unit | ||||||||||
| 16 | 7.5 A | Ceiling light, Front individual map light. Ignition key light, Inside tailgate switch(4), Left rear door courtesy light, Right rear door courtesy light. Trunk light, Vanity mirror lights | ||||||||||
| 17 | 15A | CKP sensor (via PGM-FI main relay 1), CMP sensor B (via PGM-FI main relay 1), ECM/PCM (IGP) (via PGM-FI main relay 1), Electronic throttle control system (ETCS) control relay (via PGM-FI main relay 1), Injectors (via PGM-FI main relay 1), MAF sensor (via PGM-FI main relay 1), PGM-FI main relay 1, PGM-FI main relay 2 (via PGM-FI main relay 1) | ||||||||||
| 18 | 15A | ECM/PCM (VBETCS) (via ETCS control relay) | ||||||||||
| 19 | - | Not used | ||||||||||
| 20 | 7.5 A | A/C compressor clutch (via A/C compressor clutch relay) | ||||||||||
| 21 | 7.5 A | A/C condenser fan relay circuit in the relay circuit board | ||||||||||
|
||||||||||||

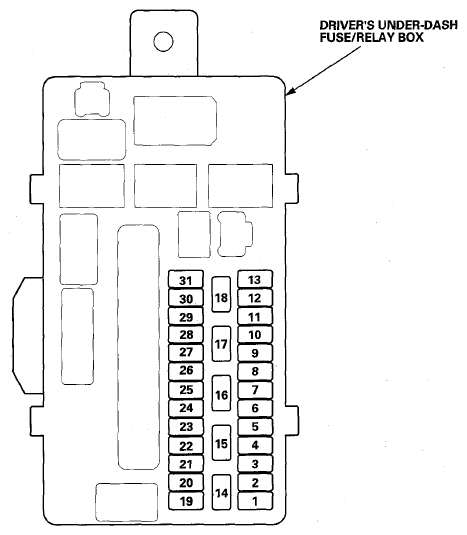

Driver's Under-Dash Fuse/Relay Box
FUSE NUMBER REFERENCE
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | - | Not used | ||||||||||||||||||
| 2 | 7.5 A | Power seat control unit(1) | ||||||||||||||||||
| 3 | 15A | Windshield washer motor (via washer motor relay circuit in the passenger's under-dash fuse/relay box), Washer motor relay circuit in the passenger's under-dash fuse/relay box | ||||||||||||||||||
| 4 | 10A | Wiper motor relay circuit in the relay circuit board (in the under-hood fuse/relay box) | ||||||||||||||||||
| 5 | 7.5 A | AcuraLink control unit (XM receiver)(2). Automatic dimming inside mirror, Automatic dimming inside mirror (via back-up light switch(3)/reverse relay circuit(4)), Back-up lights (via back-up light switch(3)/reverse relay circuit(4)), Driver's MICU (IG1) (via back-up light switch(3)/reverse relay circuit(4)), Electrical compass unit(6), Gauge control module, Passenger's MICU (IG1), Power tailgate control unit(8). Reverse relay circuit(4), Shift lock solenoid(4), TPMS control unit | ||||||||||||||||||
| 6 | 7.5 A | EPS control unit, VSA modulator-control unit (IG1), Yaw rate-lateral acceleration sensor | ||||||||||||||||||
| 7 | 15A | Alternator, CMP sensor A, ECM/PCM (BKSWNC) (via brake pedal position switch), Electrical load detector (ELD), Engine mount control solenoid valve, EVAP canister purge valve, Reverse lockout solenoid valve(3). Secondary HO2S | ||||||||||||||||||
| 8 | 7.5 A | Not used | ||||||||||||||||||
| 9 | 20 A | ECM/PCM (IG1), Fuel pump (via PGM-FI main relay 2), Immobilizer-keyless control unit | ||||||||||||||||||
| 10 | 10A | PCM (VBSOL)(4) | ||||||||||||||||||
| 11 | 10A | SRS unit | ||||||||||||||||||
| 12 | 7.5 A | Passenger's airbag cutoff indicator, ODS unit, SRS unit | ||||||||||||||||||
| 13 | - | Not used | ||||||||||||||||||
| 14 | - | Not used | ||||||||||||||||||
| 15 | 7.5 A | Driver's MICU (daytime running light) | ||||||||||||||||||
| 16 | 7.5 A | A/C compressor clutch relay, Audio-HVAC display unit(6), Audio-navigation switch panel(5). Blower motor relay, Climate control unit, Door multiplex control unit (Power window master switch), Driver's seat heater switch. Fan control relay circuit in the relay circuit board, Front passenger's seat heater switch. Power mirror switch, Radiator fan relay, Rear window defogger relay | ||||||||||||||||||
| 17 | 7.5 A | Driver's MICU (ACC KEY LOCK) | ||||||||||||||||||
| 18 | 7.5 A | AcuraLink control unit (XM receiver)(2), Audio unit(6), Audio-navigation unit(5), Cargo area accessory power socket relay(9), Console accessory power socket relay, Front accessory power socket relay, HandsFreeLink control unit, Interface dial(5), HFL-navigation microphone(5), Key interlock solenoid(4), Navigation display unit(5) | ||||||||||||||||||
| 19 | 20 A | Driver's seat front up-down motor (via driver's power seat adjustment switch)(7), Power seat control unit(1). Driver's seat slide motor (via driver's power seat adjustment switch)(7) | ||||||||||||||||||
| 20 | 20 A | Moonroof control unit/motor | ||||||||||||||||||
| 21 | 20 A | Driver's seat rear up-down motor (via driver's power seat adjustment switch)(7), Power seat control unit(1), Driver's seat recline motor (via driver's power seat adjustment switch)(7) | ||||||||||||||||||
| 22 | 20 A | Left rear power window relay circuit, Left rear power window switch (via left rear power window relay circuit) | ||||||||||||||||||
| 23 | 20 A | Front accessory power socket (via front accessory power socket relay) | ||||||||||||||||||
| 24 | 20 A | Power window master switch (Door multiplex control unit) | ||||||||||||||||||
| 25 | 15A | Driver's door lock actuator (via power door lock relay circuit (LOCK)), Fuel fill door lock actuator (via power door lock relay circuit (DR UNLOCK)), Left rear door lock actuator (via power door lock relay circuit (UNLOCK)), Power door lock relay circuit (DR UNLOCK), Power door lock relay circuit (LOCK), Power door lock relay circuit (UNLOCK), Trunk lid release actuator (via trunk lid release actuator relay circuit), Trunk lid release actuator relay circuit | ||||||||||||||||||
| 26 | 10A | Driver's MICU (+ B FR FOG L), Fog light relay circuit, Left fog light (via fog light relay circuit) | ||||||||||||||||||
| 27 | 10A | Driver's MICU (+ B PARKING LIGHT DR), Left front parking/side marker light (via taillight relay circuit), Left taillight (via taillight relay circuit), License plate lights (via taillight relay circuit), Rear side marker lights, Right taillight (via taillight relay circuit), Taillight relay circuit(9) | ||||||||||||||||||
| 28 | 10A | Driver's MICU (H/L-HI L) | ||||||||||||||||||
| 29 | 10A | TPMS control unit | ||||||||||||||||||
| 30 | 15A | Driver's MICU (H/L-LO L) | ||||||||||||||||||
| 31 | - | Not used | ||||||||||||||||||
|
||||||||||||||||||||
Passenger's Under-Dash Fuse/Relay Box
FUSE NUMBER REFERENCE
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 10A | Passenger's MICU (H/L-HI R) | ||||||
| 2 | 10A | Passenger's MICU (+B PARKING LIGHT AS), Right front parking/side marker light (via taillight relay circuit) | ||||||
| 3 | 10A | Passenger's MICU (+ B FR FOG R), Fog light relay circuit, Right fog light (via fog light relay circuit) | ||||||
| 4 | 15A | Passenger's MICU (H/L-LO R) | ||||||
| 5 | - | Not used | ||||||
| 6 | 7.5 A | A/T gear position indicator panel light (A/T), Ambient light, Audio-navigation switch panel(1), Audio-navigation unit(1), Audio-HVAC display unit(2), Audio remote switch, Audio unit(2). Center pocket light, Climate control unit light, Driver's footwell light, Driver's seat heater switch light, Front passenger's airbag cutoff switch light, Front passenger's footwell light, Front passenger's seat heater switch light, Glove box light, Hazard warning switch light, HomeLink unit, Moonroof switch light, Navigation display unit(1). Steering wheel switch lights, VSA OFF switch light | ||||||
| 7 | - | Not used | ||||||
| 8 | 20 A | Front passenger's power recline seat motor (via front passenger's power seat adjustment switch) | ||||||
| 9 | 20 A | Front passenger's power slide seat motor (via front passenger's power seat adjustment switch) | ||||||
| 10 | 10A | Front passenger's door lock actuator (via power door lock relay circuit (LOCK) or (UNLOCK)), Power door lock relay circuit (LOCK), Power door lock relay circuit (UNLOCK), Right rear door lock actuator (via power door lock relay circuit (LOCK) or (UNLOCK)) | ||||||
| 11 | 20 A | Right rear power window relay circuit, Right rear power window switch (via right rear power window relay circuit), Right rear power window motor (via right rear power window relay circuit and right rear power window switch) | ||||||
| 12 | 20 A | Console accessory power socket (via console accessory power socket relay) | ||||||
| 13 | 20 A | Front passenger's power window switch | ||||||
| 14 | - | Not used | ||||||
| 15 | 20 A | Stereo amplifier, Subwoofer(3) | ||||||
| 16 | 20 A | Cargo area accessory power socket (via cargo area accessory power socket relay)(3) | ||||||
| 17 | - | Not used | ||||||
| 18 | 10A | Not used | ||||||
| 19 | 20 A | Driver's seat heater (via driver's seat heater relay), Front passenger's seat heater (via passenger's seat heater relay) | ||||||
| 20 | - | Not used | ||||||
| 21 | - | Not used | ||||||
| 22 | - | Not used | ||||||
|
||||||||
