Transmission Range Switch Subharness (A/T)

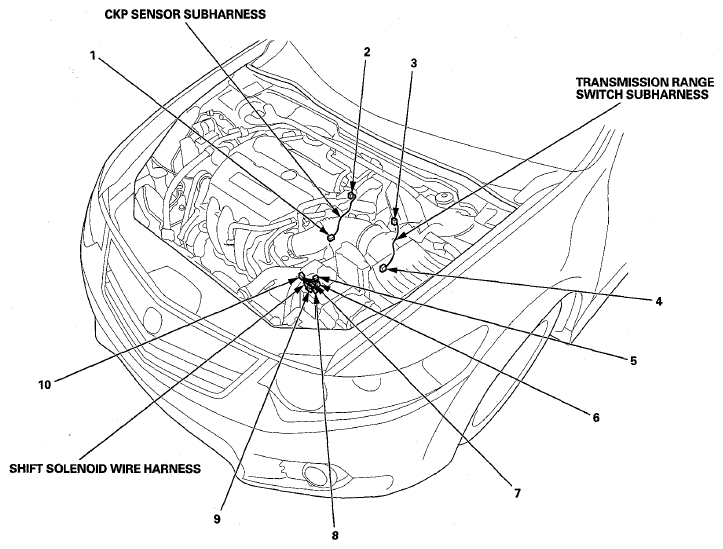

TRANSMISSION RANGE SWITCH SUBHARNESS (A/T) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Transmission range switch |
4 |
10 |
Left side of transmission |
|
|
| C107 |
3 |
10 |
Transmission housing |
Engine wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
