Transmission Ground Cable

TRANSMISSION GROUND CABLE - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
T2 5   Left side of engine compartment Transmission housing
G3 4   Left side of engine compartment Body ground, via transmission ground cable

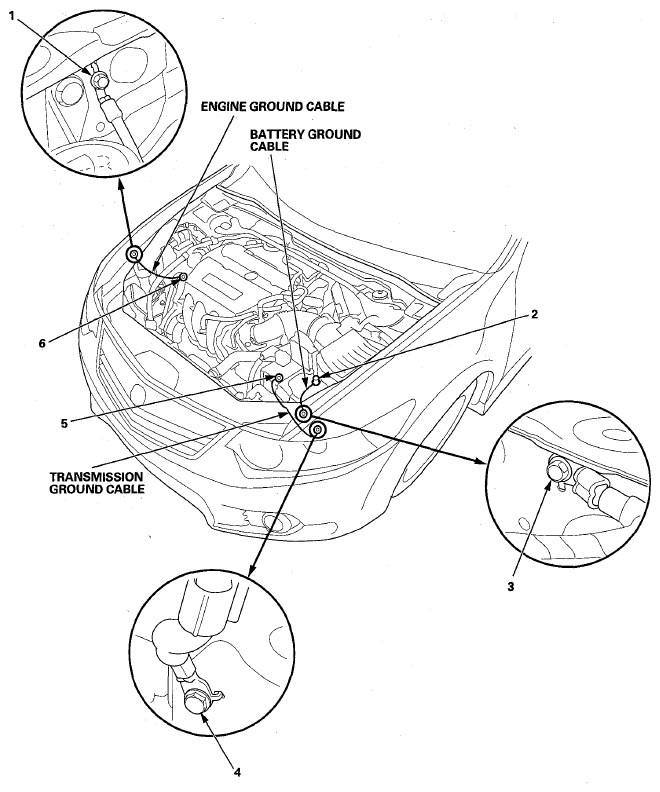

Fig 1: Identifying Transmission, Engine And Battery Ground Cable
G07769849Courtesy of AMERICAN HONDA MOTOR CO., INC.
