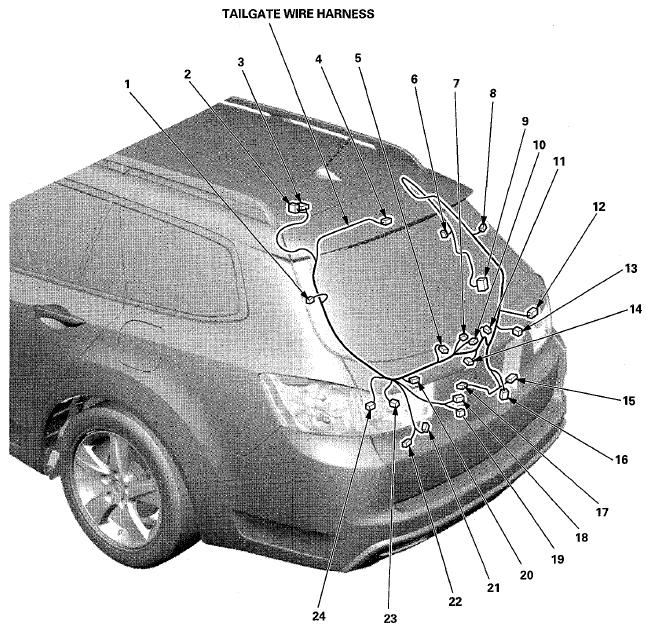

Tailgate Wire Harness (Sport Wagon)
TAILGATE WIRE HARNESS (SPORT WAGON) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| High mount brake light |
4 |
2 |
Center of tailgate |
|
|
| Left back-up light |
23 |
2 |
Left side of tailgate |
|
|
| Left inner taillight |
24 |
2 |
Left side of tailgate |
|
|
| Left license plate light |
5 |
2 |
Center of tailgate |
|
|
| Right satellite speaker |
6 |
2 |
Right D-pillar |
|
|
| Power tailgate closer motor |
17 |
2 |
Center of tailgate |
|
|
| Power tailgate closer unit/latch and ratchet switch |
21 |
6 |
Center of tailgate |
|
|
| Power tailgate left pinch sensor |
22 |
2 |
Left side of tailgate |
|
|
| Power tailgate inside switch |
16 |
5 |
Left side of tailgate |
|
|
| Power tailgate right pinch sensor |
15 |
2 |
Right side of tailgate |
|
|
| Rear window defogger connector A (+) |
1 |
1 |
Left side of tailgate |
|
|
| Rear window defogger connector B (-) |
8 |
1 |
Right side of tailgate |
|
|
| Rear window wiper motor |
7 |
4 |
Center of tailgate |
|
|
| Rearview camera |
14 |
6 |
Center of tailgate |
|
|
| Right back-up light |
13 |
2 |
Right side of tailgate |
|
|
| Right inner taillight |
12 |
2 |
Right side of tailgate |
|
|
| Right license plate light |
11 |
2 |
Center of tailgate |
|
|
| Tailgate latch switch |
19 |
2 |
Center of tailgate |
|
|
| Tailgate outer handle switch |
10 |
3 |
Center of tailgate |
|
|
| Tailgate release actuator |
18 |
2 |
Center of tailgate |
|
|
| C661 |
2 |
2 |
Left rear side of roof |
Rear wire harness (Sport Wagon) |
|
| C662 |
3 |
20 |
Left rear side of roof |
Rear wire harness (Sport Wagon) |
|
| C663 |
9 |
20 |
Right side of cargo area |
Rear wire harness (Sport Wagon) |
|
| C664 (junction connector) |
20 |
12 |
Right side of tailgate |
|
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
