SRS Floor Subharness (Sport Wagon)

SRS FLOOR SUBHARNESS (SPORT WAGON) - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
Right side curtain airbag inflator 15 2 Right C-pillar
C704 16 2 Right C-pillar SRS floor wire harness (Sport Wagon)
G751 14   Right C-pillar Body ground, via SRS floor subharness

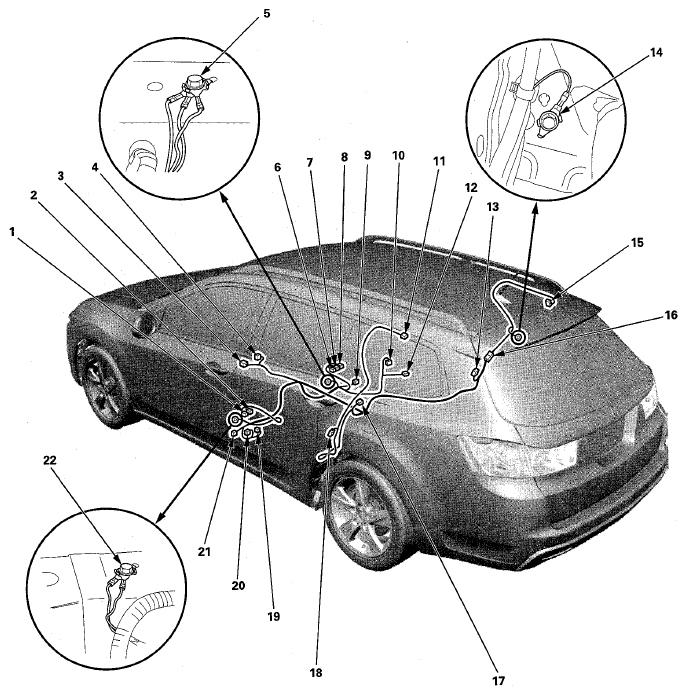

Fig 1: Identifying SRS Floor Wire Harness Location (Sport Wagon)
G07769869Courtesy of AMERICAN HONDA MOTOR CO., INC.
