Right Rear Door Wire Harness

RIGHT REAR DOOR WIRE HARNESS - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
Right rear door courtesy light 4 2 Right rear door
Right rear door lock actuator/knob switch 2 10 Right rear door
Right rear power window motor 3 2 Right rear door
Right rear power window switch 1 14 Right rear door
Right rear speaker 5 2 Right rear door   (1)
C781 6 18 Right B-pillar Right side wire harness
  • Sedan
  • Sport Wagon

(1) Sedan with navigation and Sport Wagon

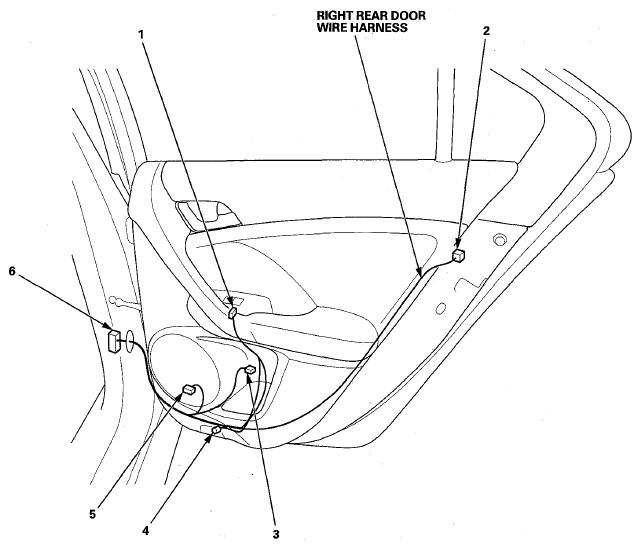

Fig 1: Identifying Right Rear Door Courtesy Wire Harness Location
G07769880Courtesy of AMERICAN HONDA MOTOR CO., INC.
