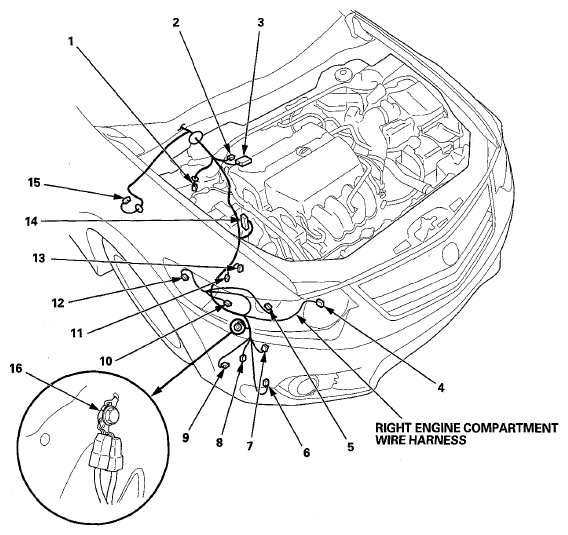

Right Engine Compartment Wire Harness (Engine Compartment Branch)
RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| A/C pressure sensor |
13 |
3 |
Right front of engine compartment |
|
|
| EPS motor |
2 |
3 |
Right rear of engine compartment |
|
|
| Motor angle sensor |
3 |
6 |
Right rear of engine compartment |
|
|
| Right fog light |
6 |
2 |
Behind right side of front bumper |
|
|
| Right front impact sensor |
7 |
2 |
Behind right side of front bumper |
|
|
| Right front parking/side marker/turn signal light |
12 |
3 |
Behind right headlight |
|
|
| Right front TPMS initiator |
15 |
3 |
Right front of fender well |
|
|
| Right front wheel speed sensor |
1 |
2 |
Right side of engine compartment |
|
|
| Right headlight (high) |
5 |
2 |
Behind right headlight |
|
|
| Right headlight (low) |
10 |
3 |
Behind right headlight |
|
|
| Right HID unit |
10 |
2 |
Behind right headlight |
|
|
| VSA modulator-control unit |
14 |
32 |
Right side of engine compartment |
|
|
| Washer fluid level switch |
9 |
2 |
Behind right side of front bumper |
|
|
| Windshield washer motor |
8 |
2 |
Right front of engine compartment |
|
|
| Windshield/Rear window washer motor |
8 |
2 |
Behind right side of front bumper |
|
|
| C201 |
4 |
2 |
Right front of engine compartment |
Left engine compartment wire harness (engine compartment branch) |
|
| G202 |
16 |
|
Behind right side of front bumper |
Body ground, via right engine compartment wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
