Rear Wire Harness (Sport Wagon)

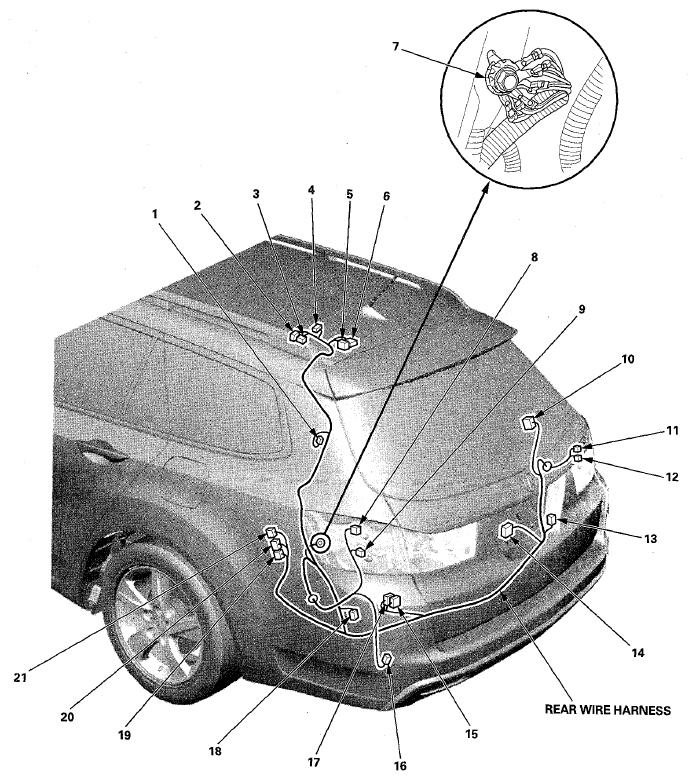

REAR WIRE HARNESS (SPORT WAGON) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Brake light diode 1 |
18 |
2 |
Left side of cargo area |
|
|
| Brake light diode 2 |
12 |
2 |
Right side of cargo area |
|
|
| Electrical compass unit |
4 |
6 |
Left rear side of roof |
|
|
| Left rear taillight/brake light |
8 |
3 |
Left side of cargo area |
|
|
| Left rear turn signal light |
9 |
2 |
Left side of cargo area |
|
|
| Left satellite speaker |
1 |
2 |
Left D-pillar |
|
|
| Power tailgate buzzer |
16 |
2 |
Behind left side of rear bumper |
|
|
| Power tailgate control unit connector A |
21 |
5 |
Left side of cargo area |
|
|
| Power tailgate control unit connector B |
20 |
20 |
Left side of cargo area |
|
|
| Power tailgate control unit connector C |
19 |
14 |
Left side of cargo area |
|
|
| Power tailgate drive unit connector A |
2 |
2 |
Left rear side of roof |
|
|
| Power tailgate drive unit connector B |
3 |
8 |
Left rear side of roof |
|
|
| Right rear taillight/brake light |
11 |
3 |
Right side of cargo area |
|
|
| Right rear turn signal light |
13 |
2 |
Right side of cargo area |
|
|
| C604 |
15 |
20 |
Left side of tailgate |
Left side wire harness (Sport Wagon) |
|
| C605 |
17 |
8 |
Left side of tailgate |
Left side wire harness (Sport Wagon) |
|
| C655 |
14 |
20 |
Right side of cargo area |
Right side wire harness (Sport Wagon) |
|
| C661 |
5 |
2 |
Left rear side of roof |
Tailgate wire harness (Sport Wagon) |
|
| C662 |
6 |
20 |
Left rear side of roof |
Tailgate wire harness (Sport Wagon) |
|
| C663 |
10 |
20 |
Right side of cargo area |
Tailgate wire harness (Sport Wagon) |
|
| G901 |
7 |
|
Left side of cargo area |
Body ground, via rear wire harness |
|
