Rear Wire Harness (Sedan)

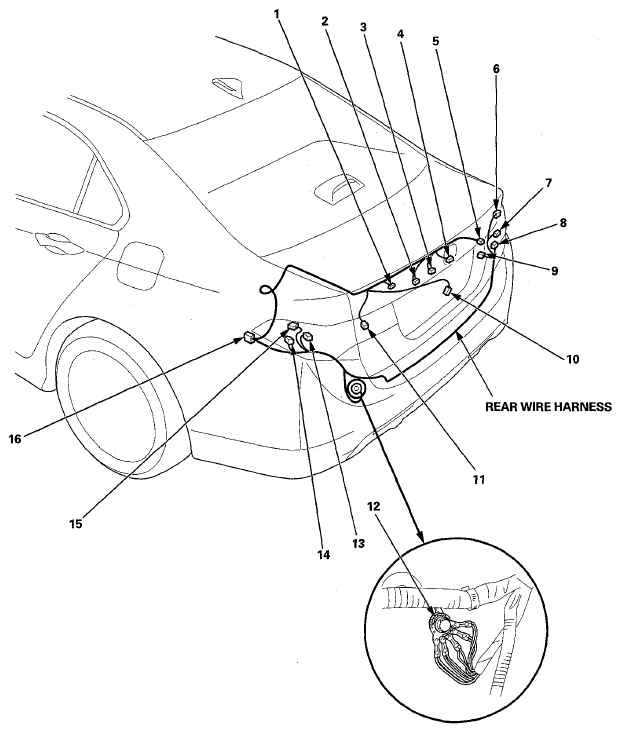

REAR WIRE HARNESS (SEDAN) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Left back-up light |
11 |
3 |
Left side of trunk |
|
|
| Left rear license light |
2 |
2 |
Middle of trunk |
|
|
| Left rear side marker light |
15 |
2 |
Left side of trunk |
|
|
| Left rear taillight/brake light |
13 |
4 |
Left side of trunk |
|
|
| Left rear turn signal light |
14 |
3 |
Left side of trunk |
|
|
| Rearview camera |
1 |
6 |
Middle of trunk |
|
|
| Right back-up light |
5 |
3 |
Right side of trunk |
|
|
| Right rear license light |
4 |
2 |
Middle of trunk |
|
|
| Right rear side marker light |
6 |
2 |
Right side of trunk |
|
|
| Right rear taillight/brake light |
8 |
4 |
Right side of trunk |
|
|
| Right rear turn signal light |
7 |
3 |
Right side of trunk |
|
|
| Trunk lid outer handle switch |
3 |
3 |
Middle of trunk |
|
|
| Trunk lid release actuator/Trunk lid latch switch |
10 |
3 |
Middle of trunk |
|
|
| C604 |
16 |
20 |
Left side of rear |
Left side wire harness (Sedan) |
|
| C655 |
9 |
6 |
Right side of rear |
Right side wire harness (Sedan) |
|
| G901 |
12 |
|
Left side of rear |
Body ground, via rear wire harness |
|
