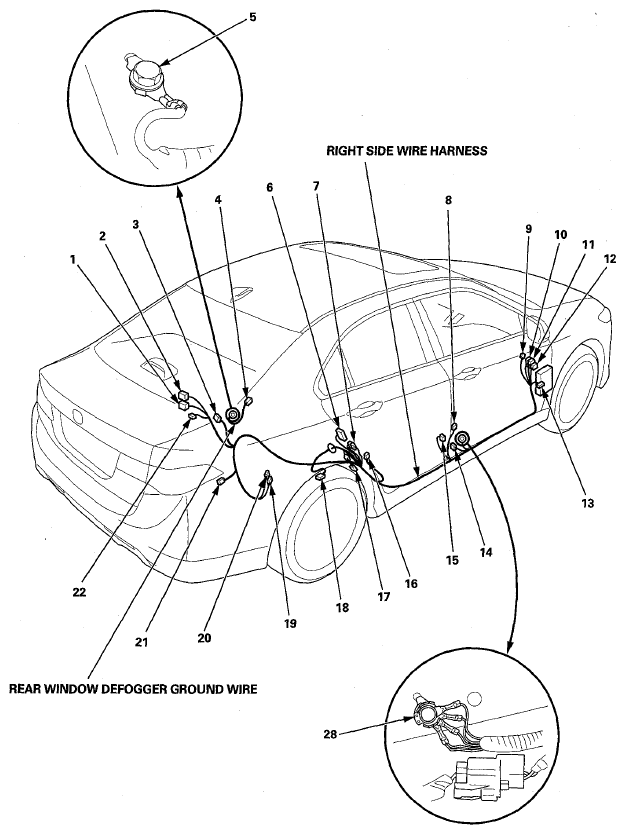

Rear Window Defogger Ground Wire (Sedan)
REAR WINDOW DEFOGGER GROUND WIRE (SEDAN) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Rear window defogger connector B (-) |
4 |
1 |
Right C-pillar |
|
|
| G801 |
5 |
|
Right C-pillar |
Body ground, via rear window defogger ground |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
