ODS Unit Harness

ODS UNIT HARNESS - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
Front passenger's seat weight sensor (inner side) 2 2 Front passenger's seat
Front passenger's seat weight sensor (outer side) 4 3 Front passenger's seat
ODS unit 1 18 Front passenger's seat
C703 3 4 Under front passenger's seat SRS floor wire harness
  • Sedan
  • Sport Wagon

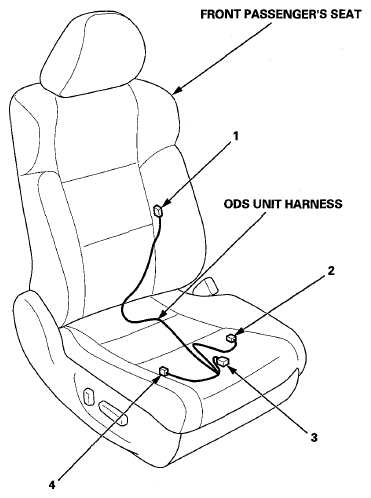

Fig 1: Identifying ODS Unit Harness Location
G07769884Courtesy of AMERICAN HONDA MOTOR CO., INC.
