Moonroof Subharness (Sport Wagon)

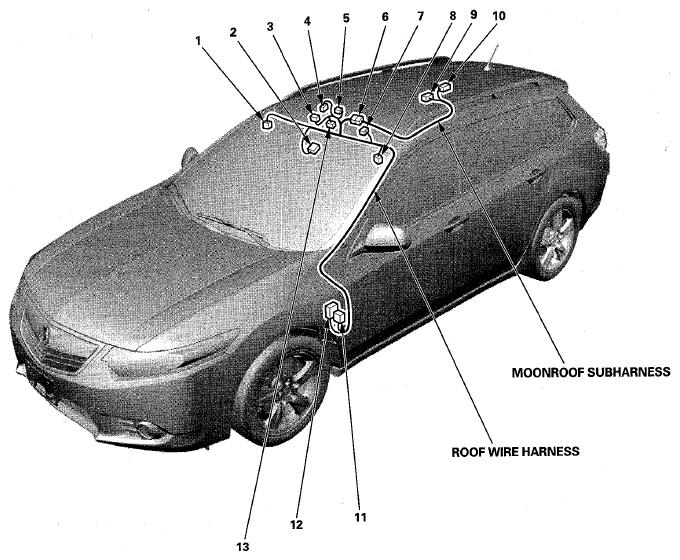

MOONROOF SUBHARNESS (SPORT WAGON) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Ceiling light |
10 |
3 |
Rear of roof |
|
|
| Moonroof control unit/motor |
9 |
14 |
Rear of roof |
|
|
| C551 |
6 |
13 |
Middle of roof |
Roof wire harness (Sport Wagon) |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
