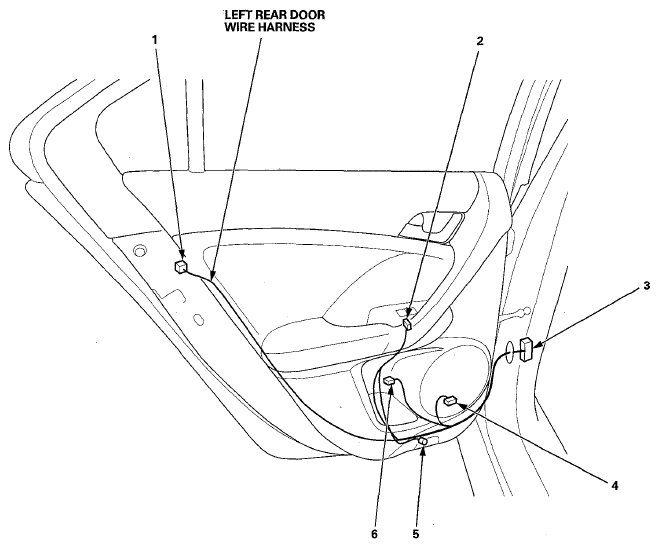

Left Rear Door Wire Harness
LEFT REAR DOOR WIRE HARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||
|---|---|---|---|---|---|---|---|
| Left rear door courtesy light | 5 | 2 | Left rear door | ||||
| Left rear door lock actuator/knob switch | 1 | 10 | Left rear door | ||||
| Left rear power window motor | 6 | 2 | Left rear door | ||||
| Left rear power window switch | 2 | 14 | Left rear door | ||||
| Left rear speaker | 4 | 2 | Left rear door | (1) | |||
| C771 | 3 | 18 | Left B-pillar | Left side wire harness
|
|||
|
|||||||
