Front Passenger's Seat Wire Harness

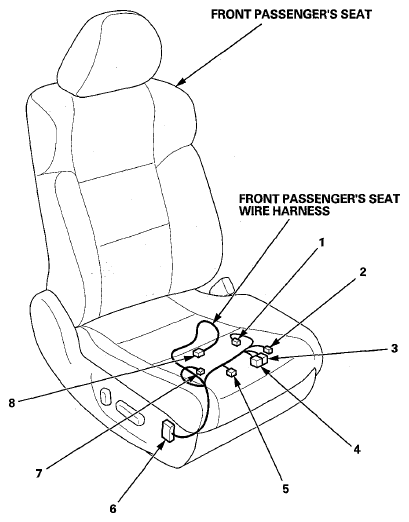

FRONT PASSENGER'S SEAT WIRE HARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Front passenger's seat adjustment switch | 6 | 12 | Front passenger's seat | ||
| Front passenger's seat belt buckle switch | 2 | 2 | Front passenger's seat | ||
| Front passenger's seat cushion heater | 1 | 4 | Front passenger's seat | ||
| Front passenger's seat heater relay (high) | 4 | 4 | Front passenger's seat | ||
| Front passenger's seat heater relay (low) | 3 | 5 | Front passenger's seat | ||
| Front passenger's seat recline motor | 7 | 2 | Front passenger's seat | ||
| Front passenger's seat slide motor | 8 | 5 | Front passenger's seat | ||
| C702 | 5 | 18 | Under front passenger's seat | SRS floor wire harness
|
