Front Passenger's Door Courtesy Light Subharness

FRONT PASSENGER'S DOOR COURTESY LIGHT SUBHARNESS - CONNECTOR TO HARNESS INDEX

Connector or Terminal	Ref	Cavities	Location	Connects to	Notes
Front passenger's door courtesy light	6	2	Front passenger's door
C762	5	2	Front passenger's door	Front passenger's door wire harness

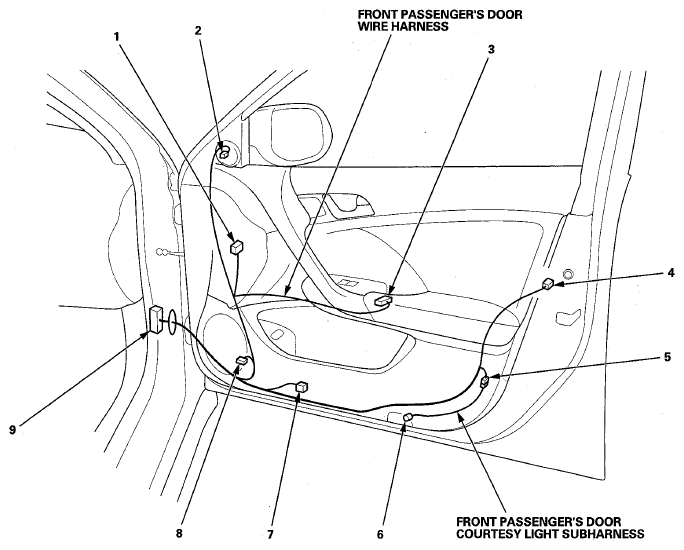

Fig 1: Identifying Front Passenger's Door Wire Harness Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
